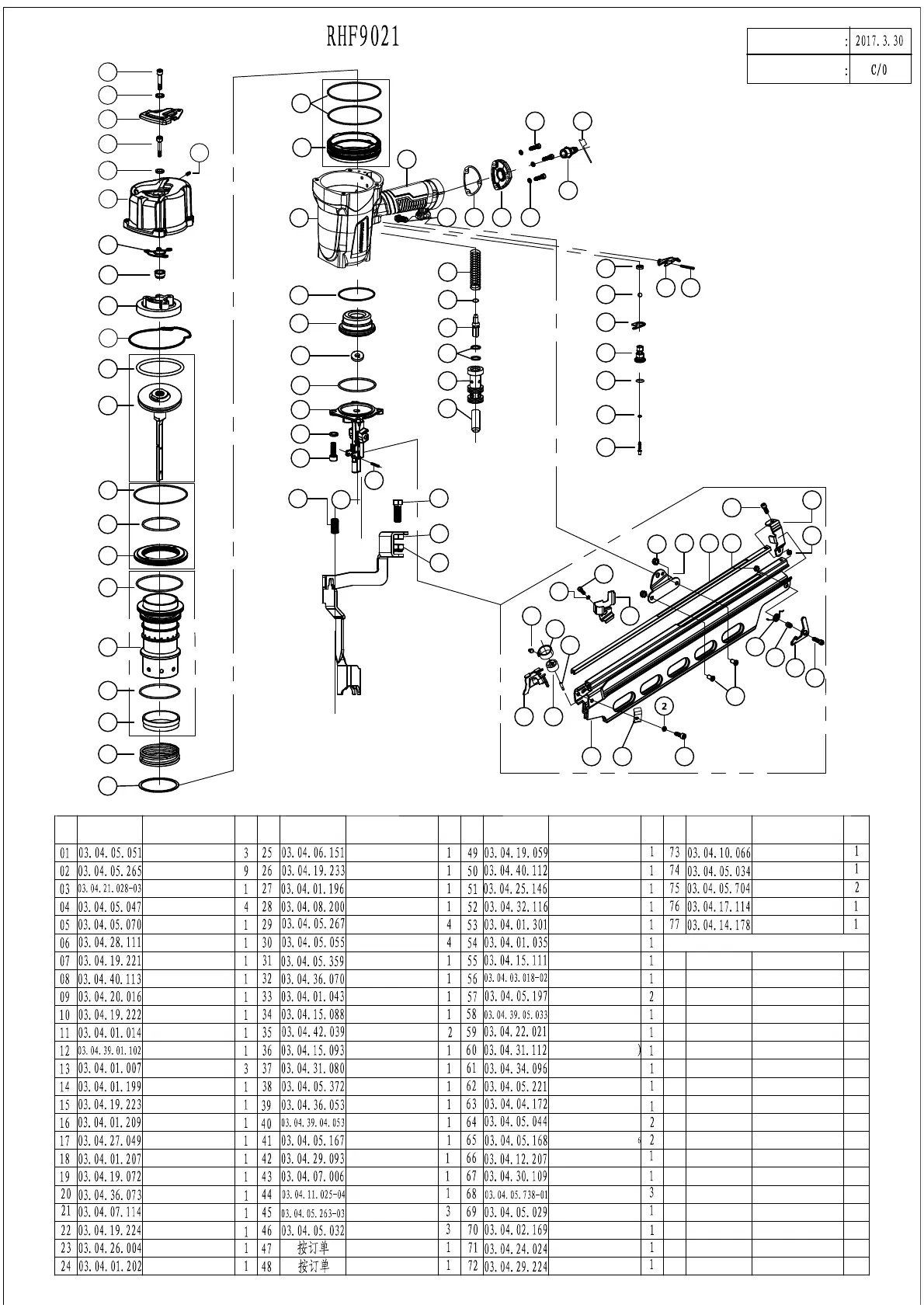

Aeropro RHF9021 - Explosive View and Parts List

1
3
4
2
6
7
8
9
11
12
5
13
14
15
13
18
16
17
10
22
24
25
39
34
42
44
46
47
48
43
41
56
57
26
28
58 59
61
60
62
2
31
65
66 67 68
68
69
70
71
75
76
64
63
2
29
30
45
77
32
33
34
35
36
37
72
73
74
50
51
52
53
54
49
55
64
23
19
20
21
27
38
40
68
Bolt M6*45
Spring washer 6
Exhaust cover
Bolt M6*25
Bolt M5x10
Cylinder cover
Balance valve washer
Seal plug
Balance valve assembly
Cylinder sealing washer
O-ring 50x3.55
Piston assembly
O-ring 92.5x2
O-ring 62.8x2.65
Upper locking ring
O-ring 79.3x2.5
Cylinder
O-ring 69.3x2.5
Sealing washer
Cylinder compressed spring
Spring washer
Under locking ring
Gun body
O-ring 63.6*2.5
Bumper
Sealing washer
O-ring 62x1.8
Drive guide
Spring washer
Bolt M8*25
Pin
Compressed spring
O-ring 4.5*1.8
Mandril
O-ring 11.2x1.85
Valve rod
Pin
Bolt M5*16
Safety yoke compressed spring
Safety yoke assembly
Bolt M8x16
Handle sheath
Washer
End cap
Spring washer
Bolt M5*20
3/8"screwed connector
Connector sheath
Switch washer
Urethane Ball
Fixed piece
Switch seat
O-ring 11.8x1.5
O-ring 2.8x1.8
Switch rod
Trigger
Pin 3*30
Pusher rod
Spring core
Pin
Scroll spring
Pin 4x20
Magazine protected block
Bolt M6*18
Nut M6
Fixed seat
Nail guide strip
Nut M5
Bolt M5*14
Spacer
Torsional spring
Pin sleeve
Locating stem
Bolt M5*25
Bolt M6x14
Fixed block
Magazine
