Aerospool WT-9 Dynamic - Page 2

MANUFACTURER
RECOMMENDATION
DV WT9 10B / 2019, Rev. 0
Sheet:
Sheets:
2
10

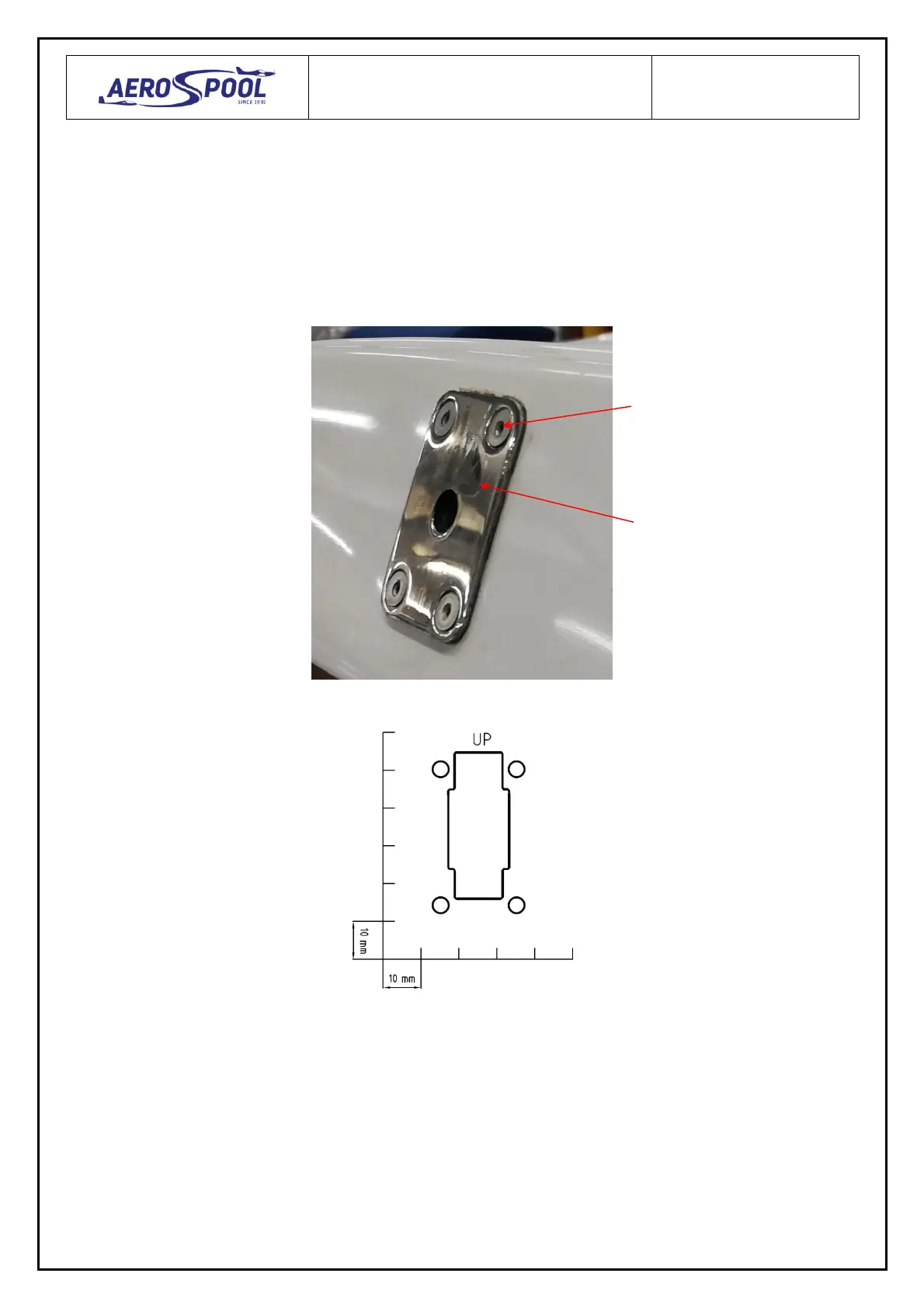

1. Removing of original canopy lock socket and enlarging of installation hole.
1.1. Drill out the rivets (1, Fig. 1) and remove original canopy lock socket (2) from the fuselage.
1.2. Place the template (Fig. 2) for installation hole enlarging on the fuselage and align with the rivet
holes (template in the scale 1:1 is in the Appendix 1, „UP“ symbol marks upper side of template).
Enlarge the hole in the fuselage for installation of new canopy lock socket according to template.
It is necessary to chamfer the sharp corners min. R = 0.5 mm!
Fig. 1
Fig. 2
1
2
