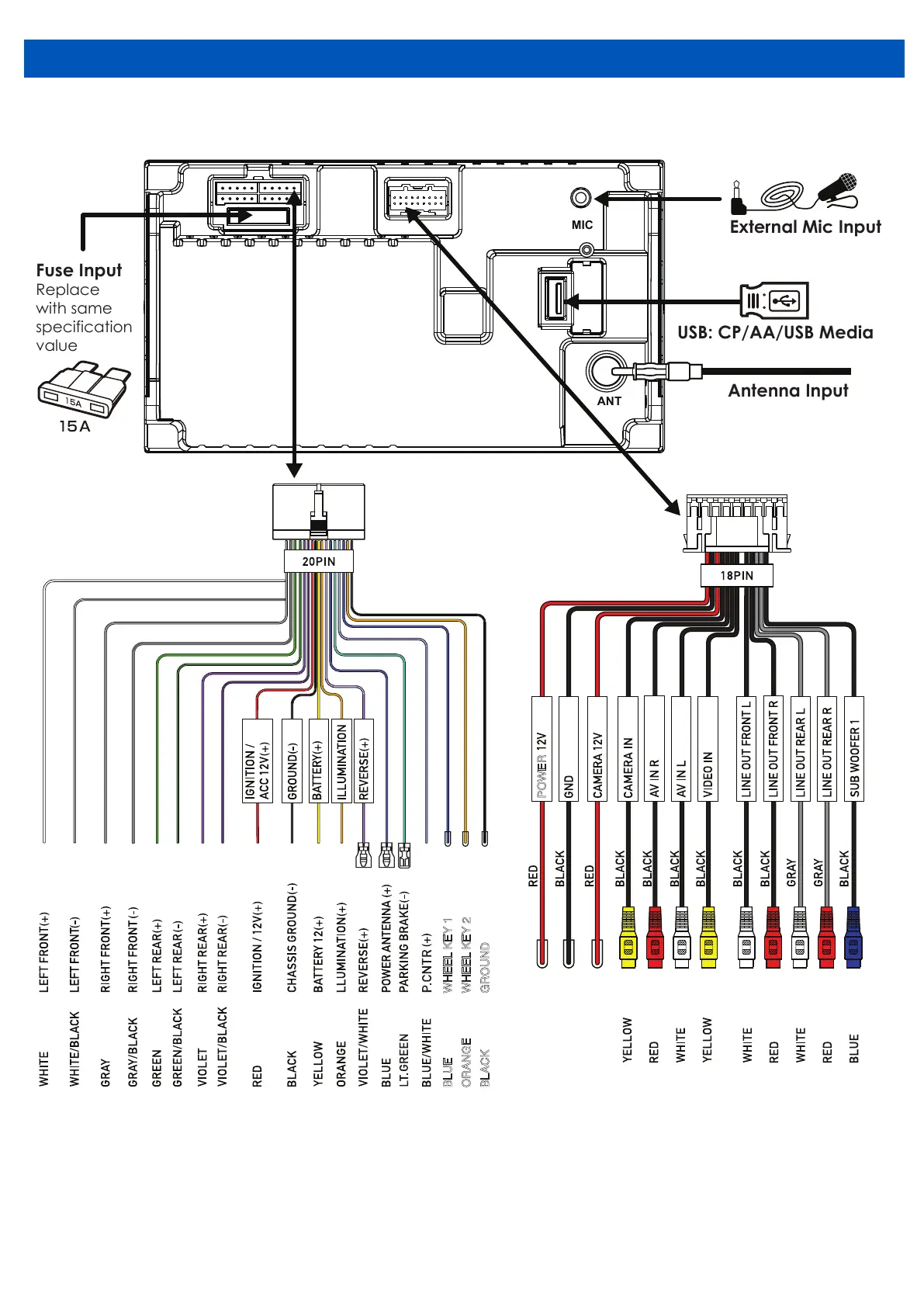

GENERAL WIRING DIAGRAM
GENERAL WIRING DIAGRAM
NOTE: This diagram shows a basic wiring configuration.
For your safety be sure to connect the park brake wire.
Some vehicles will not have a park brake output from the vehicle.
MIC
ANT
Head unit
USB: CP/AA/USB Media
WHEEL KEY 1 WHEEL KEY 2 GROUND
POWER
BLUE ORANGE BLACK
Antenna Input
External Mic Input
Fuse Input
Replace
with same
specification
value
ISO Wiring Harness Audio-Video Lead
