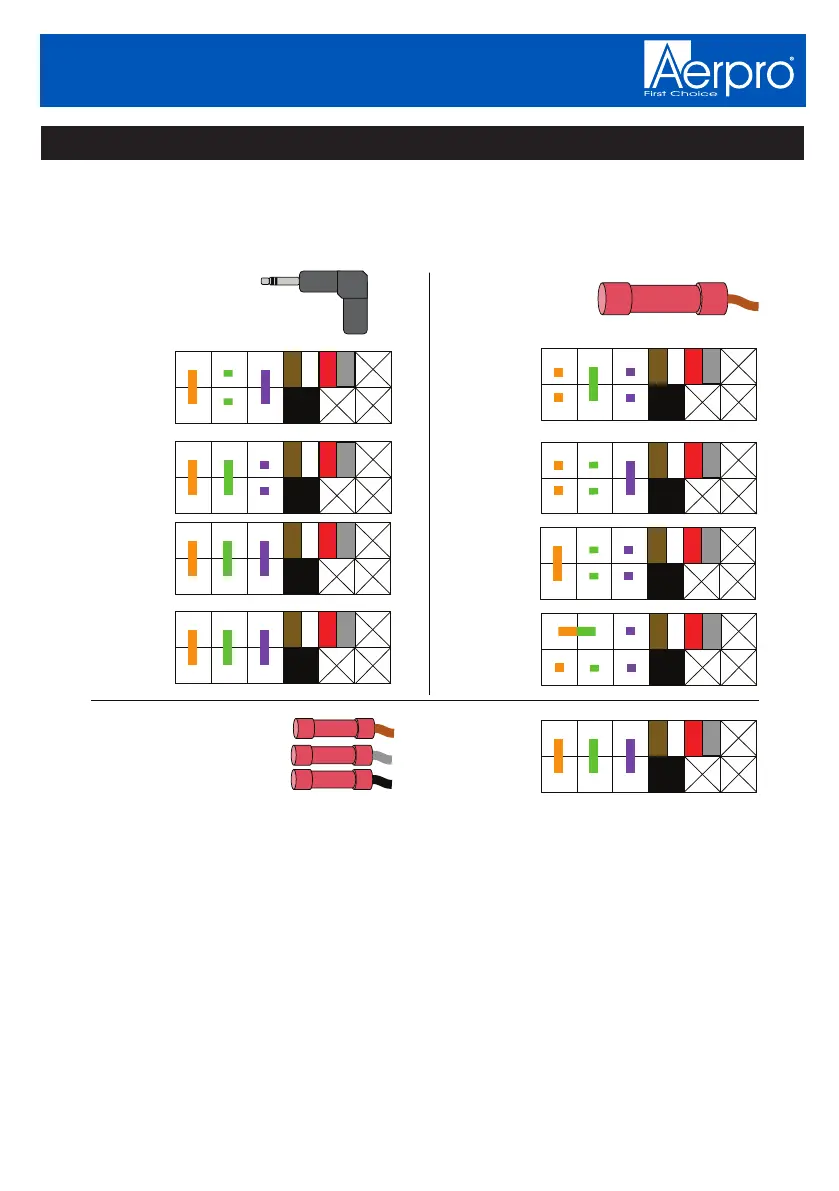

SWC Patch Harness Configuration
For best results or to reset the control module with a new brand, please make
modifications to the patch lead first, before connecting to the steering wheel control
module and before powering the module up.
2-31
ALPINE
Cut Green Link
JVC
Cut Green &
Purple Link
CLARION
Cut Purple Link
PIONEER
No cutting
required
Philips,
Nakamichi
Cut Orange &
Purple Wire
Kenwood
Cut Orange &
Green Wire
Zenec
Cut all 3 wires,
solder Orange
and Green
together as
shown
Use 3.5mm Jack for
these Head-units
Use Key 1 Bullet
terminal for these
Head-units
Use KEY 1, KEY 2 and GND
Bullet terminals for Self Learn
Head-units
Self Learn
Head-units
No cutting
required
SONY
No cutting
required
To Next Page
