SIM ORIENTATION
ALWAYS ensure the system is switched
OFF when adding or removing your SIM
card and ensure the orientation is correct.
CONNECTION TO NETWORK
Quick Flashing = Standby | Constant ON/OFF = Searching
MODEM LED
INDICATOR

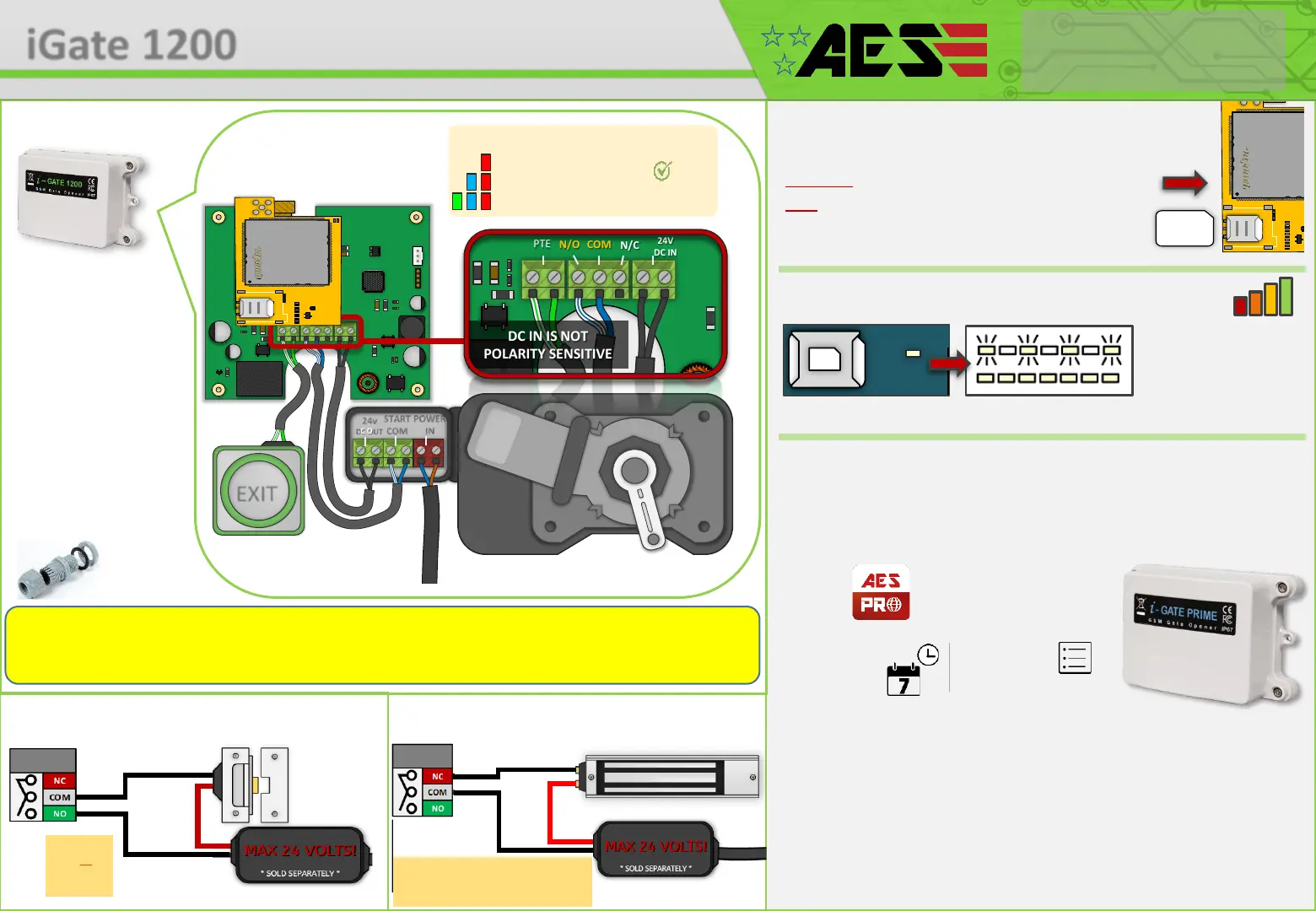

Wiring Connections
PCB Status LEDs
SOLID RED = PCB POWERED ON
SOLID RED +BLUE FLASHING = SEARCHING
SOLID RED + BLUE FLASHING + GREEN FLASHING = SUCCESSFULLY CONNECTED
Note: The supplied enclosure is fully sealed. You will need to drill a hole in the wall of the enclosure
then secure each half of the supplied cable gland into place to ensure the waterproof seal in intact.
(ensure you do not drill the hole larger than the gland supplied)
ALTERNATIVE WIRING EXAMPLE
ALTERNATIVE WIRING EXAMPLE
Relay
STRIKE
LOCK
Relay
SECONDARY
MAGNETIC LOCK
LOCK POWER
SUPPLIES
ARE NOT
INCLUDED AS
PART OF THE
KIT.
These diagrams are provided for
guidance only. Please refer to the lock
wiring instructions before connecting.
2
Did you know AES Global also have an advanced GSM switch available the
i-Gate Prime. Control 2 entrances and setup automatic times and lots more!
For more information about i-Gate Prime visit our website.
AES PRO app due to
release late 2021!
i-Gate Prime
Activity log
feature.
Includes 7 day
time clock
― GSM gate opener with IOS & Android apps.
― Stores up to 100 numbers for caller ID access (ring gates to
open).
― Trigger, latch and unlatch gates by SMS text or with app.
― 2 x Volt free momentary relay outputs.
― Simple programming by SMS text or app.
― Check if gates are opened or closed!
― Can also ring 4 phones when alarm or gates are triggered.
― Check stored numbers by SMS.
― Auto call feature to schedule outgoing call (prevents SIM
card being deactivated).
― Auto relay.
GATE MOTOR EXAMPLE
