Display Series Minerva Monochromatic
User and Maintenance Manual [ENG] - rel.00 (26/03/2018)
Aesys S.p.A. Via Pastrengo 7c - 24068 Seriate - BG - Italy • T. +39 035 29240 • F. +39 035 680030 • www.aesys.com - Registered office: Via Artigiani 41 - 24060 Brusaporto - BG – Italy

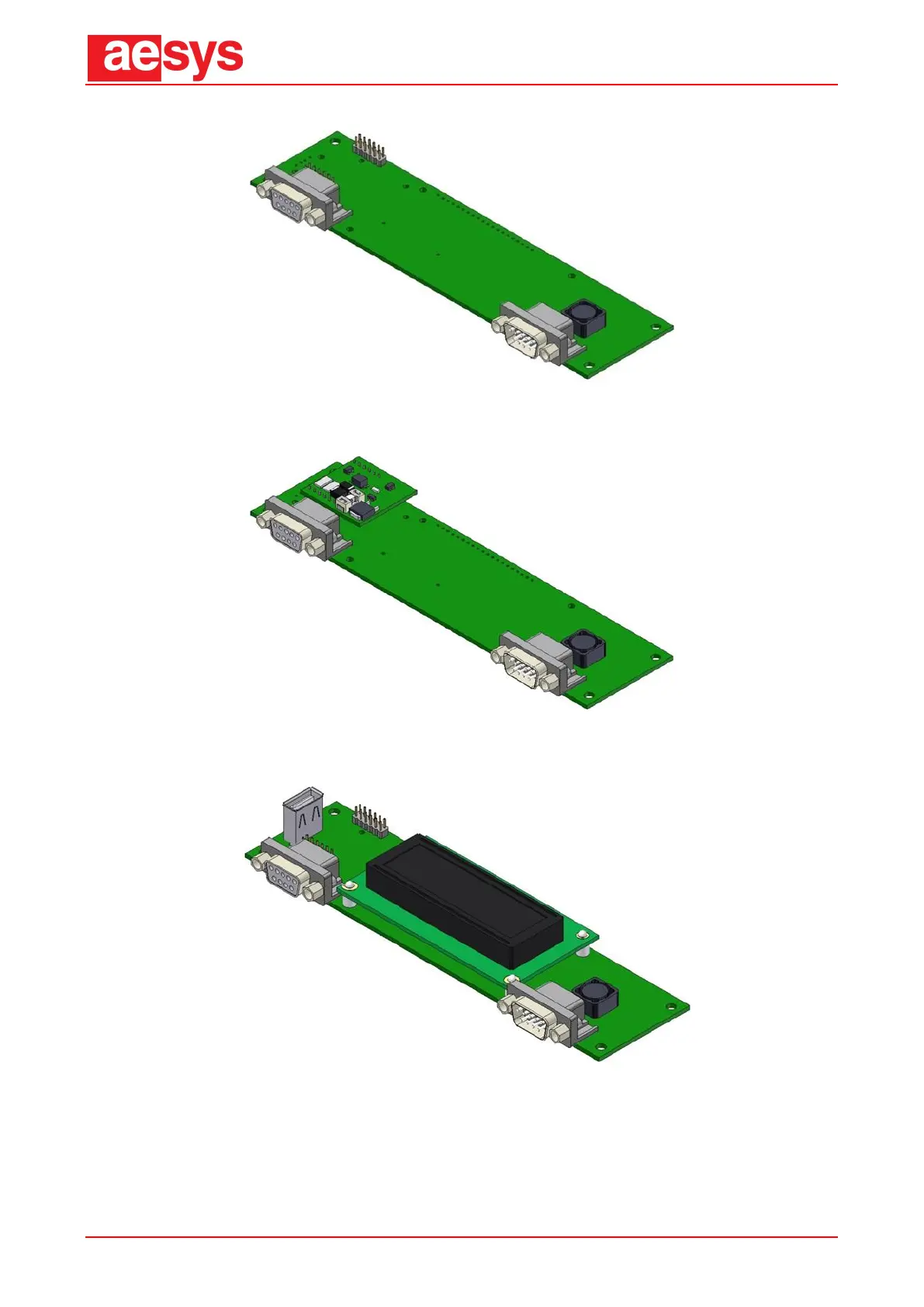

Figure 4-1: CPU Board “Type 1216” (cod. 140031713)
Figure 4-2: CPU Board “Type 1216” (cod. 140031713) with expansion IBIS type “1304” (code 140031677) for IBIS displays
Figure 4-3: CPU board “Type 1216” (cod. 140031621) for the display with Embedded DC600
The VMS is also equipped with some other electronic boards having specific functions; please refer to the
chapter 8 “MAIN COMPONENTS” and 10 “ENCLOSURES” for more information on these cards.
