III. WINCH INSTALLATION
1. Set bracket into place in front of the airbox.

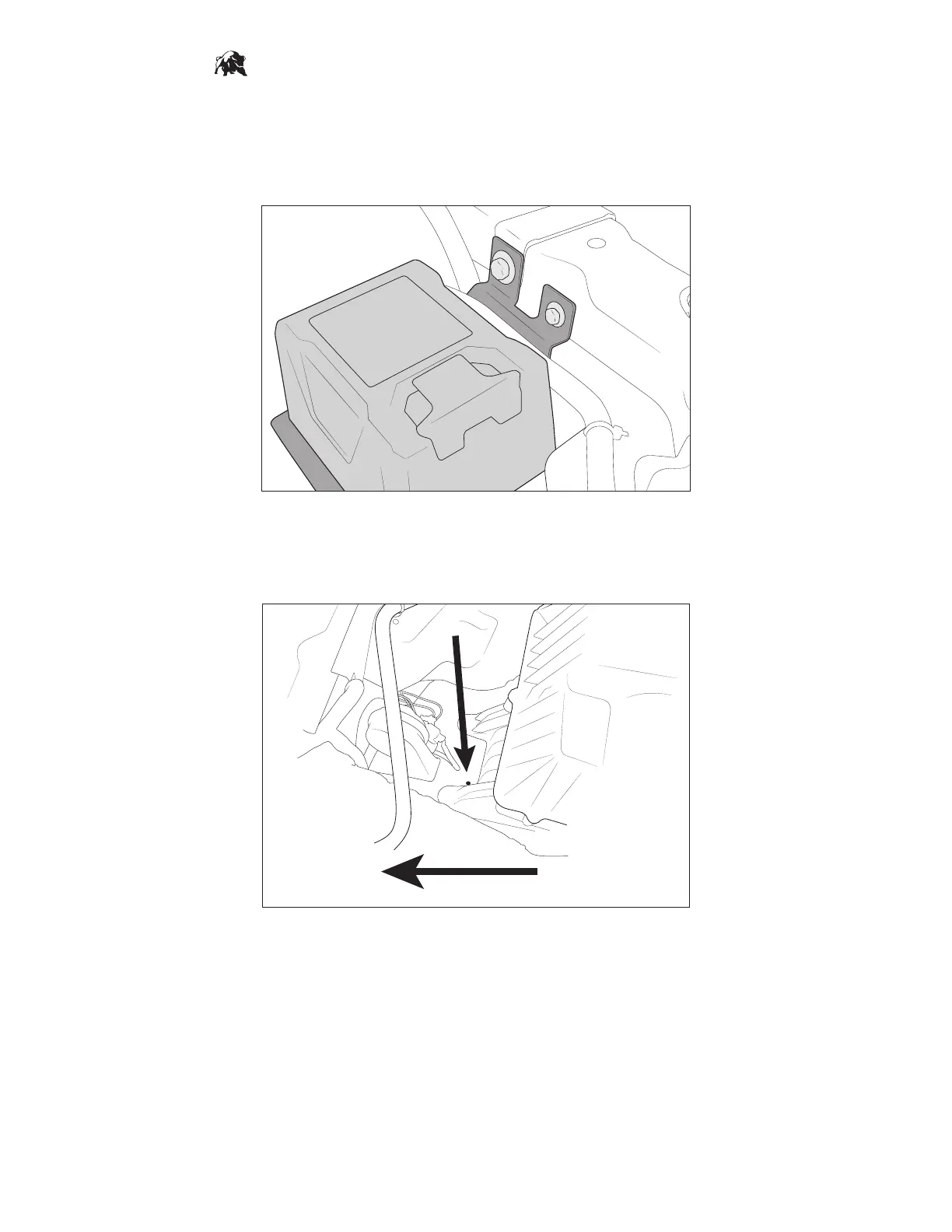

2. Position the controller bracket in place and loosely install the radiator support bolts removed earlier (fig. 12).
Figure 12
3. Install supplied bolt through the tab at the bottom of the bracket into the existing hole shown and
secure with supplied flange nut (fig. 13). NOTE: Some vehicles may have plastic clip that will need to be
removed.
FRONT OF VEHCILE
Figure 13
4. Route motor leads between the radiator shroud and inner frame rail, then through the gap between the
radiator and the lower radiator support.
