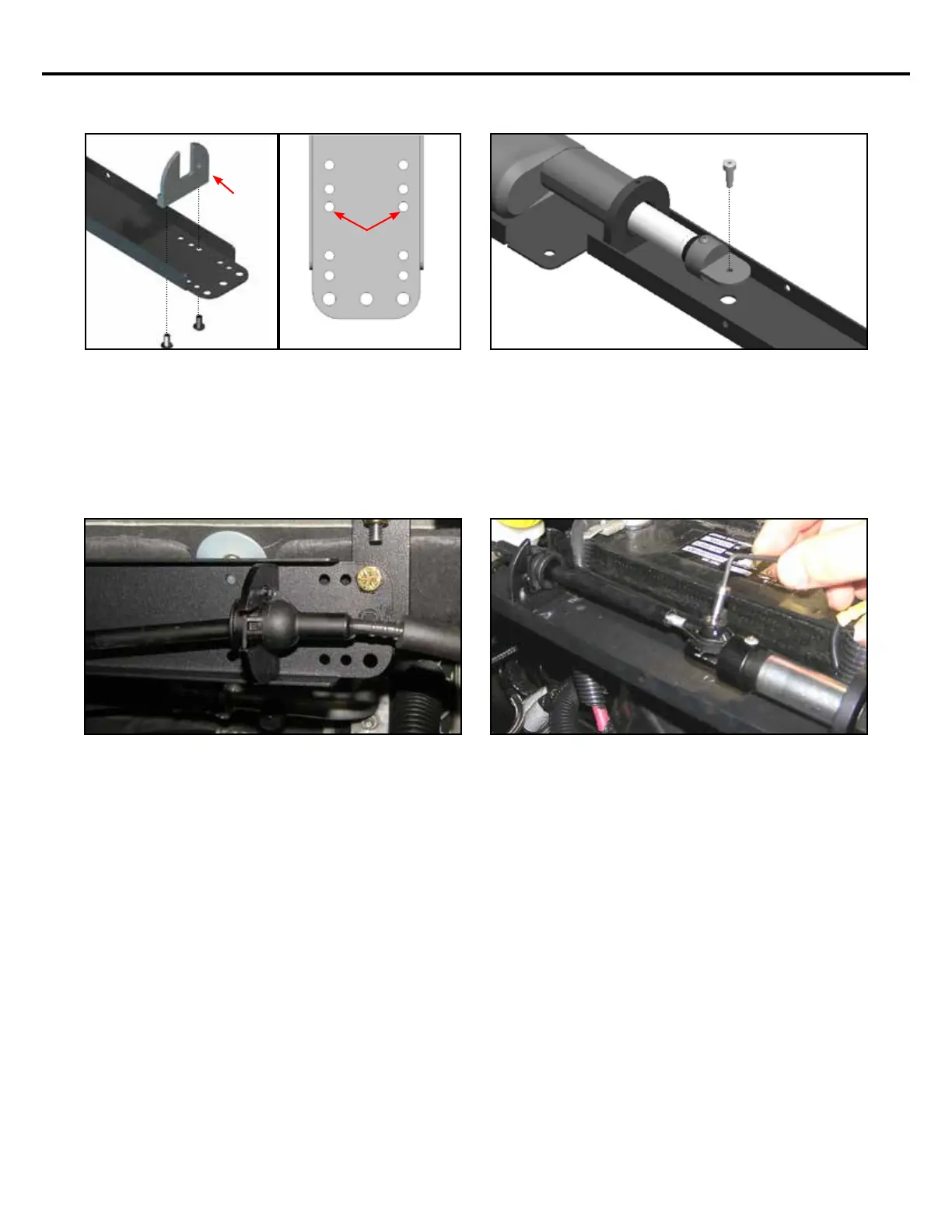

SMART-SHIFT INSTALLATION
Attach the Cable Bracket (included in KIT-SS-ASSY-
08C) to the end of the Smart Shift bracket in the
location shown in the gures above. The at side of
the bracket should be facing away from the actuator.
Secure this bracket using the (2) provided #10-32 x
3/8” button head screws and a small amount of Blue
Loctite®.
2008+
CHRYSLER /
DODGE
CABLE
BRACKET
Carefully tap the hole in the Nose Cone to #8-32.
Verify the #8-32 x 3/8” shoulder screw (included in
KIT-SS-ASSY-08C) will thread properly into the Nose
Cone. Do not install the shoulder screw at this time.
CHRYSLER TOWN & COUNTRY / DODGE GRAND CARAVAN 2008+
After calibration (see Section 3), verify the cable is
in Park. Insert the shoulder screw through the OEM
cable end and into the Nose Cone as shown, using a
small amount of Blue Loctite®.
Carefully insert the OEM shifter cable sleeve into the
Cable Bracket until the plastic ear snaps into the hole
in the Cable Bracket.
3
