aFe Power F-150 - Disconnect V6-3.5 L Vent Fitting

Page 10
5

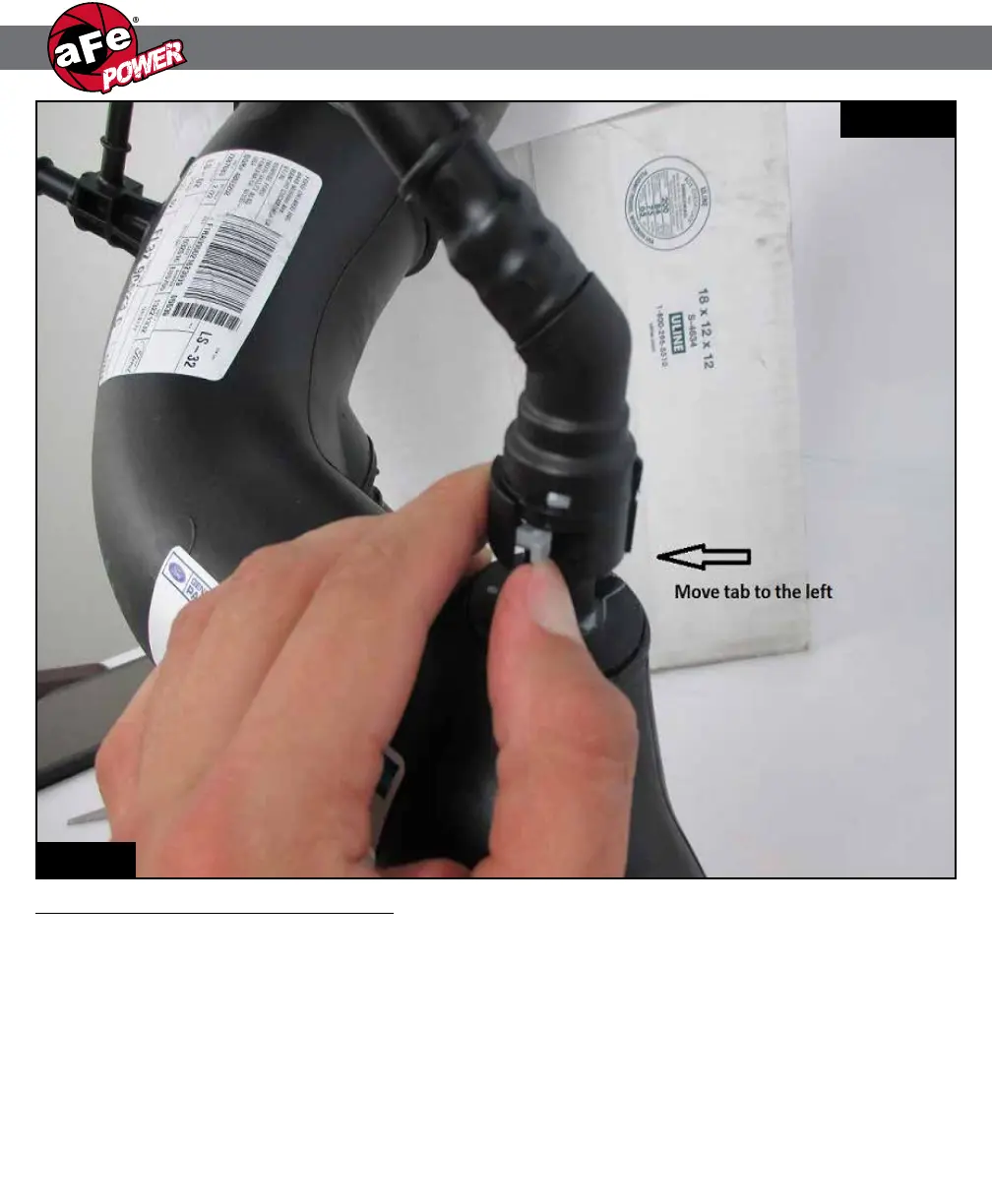

Step 15: Note the release clip on the vent tube connectors. Apply pressure against the exposed tail and
pull vent fitting off of the turbo inlet tube. It is not necessary to disconnect at the valve cover
end. There is a sensor and wire harness on this vent tube. Do not damage or remove these
components.
Refer to Figure G for Step 15. ( For V6-3.5L (tt) only, not necessary on V6-2.7L (tt) )
Figure G
INSTALL
