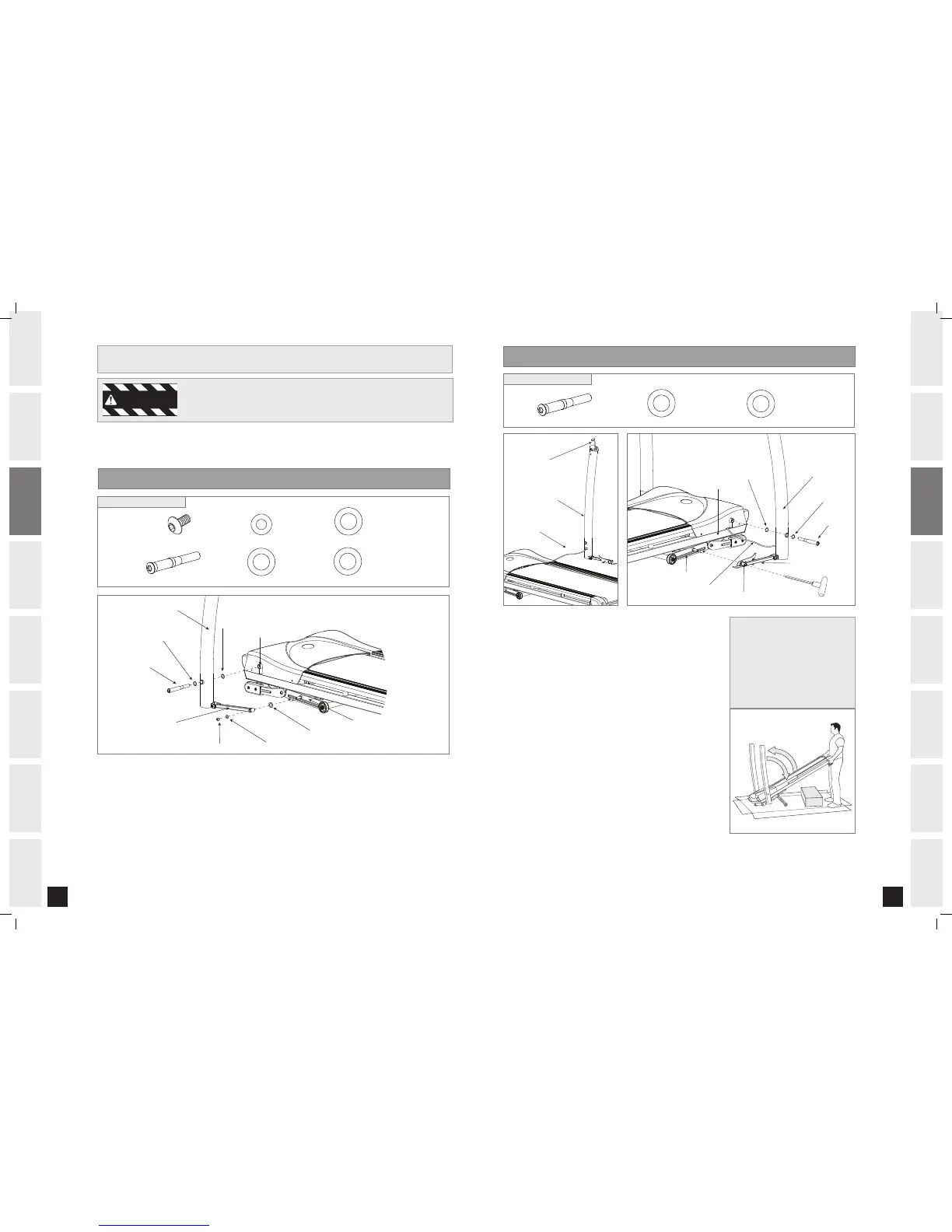

ASSEMBLY ST E P 1
1.0AT ASSEMBLY
ASSEMBLY ST E P 2
LEFT CONSOLE MAST
BOLT (D)
BOLT (A)
LEFT LINKAGE ARM
ELEVATION FRAME
FLAT WASHER (B)
FLAT WASHER (E)
WAVY WASHER (F)
TEFLON WASHER (C)
MAIN FRAME
RIGHT CONSOLE MAST
BOLT (D)
PRE-ATTACHED BOLT
RIGHT LINKAGE ARM
ELEVATION FRAME
CONSOLE CABLE
FLAT WASHER (E)
WAVY WASHER (F)
MAIN FRAME
BOLT (D)
Qty: 1
BOLT (A)
15 mm
Qty: 1
FLAT WASHER (B)
20 mm
Qty: 1
TEFLON WASHER (C)
18 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
HARDWARE BAG 1 CONTENTS :
BOLT (D)
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
HARDWARE BAG 2 CONTENTS :
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. Failure to do
so may result in injury! Remove plastic wrap from console masts.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
WARNING
Open HARDWARE BAG 1.
Cut banding straps. Do not move or lift treadmill from packaging.
Move LEFT LINKAGE ARM into position. Insert 1 BOLT (A) and 1 FLAT WASHER (B) into LEFT
LINKAGE ARM followed by 1 TEFLON WASHER (C) and attach to ELEVATION FRAME.
Lift LEFT CONSOLE MAST into upright position. Be sure to hold the console mast firmly, as
it will not stay in the upright position on its own.
Insert 1 BOLT (D) and 1 FLAT WASHER (E) through LEFT CONSOLE MAST followed by
1 WAVY WASHER (F) and attach to MAIN FRAME.
A
B
C
D
E
Pull LEAD WIRE through RIGHT CONSOLE MAST. After
pulling the LEAD WIRE through the mast, the top of the
CONSOLE CABLE should be located at the top of the
mast. Detach and discard LEAD WIRE.
Open HARDWARE BAG 2.
Move RIGHT LINKAGE ARM into position and attach to
ELEVATION FRAME.
NOTE: While holding RIGHT CONSOLE MAST in the
upright position, tighten PRE-ATTACHED BOLT using
T-wrench to attach RIGHT LINKAGE ARM.
Insert 1 BOLT (D) and 1 FLAT WASHER (E) through
RIGHT CONSOLE MAST followed by 1 WAVY WASHER (F)
and attach to MAIN FRAME.
Lift the RUNNING DECK until lock latch on side of
treadmill is fully engaged.
Remove CONSOLE from box and place out of the way.
Lower the treadmill RUNNING DECK from the folded
position by stepping on LOCK LATCH on lower right side.
A
B
C
D
E
F
G
1
3
2
NOTE: If you have attempted to
move the treadmill from the box
and the machine has sprung
open and cannot be assembled,
refer to the troubleshooting
section in order to restore the
treadmill to its proper position.
*
RIGHT CONSOLE MAST
CONSOLE CABLE
LEAD WIRE
