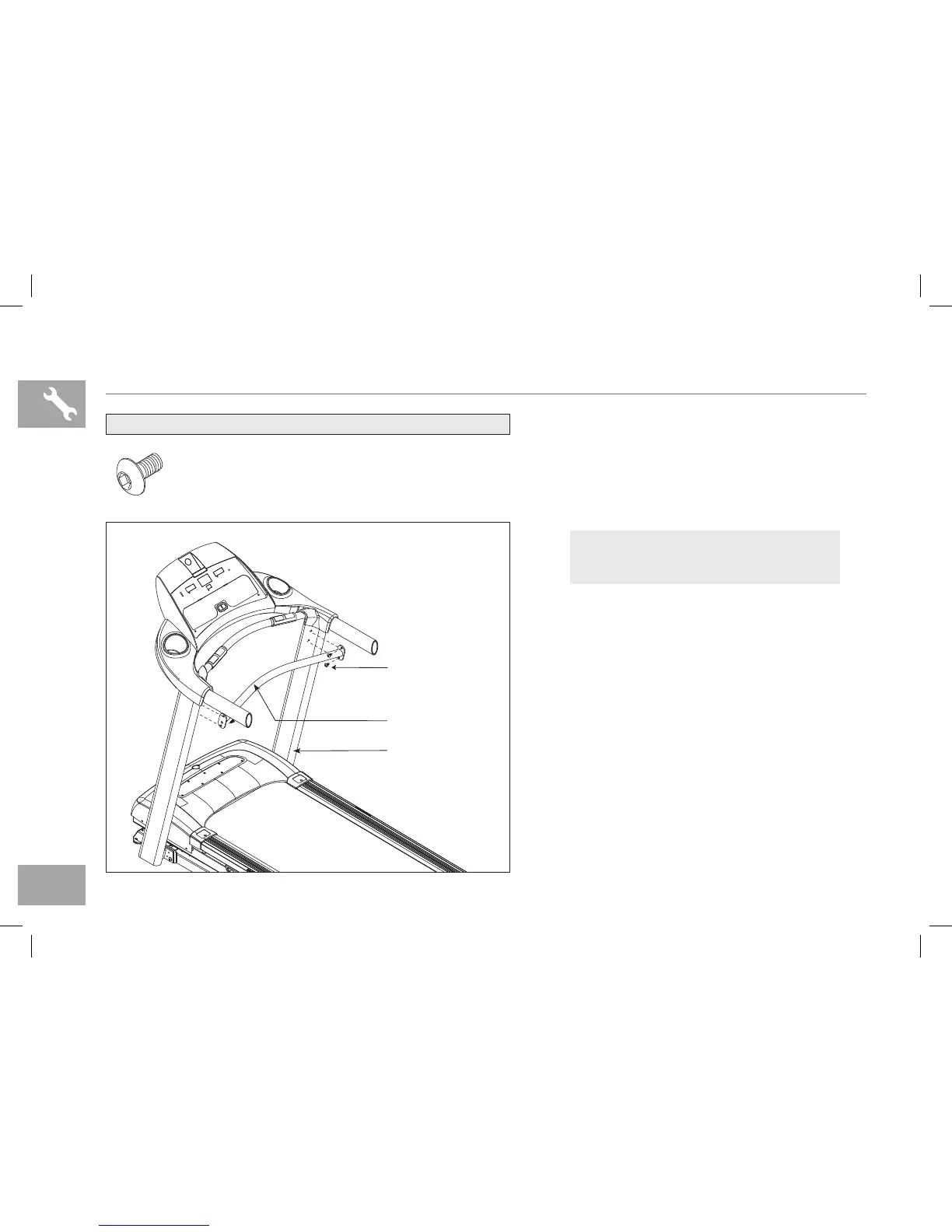

ASSEMBLY STEP 5
A Open HARDWARE BAG 5.
B Align SUPPORT BAR with holes in CONSOLE
MASTS.
C Insert BOLTS (H) into all 4 holes of the
SUPPORT BAR.
F Tighten all console bolts (Step 4) and support
bar bolts (Step C above) completely
HARDWARE BAG 3 CONTENTS :
BOLTS (H)
SUPPORT BAR
CONSOLE MAST
BOLT (H)
15 mm
Qty: 4
NOTE: Look into holes in the right mast
before inserting bolts to avoid pinching
cables.
