AFG 2.5AT - Assembly Step 4: Console Mounting to Masts

9
ASSEMBLY STEP 4
SPRING WASHER (B)
15 mm
Qty: 6
FLAT WASHER (C)
15 mm
Qty: 6
BOLT (D)
15 mm
Qty: 6
HARDWARE BAG 4 CONTENTS :
FLAT WASHERS (C)
CONSOLE MAST
CONSOLE CABLES
SPRING WASHERS (B)
BOLTS (D)
CONSOLE
ASSEMBLE
LEFT SIDE
FIRST

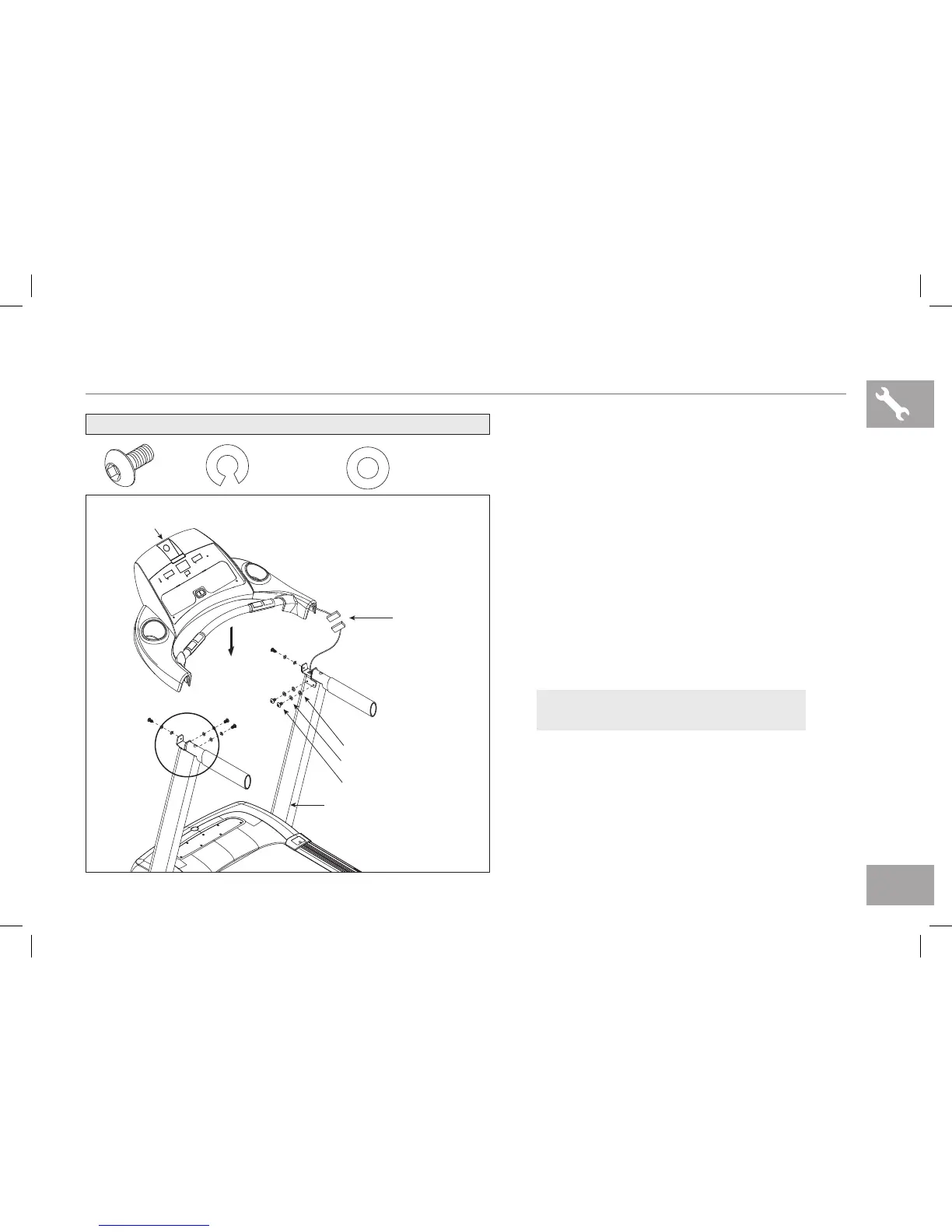

A Disengage the DECK LOCK LATCH with your
foot to lower the RUNNING DECK.
B Open HARDWARE BAG 4.
C Gently place the CONSOLE on top of the
CONSOLE MASTS. Attach the LEFT SIDE first
using 3 BOLTS (D), 3 SPRING WASHERS (B)
and 3 FLAT WASHERS (C).
D Connect the CONSOLE CABLES, carefully
tucking wires in masts to avoid damage.
E Attach the RIGHT SIDE of the CONSOLE
using 3 BOLTS (D), 3 SPRING WASHERS (B)
and 3 FLAT WASHERS (C).
NOTE: Be careful not to pinch any wires
while assembling the masts.
