8

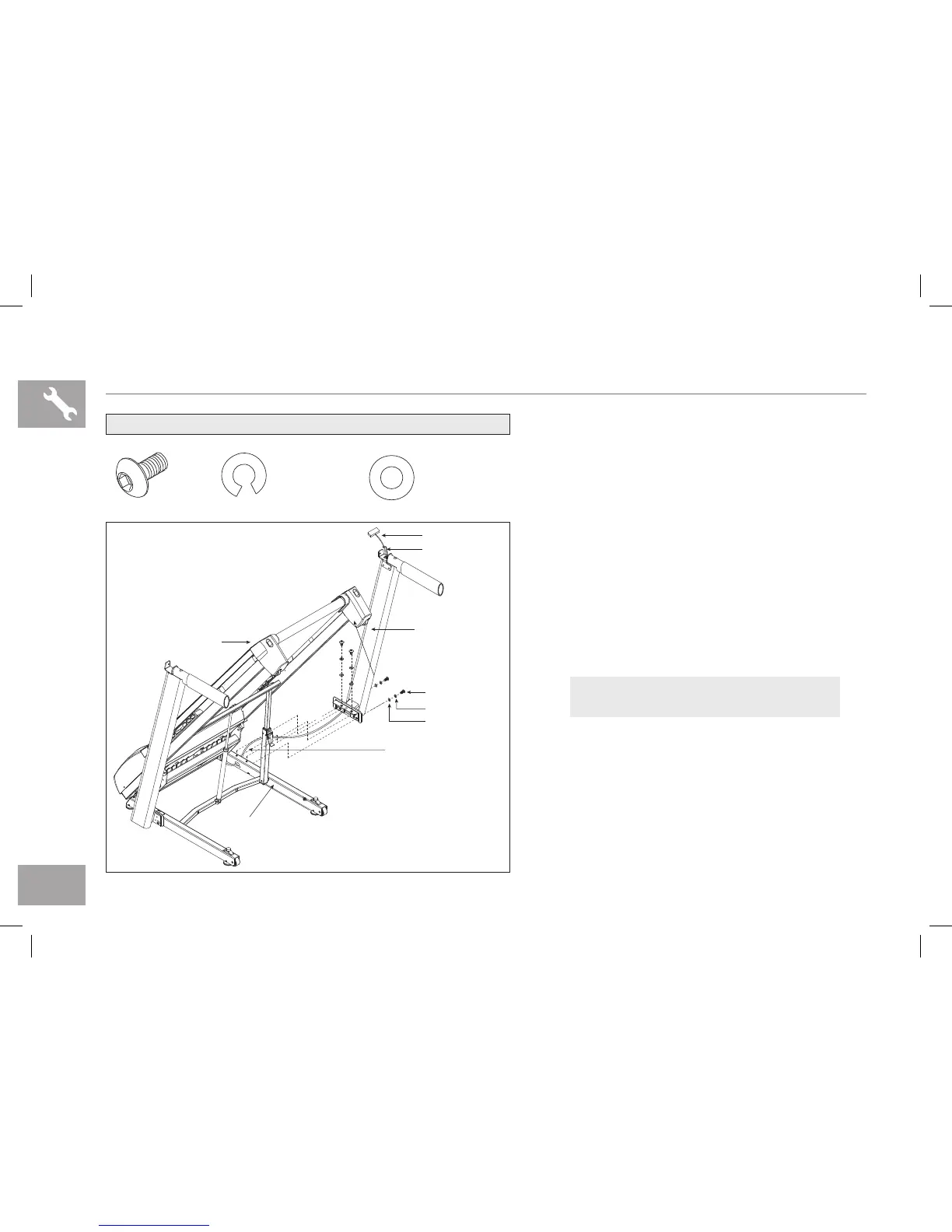

ASSEMBLY STEP 3
A Open HARDWARE BAG 3.
B Pull LEAD WIRE through RIGHT CONSOLE
MAST. After pulling the lead wire through the
mast, the top of the CONSOLE CABLE should
be located at the top of the mast. Detach and
discard the lead wire.
C With the RUNNING DECK in the raised
position, attach the RIGHT CONSOLE
MAST to the BASE FRAME using 4 B O LTS
(A), 4 SPRING WASHERS (B) and 4 FLAT
WASHERS (C).
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 3 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
RIGHT CONSOLE MAST
CONSOLE CABLE
LEAD WIRE
CONSOLE CABLE
BASE FRAME
RUNNING DECK
