7

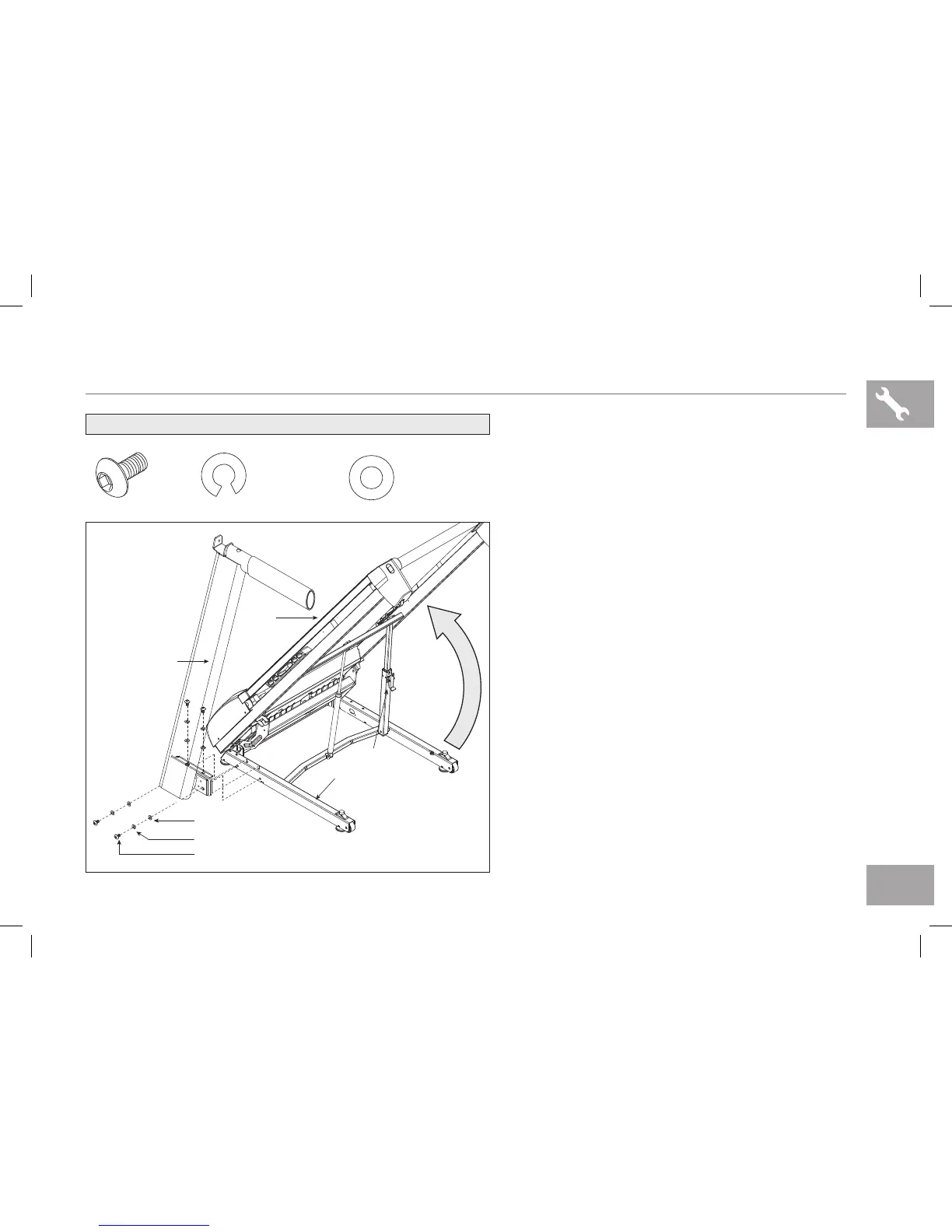

ASSEMBLY STEP 2
A Lift the RUNNING DECK upward until the
FOOT LATCH locks. Remove all contents from
underneath the running deck.
B Open HARDWARE BAG 2.
C With the RUNNING DECK in the raised position,
attach the LEFT CONSOLE MAST to the
BASE FRAME using 4 BOLTS (A), 4 SPRING
WASHERS (B) and 4 FLAT WASHERS (C).
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
LEFT
CONSOLE
MAST
RUNNING DECK
BASE FRAME
FOOT LATCH
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
