AFG 4.1AE - Page 11

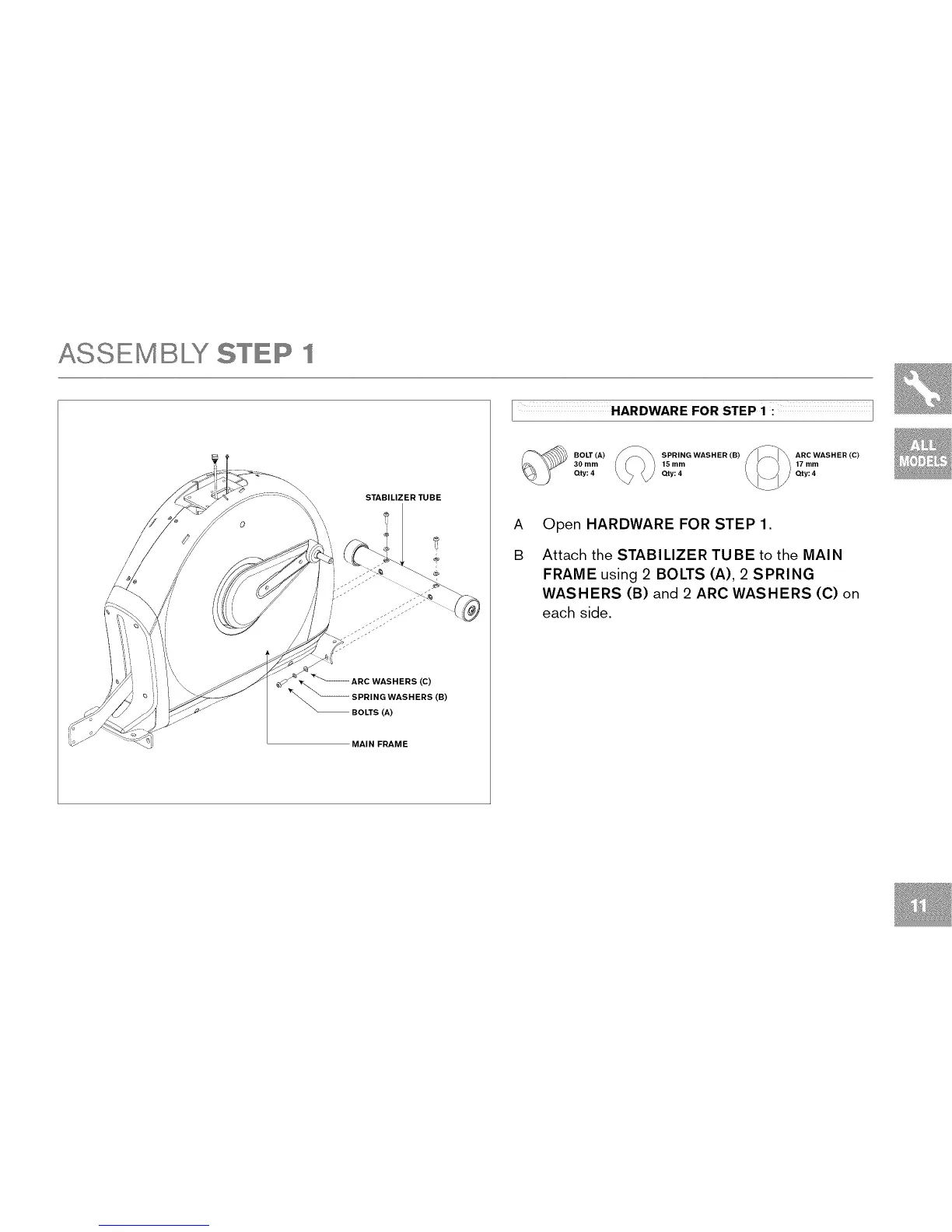

ASSEMBLY STEP 1
STABILIZER TUBE
÷
ARC WASHERS (C)
(B)
BOLTS (A)
MAIN FRAME
HARDWARE FOR STEP 1 : 1
BOLT (A)
30 mm
Qty: 4
SPRING WASHER (B)
15 mm
Oty: 4
ARC WASHER (C)
17 mm
Oty: 4
A
B
Open HARDWARE FOR STEP 1.
Attach the STABILIZER TUBE to the MAIN
FRAME using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 ARC WASHERS (C) on
each side.
