AFG 4.1AE - Page 12

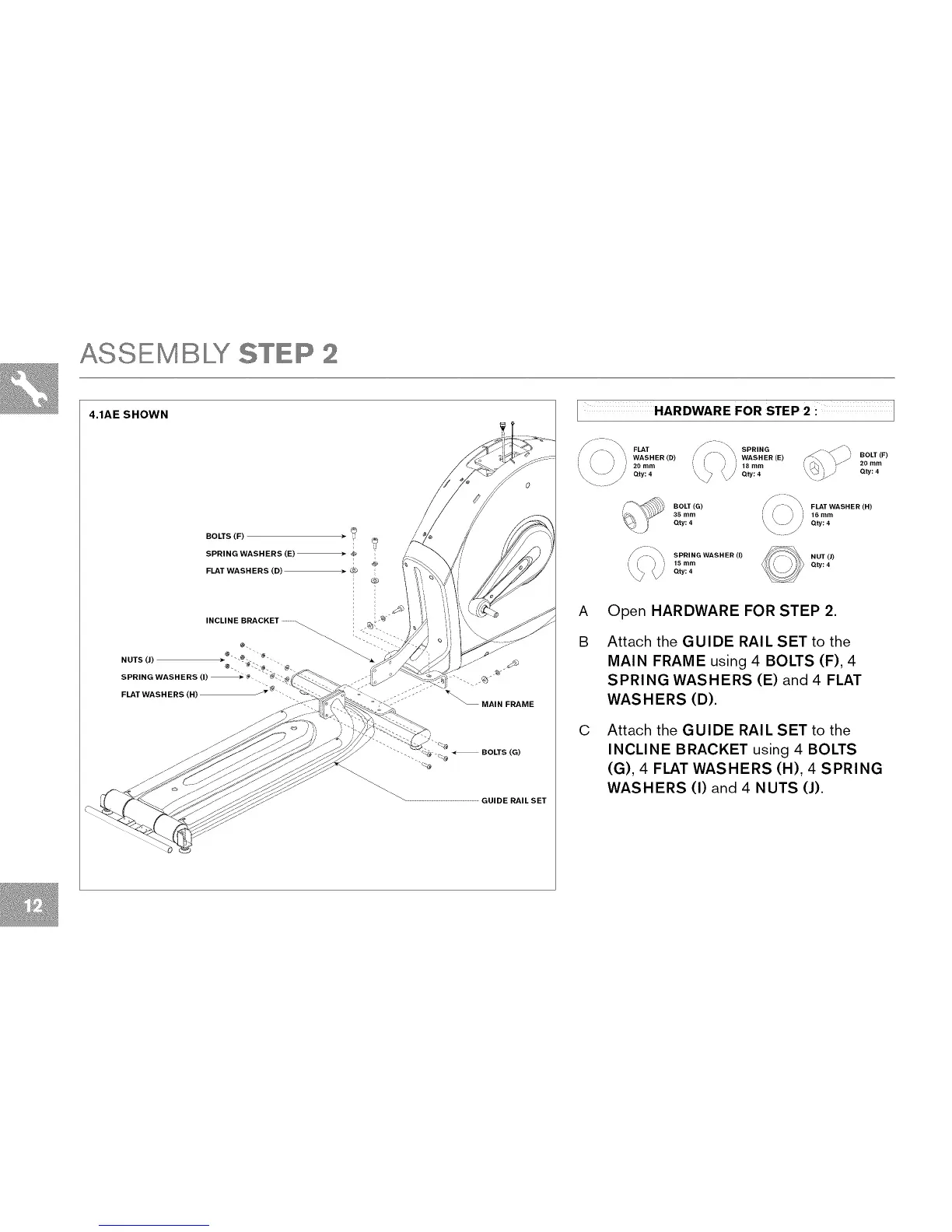

ASSEMBLY STEP 2
4.1AE SHOWN
BOLTS (F) @
SPRING WASHERS (E) _ @
$
FLAT WASHERS (D) • @
INCLINE BRACKET
NUTS (J) - - .
SPRING WASHERS (I) _ _ "_?-
.@ -"
FLAT WASHERS (H)
MAIN FRAME
HARDWARE FOR STEP 2 : ]
FLAT Yf _ ......
WASHER (D) ' ' WASHER(E)
i i
BOLT (F)
2O mm
Qty: 4
I / ' " 16mm
_ Qty: 4
_}\_ SPRING WASHER (I) NUT (J)
i ') 15 mm Qty:4
A
B
Open HARDWARE FOR STEP 2.
Attach the GUIDE RAIL SET to the
MAIN FRAME using 4 BOLTS (F), 4
SPRING WASHERS (E) and 4 FLAT
WASHERS (D).
C Attach the GUIDE RAIL SET to the
INCLINE BRACKET using 4 BOLTS
(G), 4 FLAT WASHERS (H), 4 SPRING
WASHERS (I) and 4 NUTS (J).
