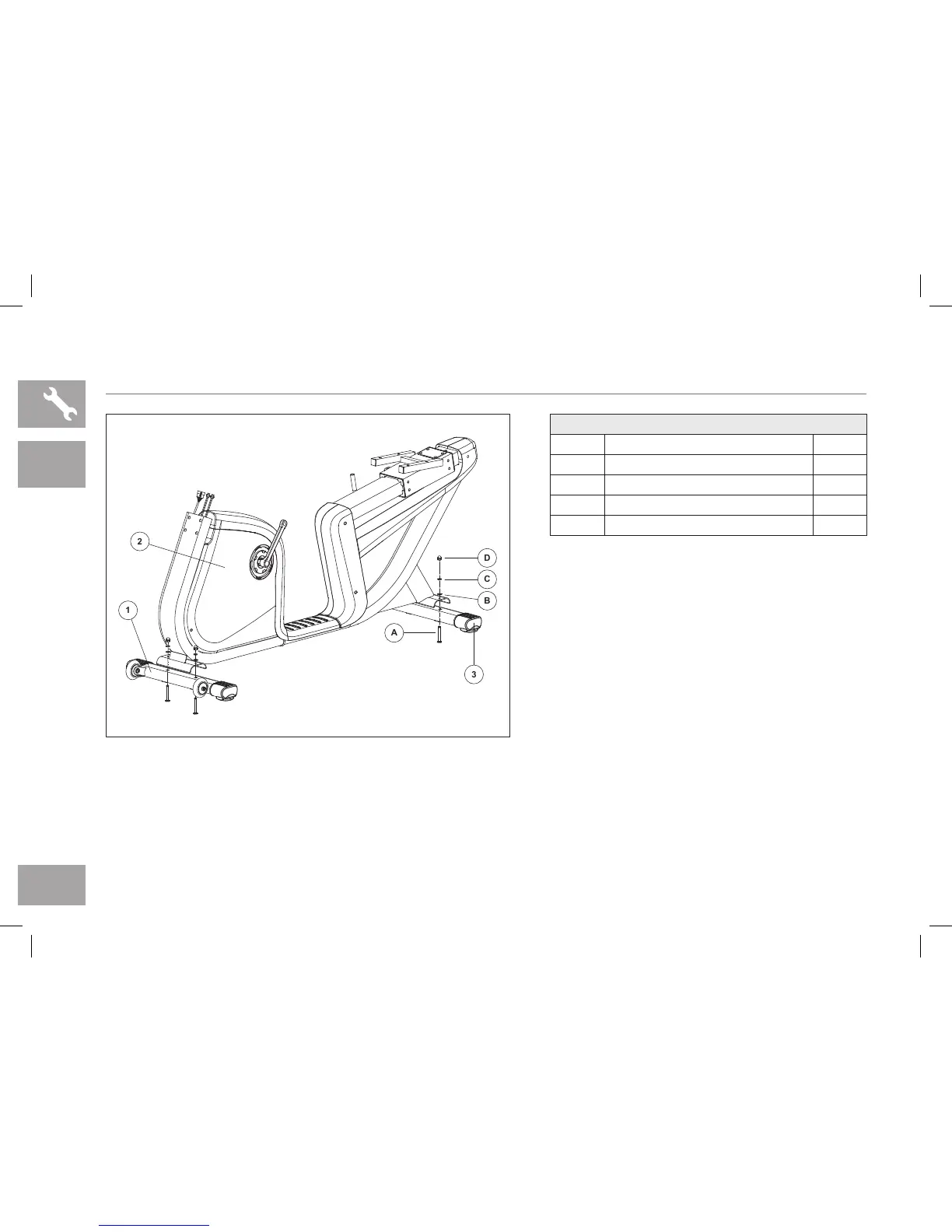

7.3AR ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Attach the FRONT STABILIZER TUBE (1) to the
BIKE FRAME (2) using 2 BOLTS (A), 2 FLAT
WASHERS (B), 2 SPRING WASHERS (C) and
2 NUTS (D).
C Attach the REAR STABILIZER TUBE (3) to the
BIKE FRAME (2) using 2 BOLTS (A), 2 FLAT
WASHERS (B), 2 SPRING WASHERS (C) and
2 NUTS (D).
2
1
D
C
B
3
A
7.3AR
HARDWARE FOR STEP 1
PART TYPE QTY
A BOLT 4
B FLAT WASHER 4
C SPRING WASHER 4
D NUT 4
