AFG 7.3AR - Page 11

11

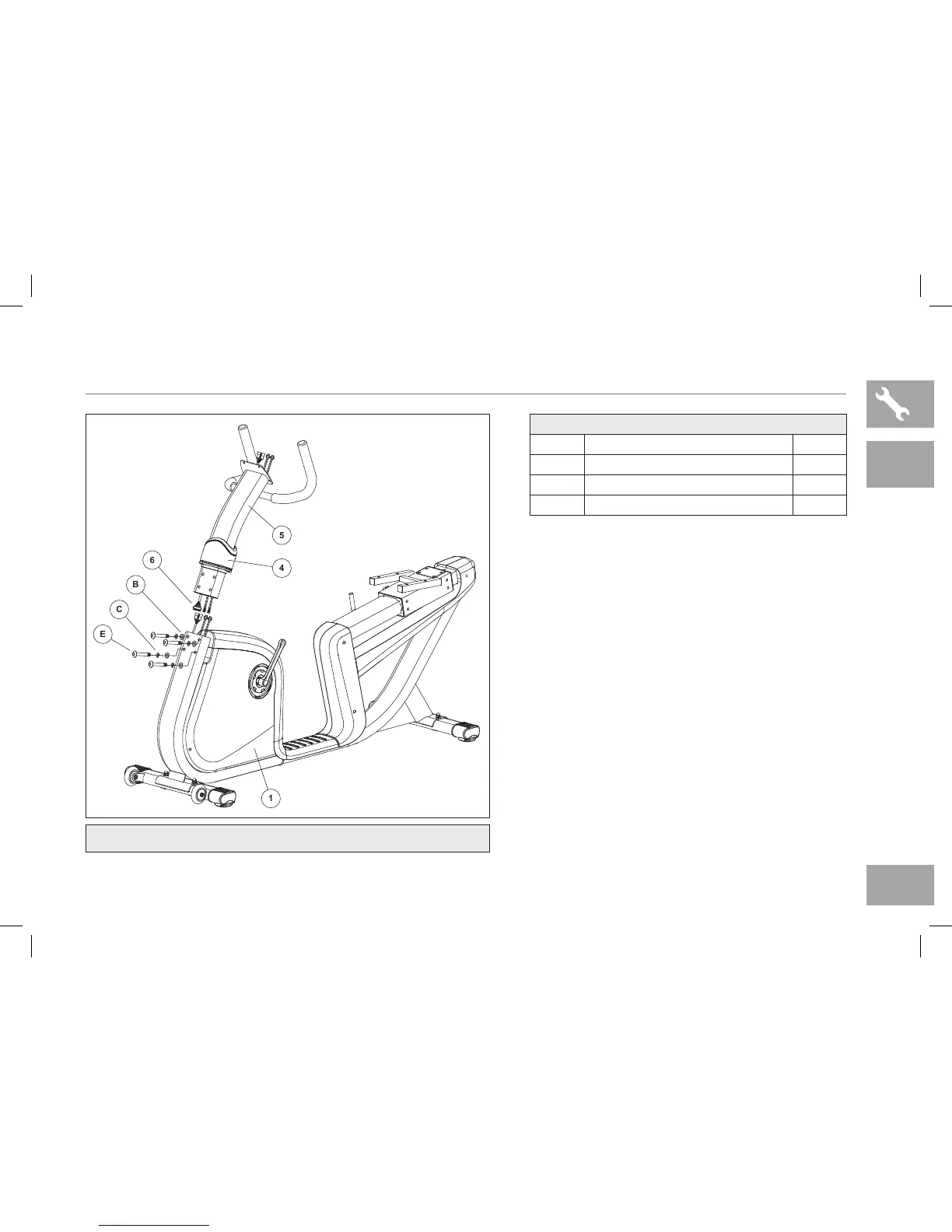

7.3AR ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.
B Slide CONSOLE MAST GROMMET (4) from the
bottom up the CONSOLE MAST (5).
C Attach CONSOLE CABLES (6) and carefully tuck
all cables into BIKE FRAME (1). Slide CONSOLE
MAST (5) into BIKE FRAME (1).
D Attach the CONSOLE MAST (5) using 4 BOLTS
(E), 4 SPRING WASHERS (C) and 4 FLAT
WASHERS (B) from the rear.
E Slide CONSOLE MAST GROMMET (4) down over
BIKE FRAME (1).
1
5
4
6
B
C
E
7.3AR
NOTE: Be careful not to pinch any wires while attaching the console mast.
HARDWARE FOR STEP 2
PART TYPE QTY
E BOLT 4
B FLAT WASHER 4
C SPRING WASHER 4
