17

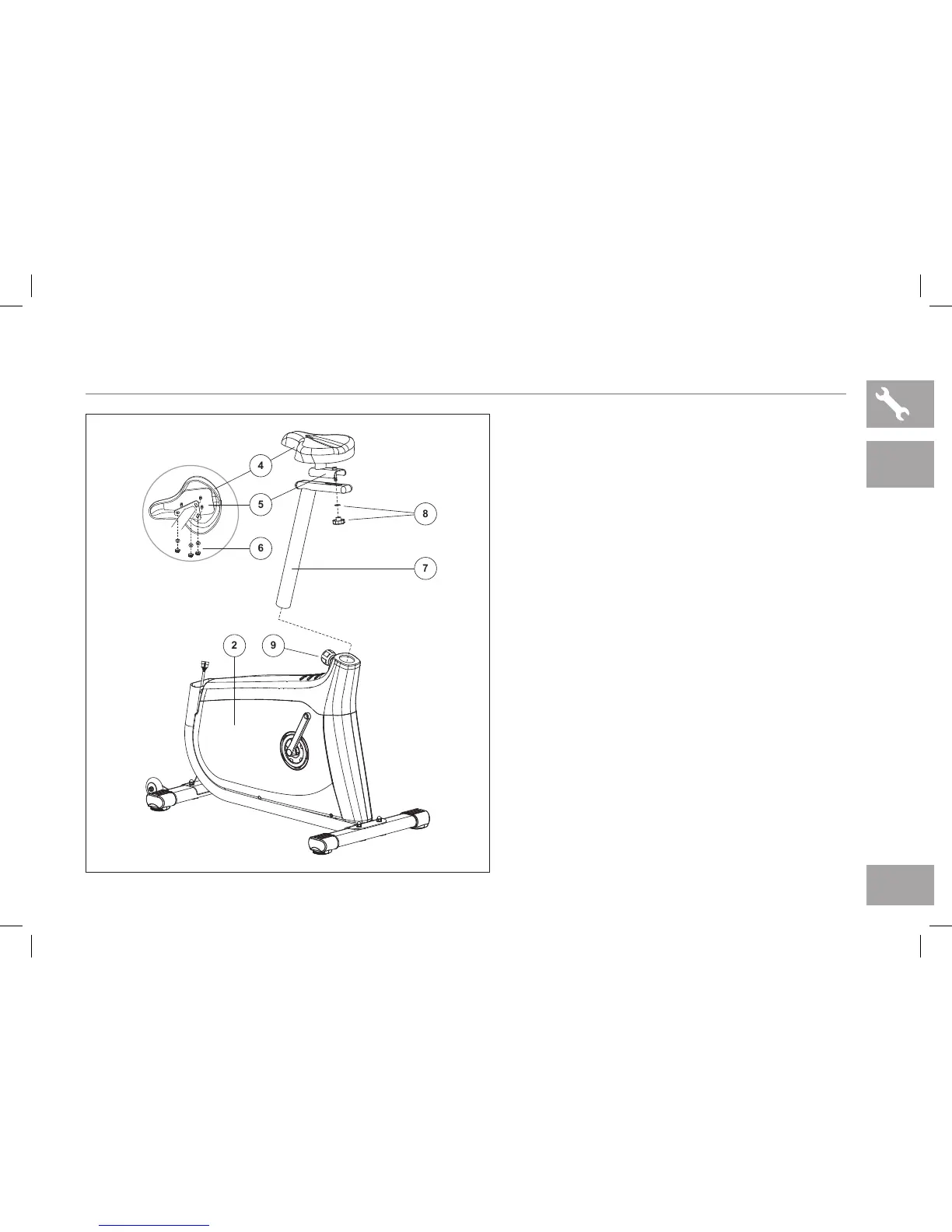

7.3AU ASSEMBLY STEP 2
* NOTE: There is no hardware for this step.
A Attach SEAT (4) to SEAT BASE (5) using 3
PRE-INSTALLED FLAT WASHERS AND
NUTS (6).
B Attach SEAT BASE (5) to SEAT POST
TUBE (7) using SEAT ADJUSTMENT
KNOB AND WASHER (8).
C Pull the SEAT HEIGHT ADJUSTMENT
KNOB (9) outward while sliding the SEAT
POST TUBE (7) into the BIKE FRAME (2).
7
8
6
5
4
2
9
7.3AU
