18

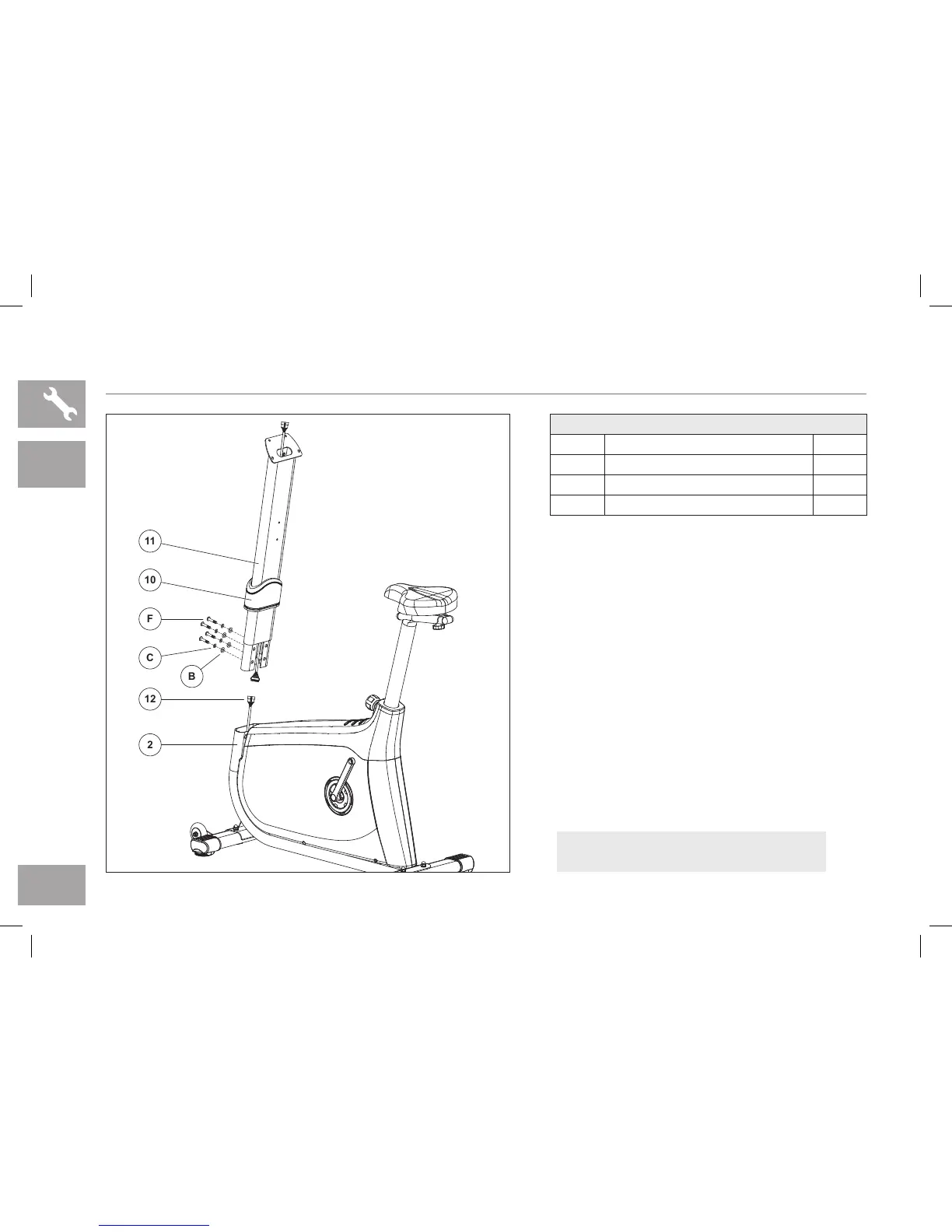

7.3AU ASSEMBLY STEP 3
7.3AU
NOTE: Be careful not to pinch any wires
while attaching the console mast.
A Open HARDWARE FOR STEP 3.
B Slide CONSOLE MAST GROMMET (10) from the
bottom up the CONSOLE MAST (11).
C Attach CONSOLE CABLES (12) and carefully tuck
all cables into BIKE FRAME (2). Slide CONSOLE
MAST (11) into BIKE FRAME (2).
D Attach the CONSOLE MAST (11) using 4 BOLT
(F), 4 SPRING WASHERS (C) and 4 FLAT
WASHERS (B) from the rear.
E Slide CONSOLE MAST GROMMET (10) down
over BIKE FRAME (2).
2
12
10
F
C
B
11
HARDWARE FOR STEP 3
PART TYPE QTY
F BOLT 4
B FLAT WASHER 4
C SPRING WASHER 4
