2015 AFG Baby Furniture H309 Assembly Sheet ©
11

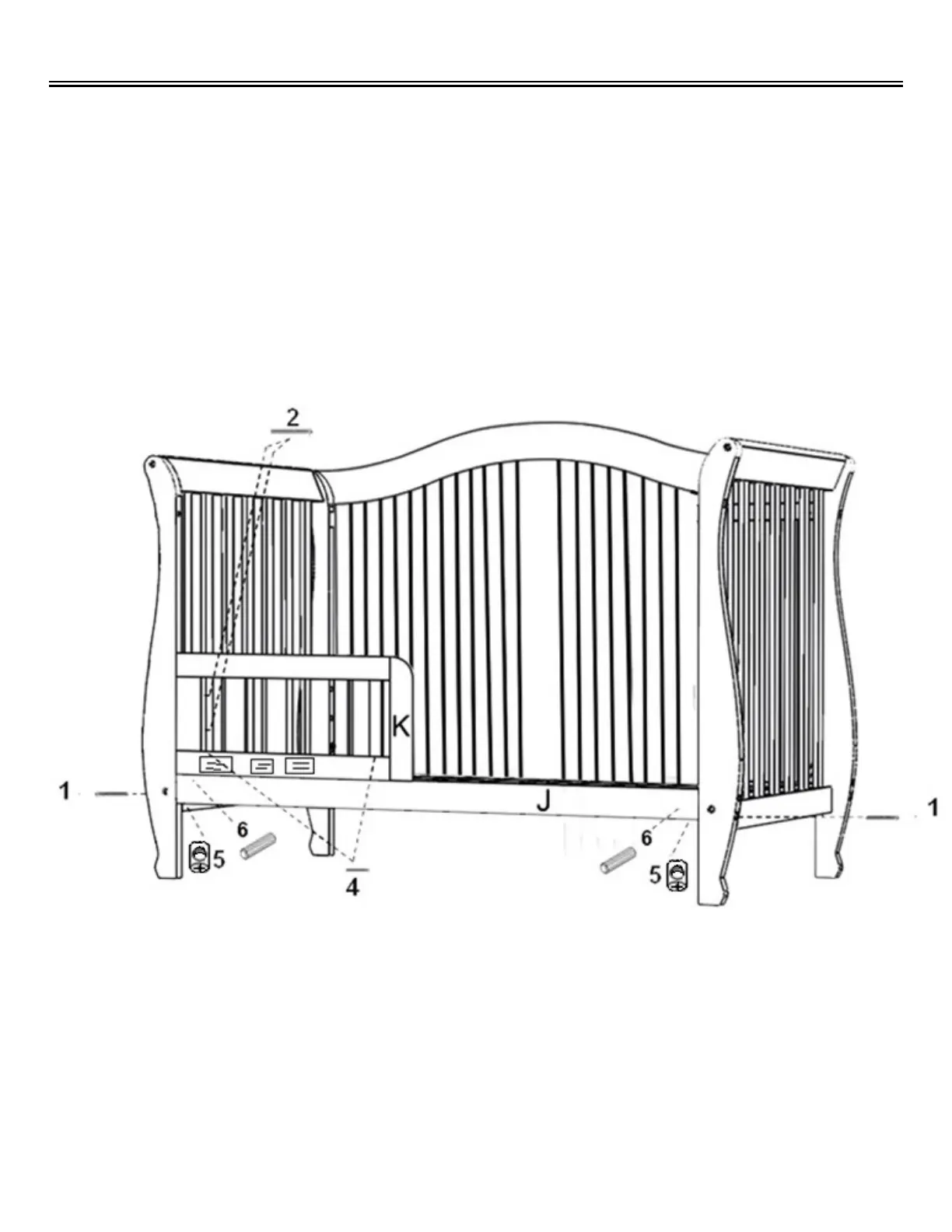

H309 Toddler Bed Assembly Sheet
*Mattress Support Assembly must be in the lowest position before installing guardrail.
a. Loosen the bolts from the Side Panels to the Footboard (C) bolts to detach the Footboard.
b. Adjust Stabilizer Bar (J) by moving up one level to where the original Footboard was attached.
c. Attach Guardrail (K) to Stabilizer Bar (J) by using 2 Bolts (#4), and Left Side Panel (A) by using
2 Bolts (#2).
To Next Page
