AFG H309 - Crib Assembly Instructions; Step 1 & 2: Side Panel and Headboard Assembly

2015 AFG Baby Furniture H309 Assembly Sheet © 6
H309 Crib Assembly Sheet

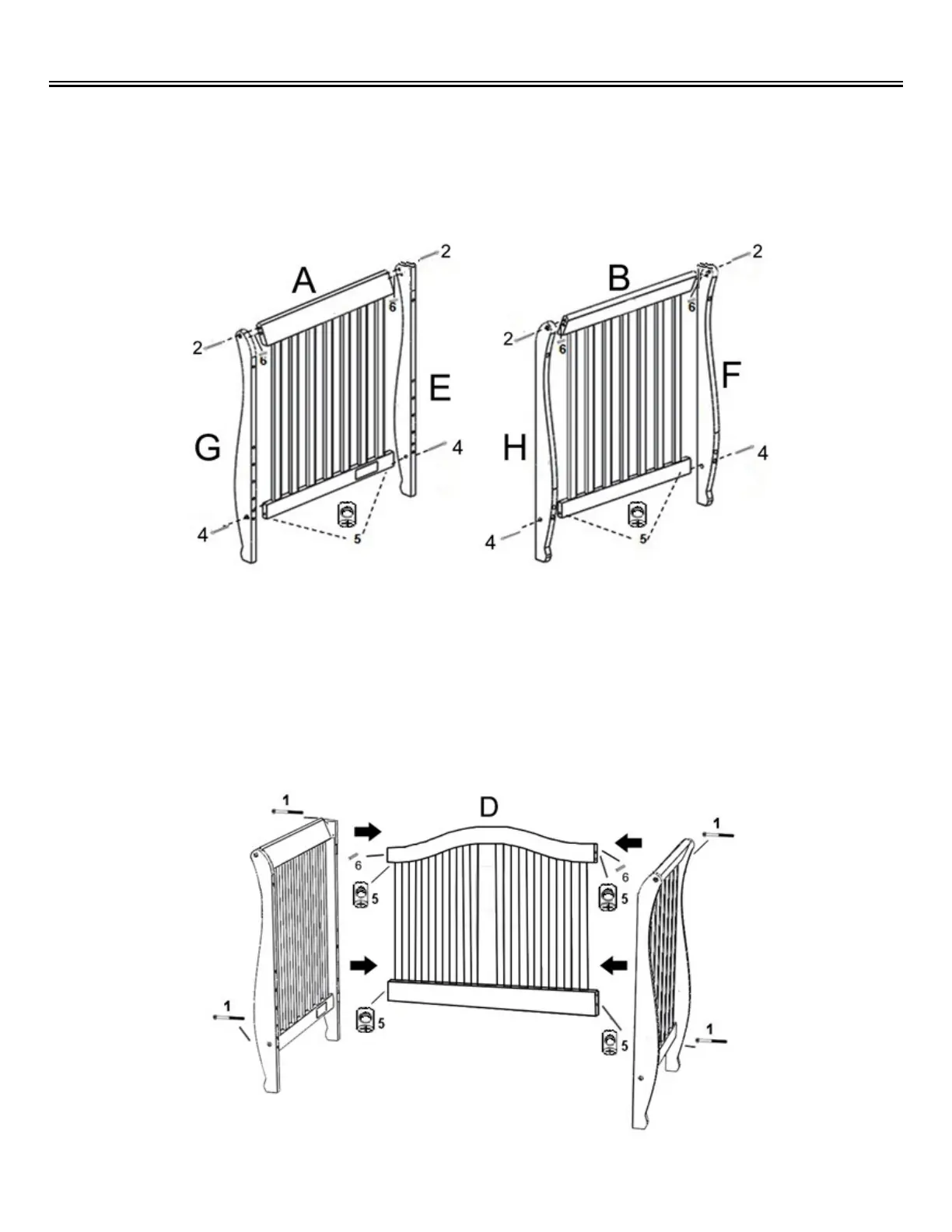

STEP 1:
a. Insert 2 Wood Dowels (#6) into top rail of Left Side Panel (A).
b. Attach Rear Left Leg (E) and Front Left Leg (G) to the Left Side Panel (A) by using 4 Bolts (#2).
c. Repeat above steps to the Right Side Panel (B). Tighten firmly with Wrench (#7).
STEP 2:
Attach Rear Left Leg (E) and Rear Right Leg (F) on the side panels to the Headboard (D) by inserting 2
Wood Dowels (#6) on the top rail and 4 Barrel Nuts (#5) on the underside of each corner of the
headboard before screwing 4 Bolts (#1) to secure the legs. Make sure when securing the bottom rail of
the Headboard (D) to the legs to insert the bolts through the lower one of the 2 holes on the legs.
