Installation procedures for ICAR certified meters
Afiflo 2000
Version July 2018
Installation manula for Afiflo 2000 mik meter - Page 6 of 33.
3.2 The Control Panel
The AfiFlo 2000 milk meter control panel is essentially a computer terminal.
Milking operations are controlled from it and all relevant cow information can be viewed in
the display windows. It is thin and compact.

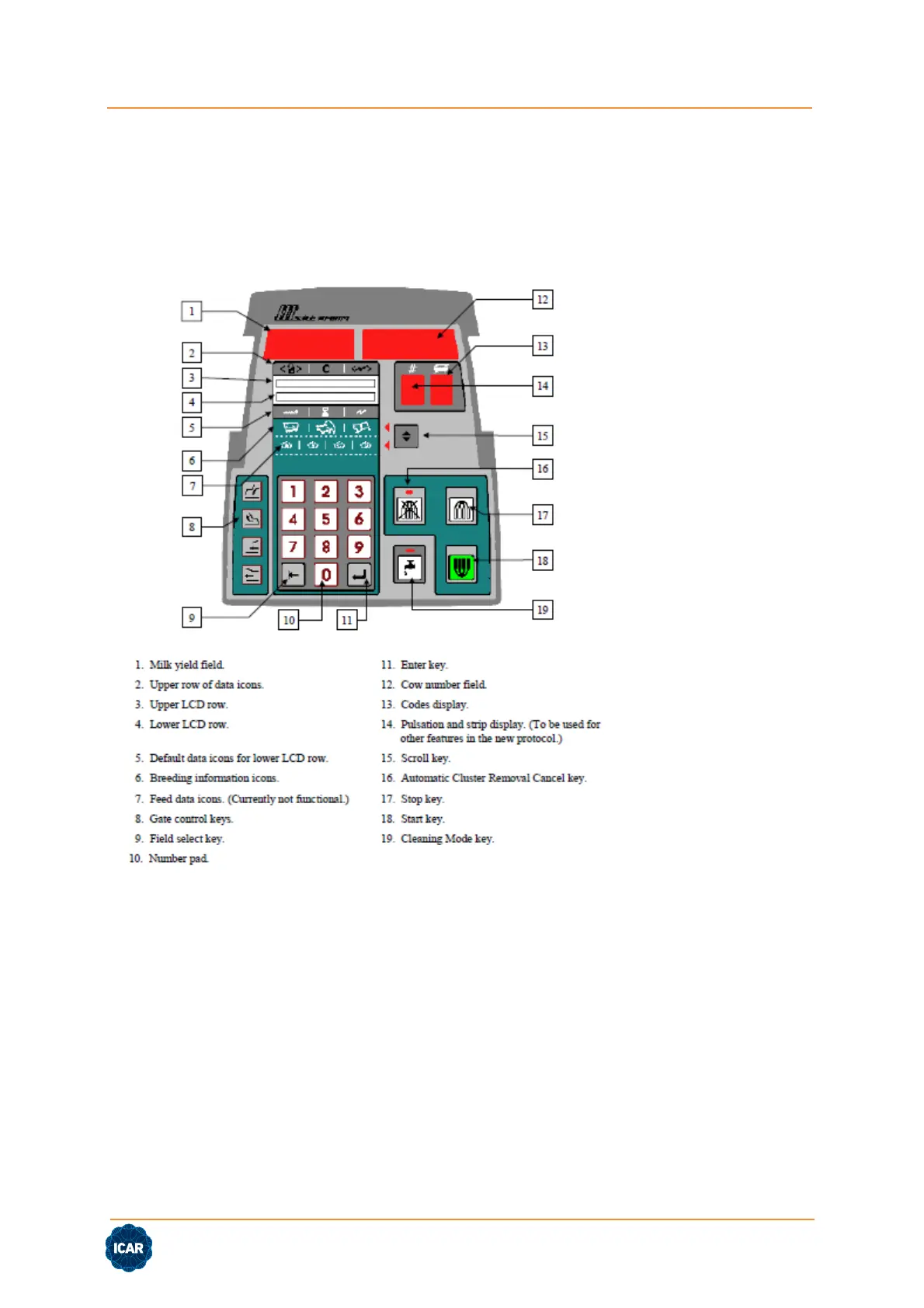

Below is a picture of the AfiFlo 2000 display panel. Call outs are defined below the picture.
Note: AfiFlo green and red alert lamps, discussed in the following chapter, are not pictured
above.
