Press Start button of the High-voltage box (which is connected to the inverter) for more
than 5s, the LED indicator on the front panel will flash, and then release the button, the
master pack will shut down after all the slave packs shut down (Sleep Mode).
Tip: lf the system does not work, keep the internal DC switch on the battery cluster
closed.

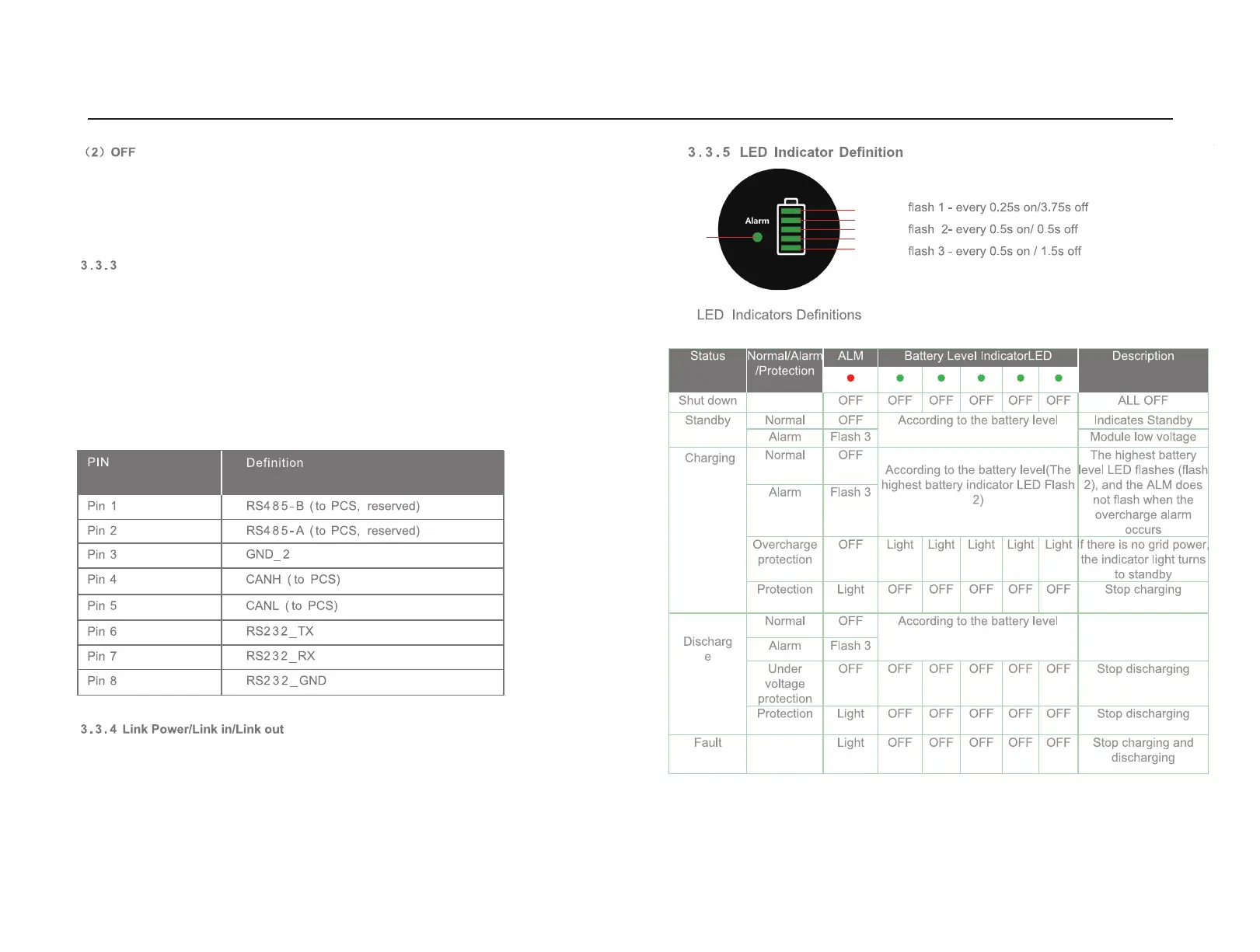

The Link Communication Port is the interface between the battery packs and the
inverter.The inverter retrieves the battery data such as SOC,DOD, charge current via
thisconnection.
RJ45 port supports CAN / RS485 / RS232 communication protocol.
CAN/RS485 communication terminal (RJ45 port) connects to the inverter and follows
CAN / RS485 protocol.
RS232 communication terminal (RJ45 port) follows RS232 protocol, for manufacturer or
professional engineer to debug
or service.
Link Communication Port
Link Power/Link in/Link out are used for the communication between the battery packs.
The battery pack close to the inverter is the master pack, others are the slave pack.
L4
L5
L2
L1
L6
L3
