AFRISO WMS-WP6 - 5.3.1 Product with locking

16
Mounting
EN
WMS-WP6
5.3.1 Product with locking
The product contains a changeover contact. In the case of a low water
alarm condition, the contact (connected in series with the burner) opens.
The previously open contact closes so that an alarm horn can be acti-
vated.

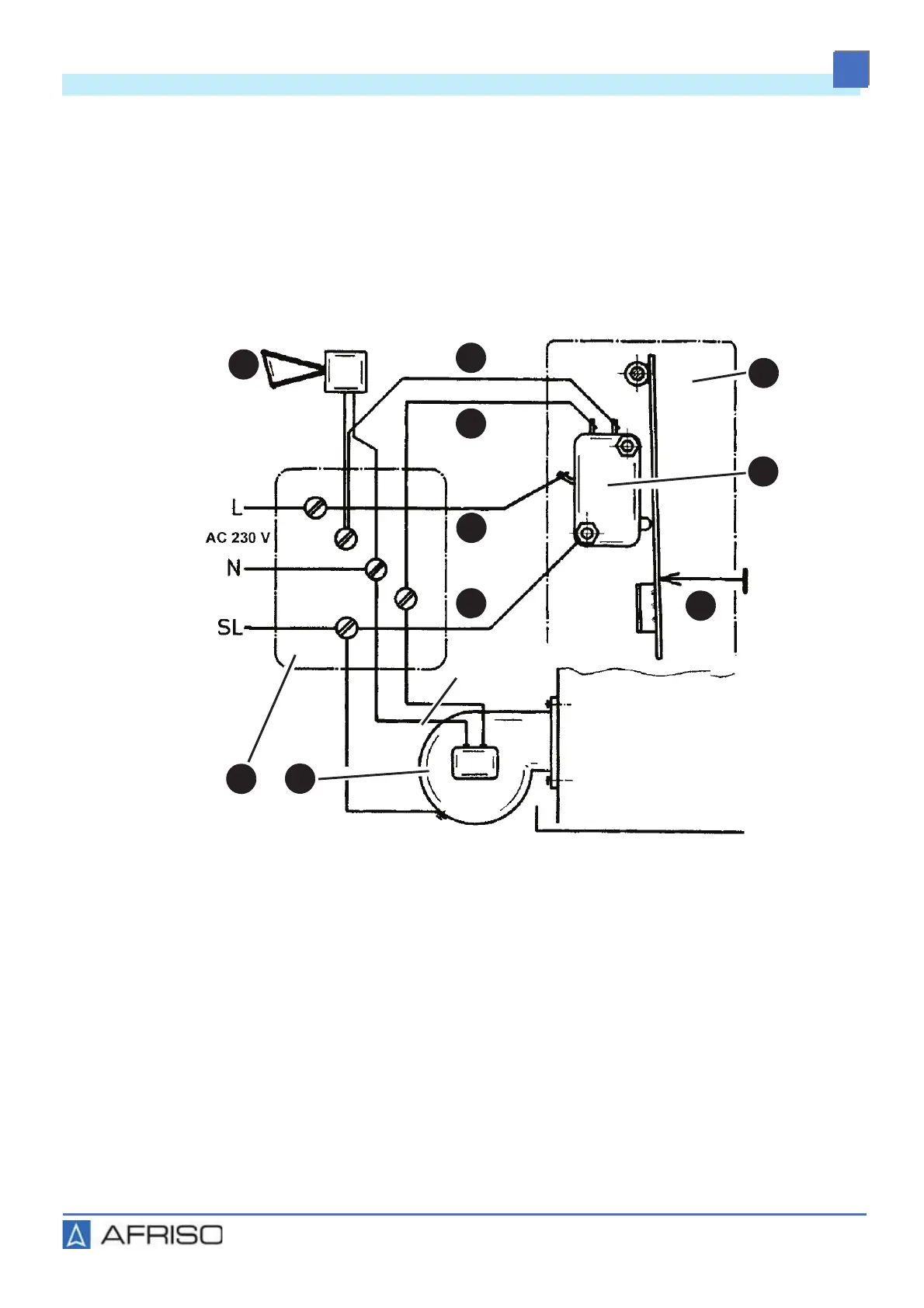

1.
Conn
ect the 4-wire connection cable (1.9 m long) and the connection
line to the burner in a moisture-proof junction box.
A. AC 230 V, horn
B.
Blue
C. Product with locking
D. Changeover contact
E. Unlocking
F. Burner
G. Junction box
H. Green yellow, protective eart
h
con
ductor
I. Black
J. Brown
J
B
I
E
A
H
C
D
F
G
