AG SHIELD Flexicoil PT - Gfs Cab Control Box

29

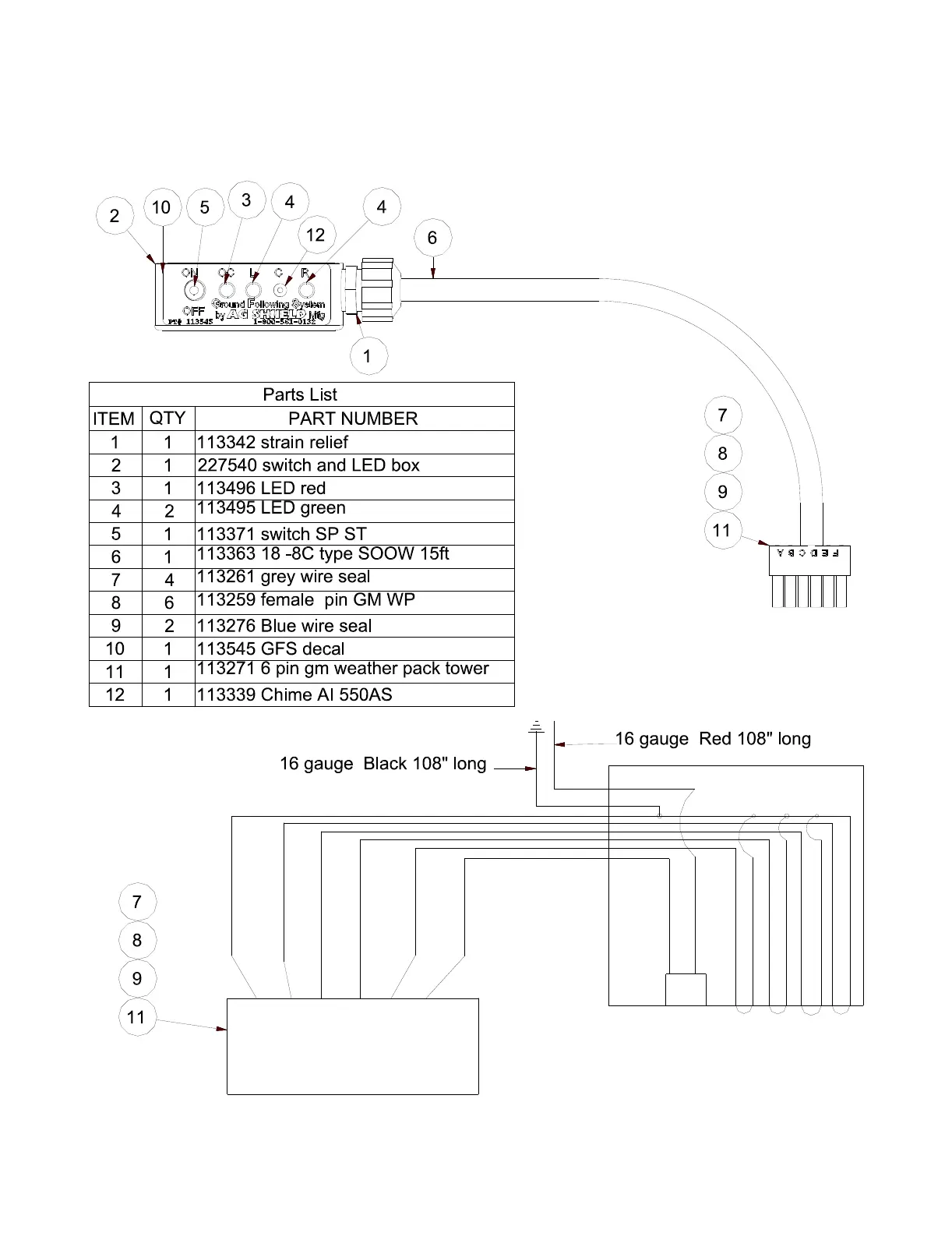

5.1.4 GFS CAB CONTROL BOX
OC L C R
R G G
LED'S
+
-
+
-
+
-
+
-
WHITE X2
A B C D E F
RED X2
ORANGE
BLUE
GREEN
BLACK
12 V FUSED POWER
SUPPLY MAX 15 A
GFS
cab control box #227502
Rev 2 Mar, 2008
ASM carts without 4 wheel drive tractors get 15' #227502
ASM carts with 4 wheel drive tractors get 25' #227545
All others 32' #227507
D2
*Note: stamp D2 onto plug*
