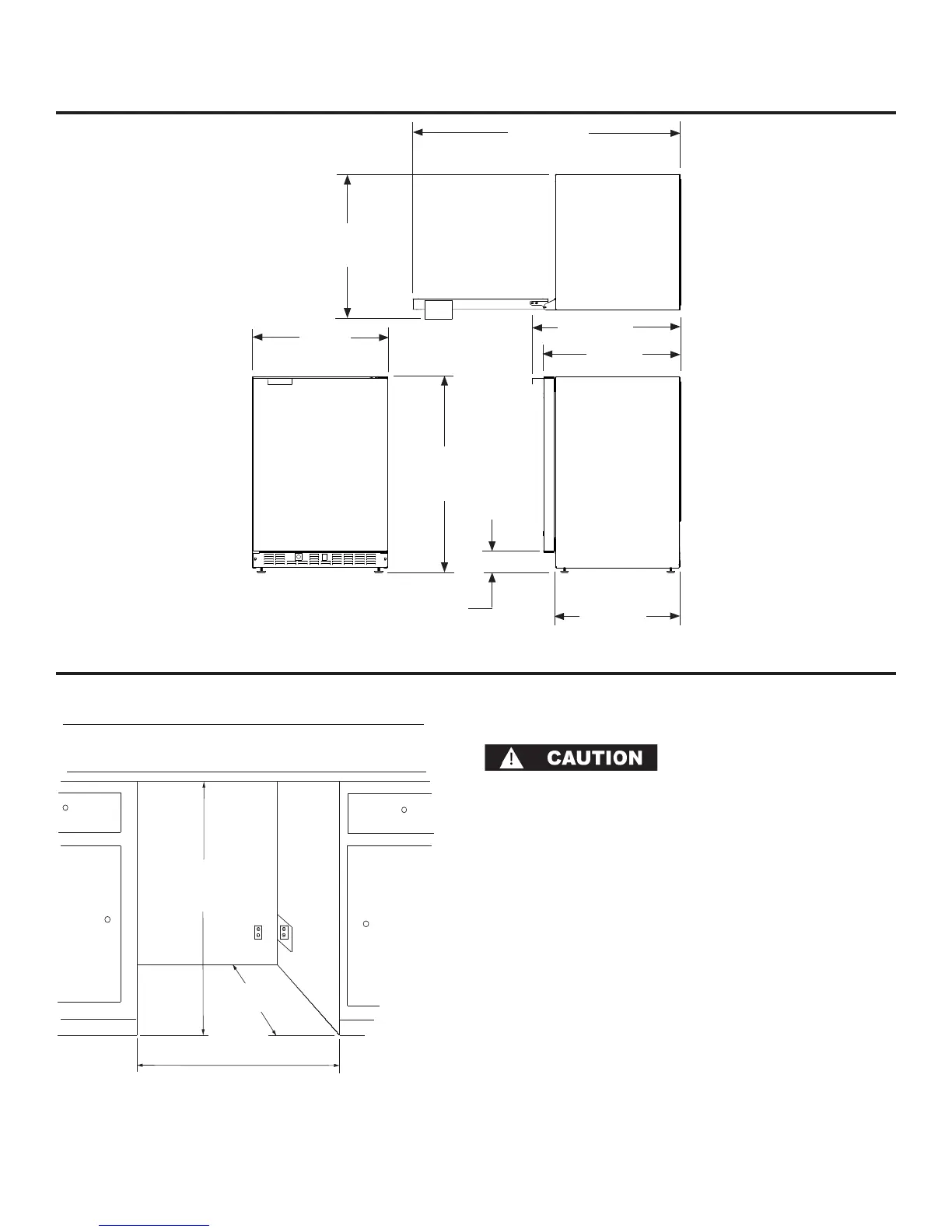

DIMENSIONS FOR 8CRF WITH SOLID DOOR
* Depth dimension may vary depending on
each individual installaon.
Electrical Requirements:
Electrical Requirements: A 115 volt, 15 amp dedicated circuit is
required. A 3 prong grounded receptacle is required.
Power outlet can be located in the back wall behind unit. Add 1”
to depth for thickness of plug, or recess outlet 1” into the wall.
Power outlet can also be installed in adjacent cabinetry with a
cutout for roung of power cord. Follow all local building codes
when installing electrical and unit.
Product weight = 135 lbs. (61.4 kg.)
*24” (61 cm)
standard cabinet
depth
30” (76.2 cm)
ROUGH IN OPENING FOR 8CRF WITH SOLID DOOR
29-7/8”
(75.9CM)
33-3/4” to 34-3/4”
(85.7 to 88.3cm)
3” to 4”
(7.6 to 10.2cm)
52-15/16”
(134.47cm)
25-11/32”
(64.36cm)
24-3/32”
(61.19cm)
22”
(55.9cm)
30-7/8”
(78.44cm)
9
** 34” to 35”
(86.36 to 88.9cm)
** Minimum rough in opening required is to be
larger than the adjusted height of the cabinet.
