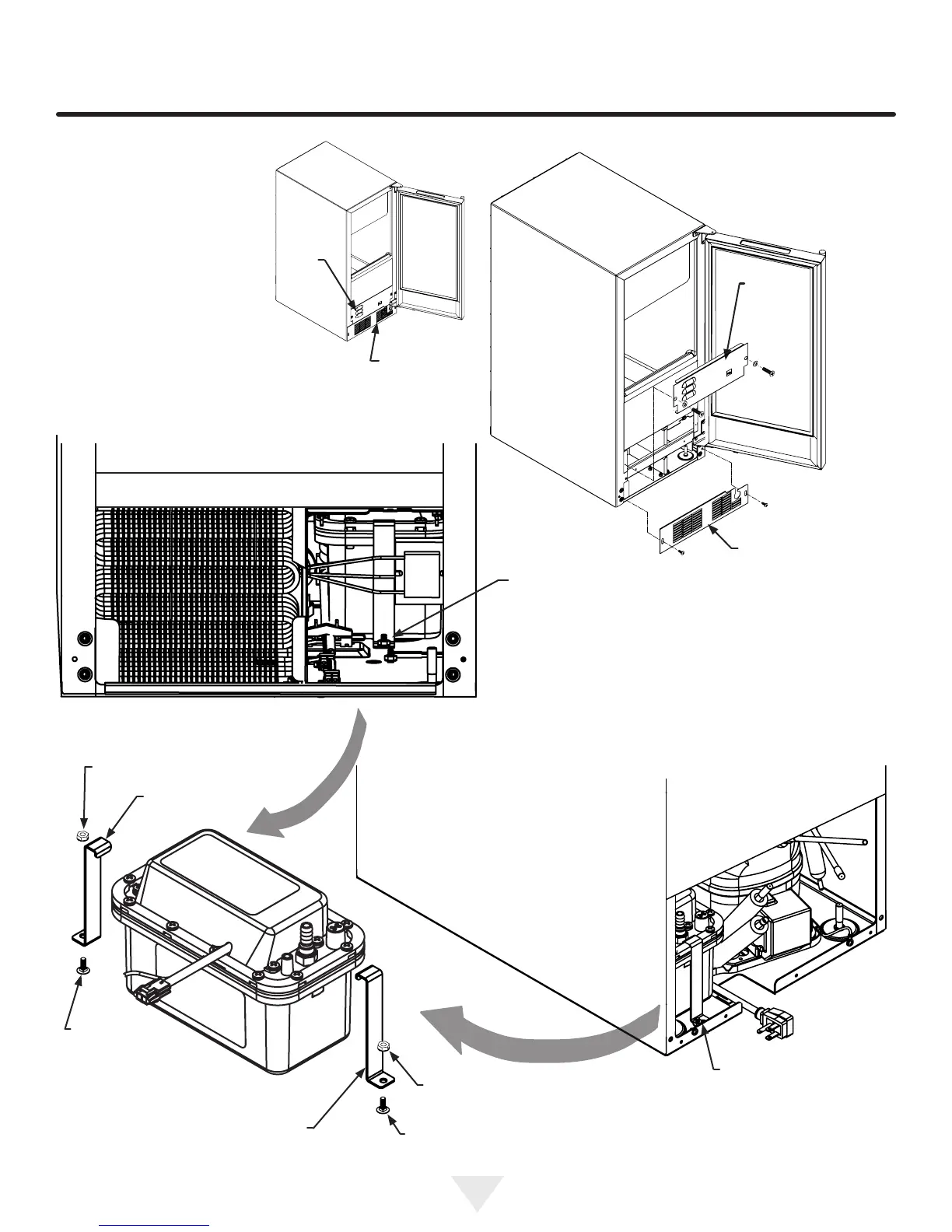

DRAIN PUMP REMOVAL INSTRUCTIONS
Rear of ice machine
Front of ice machine
Remove the
hex nut on
front drain
pump bracket
with the
3
⁄8"
socket then
remove the
bracket.
Remove the hex nut on
rear drain pump bracket
with the
3
⁄8" socket then
remove the bracket.
carriage bolt
carriage bolt
#10-24 hex nut
#10-24 hex nut
Rear drain
pump bracket
Front drain
pump bracket
Figure 44
Figure 44a
Figure 45
Figure 43
Figure 43a
Toe grille
Toe grille
Front
panel
Front
panel
