Kitchen or Internal Space Air Supply
The appliance can only be installed in a room which
meets ventilation regulations in force but in any event the
room must have a permanent vent of minimum free air
area of 36cm
2
Installation pipes should be fitted in accordance with
current Gas Regulations. Pipework from the meter/tank to
the cooker must be of adequate size, cooker connection
size of 15mm Dia. On completion test the gas installation
for soundness and purge in accordance with the above
standard.
A 3Amp 230V~50Hz fused electrical supply is required
adjacent to the appliance. External wiring to the fan unit
must be installed using a 3 core heat resisting 85°C PVC
sheathed cable and in accordance with the current Wiring
Regulations and any local regulations which apply. The

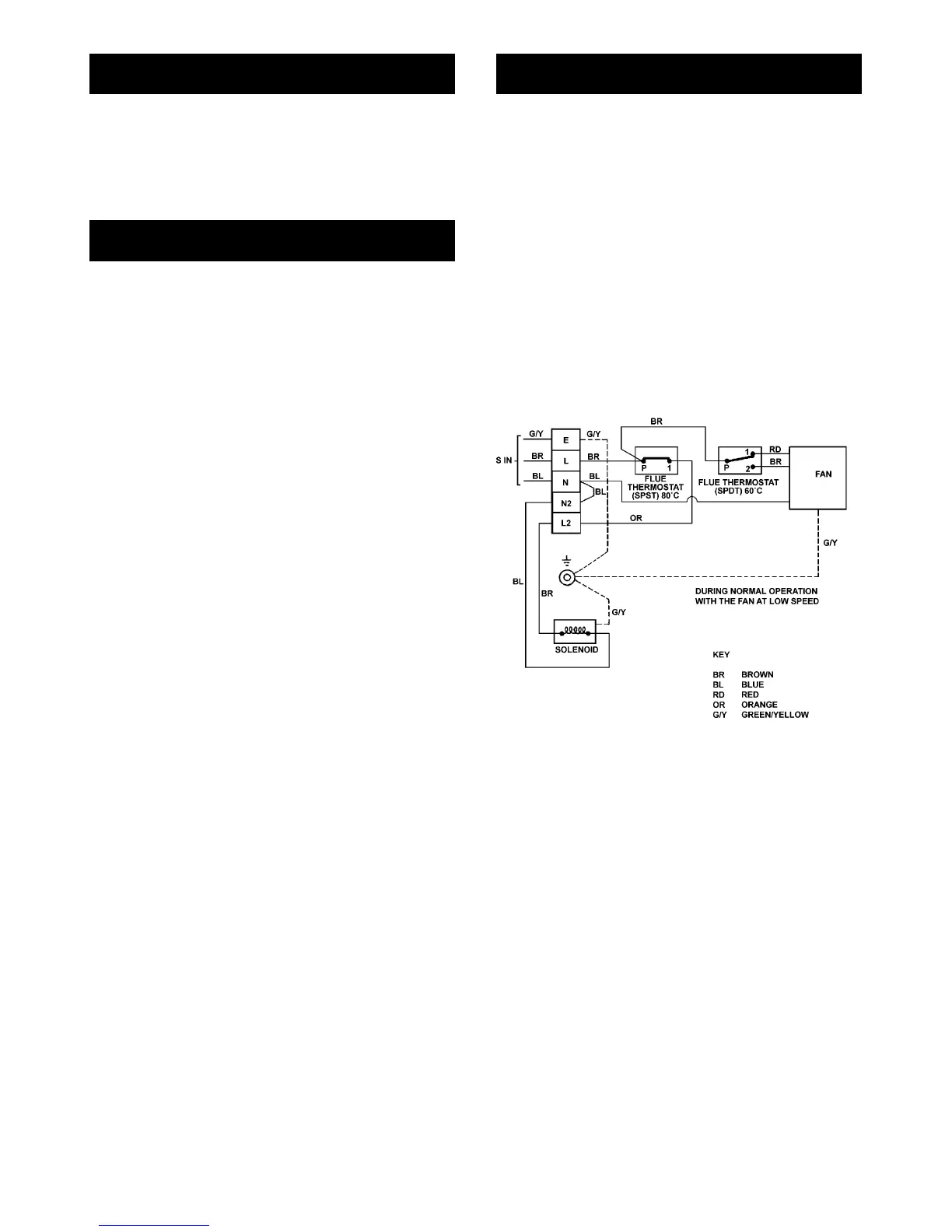

wiring should be completed as indicated:
The method of connection to the mains electricity supply
must facilitate complete electrical isolation of the
appliance, preferably by the use of an unswitched
shuttered socket outlet in conjunction with a fused three
pin plug. Alternatively, a fused double pole switch, having
a contact separation of at least 3mm in both poles, serving
only the appliance may be used.
INSTALLATION PIPES
AIR SUPPLY ELECTRICAL
8
FIG.5
