Assembly Instructions
Step 17:
Step 18:

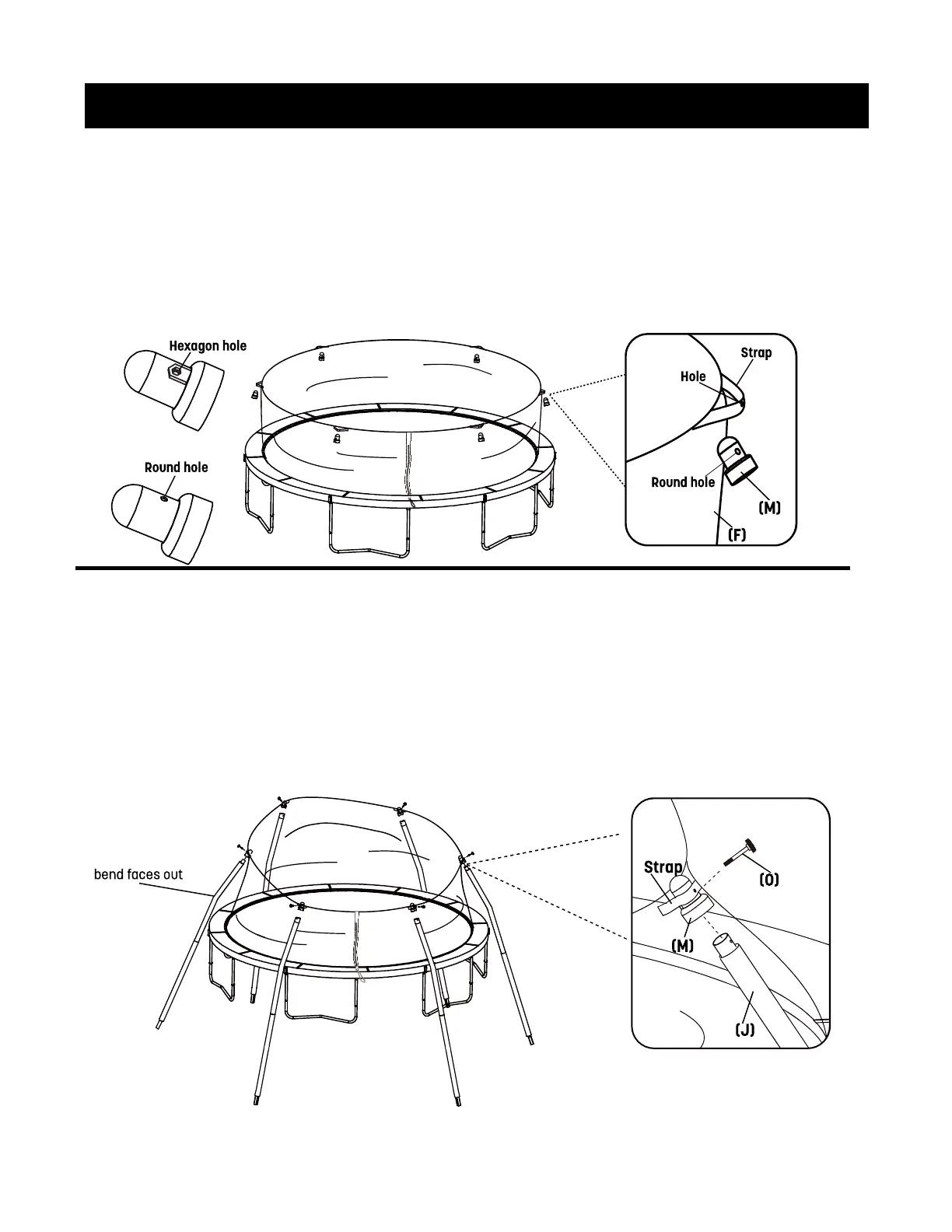

Important: The pole cap (H) has two sides; one with a hexagon hole, and one
with a round hole.
Insert the pole cap into one strap ring found on the top of the enclosure net. Make
sure the hexagon hole is facing the net, and the round hole is facing you.
Next insert a curved tube (J) into the pole cap (M). Make sure the bend of the
enclosure poles are facing out away from the center of the trampoline. Make sure
the holes on the curved tube, pole cap, and strap ring are all aligned. Then insert
a M5x44mm bolt (O) to secure in place. Important: Make sure the bolt goes into
the round hole FIRST (not the hexagon hole) or you could break the pole cap!
Repeat steps 17-18 to assemble the remaining pole caps.
