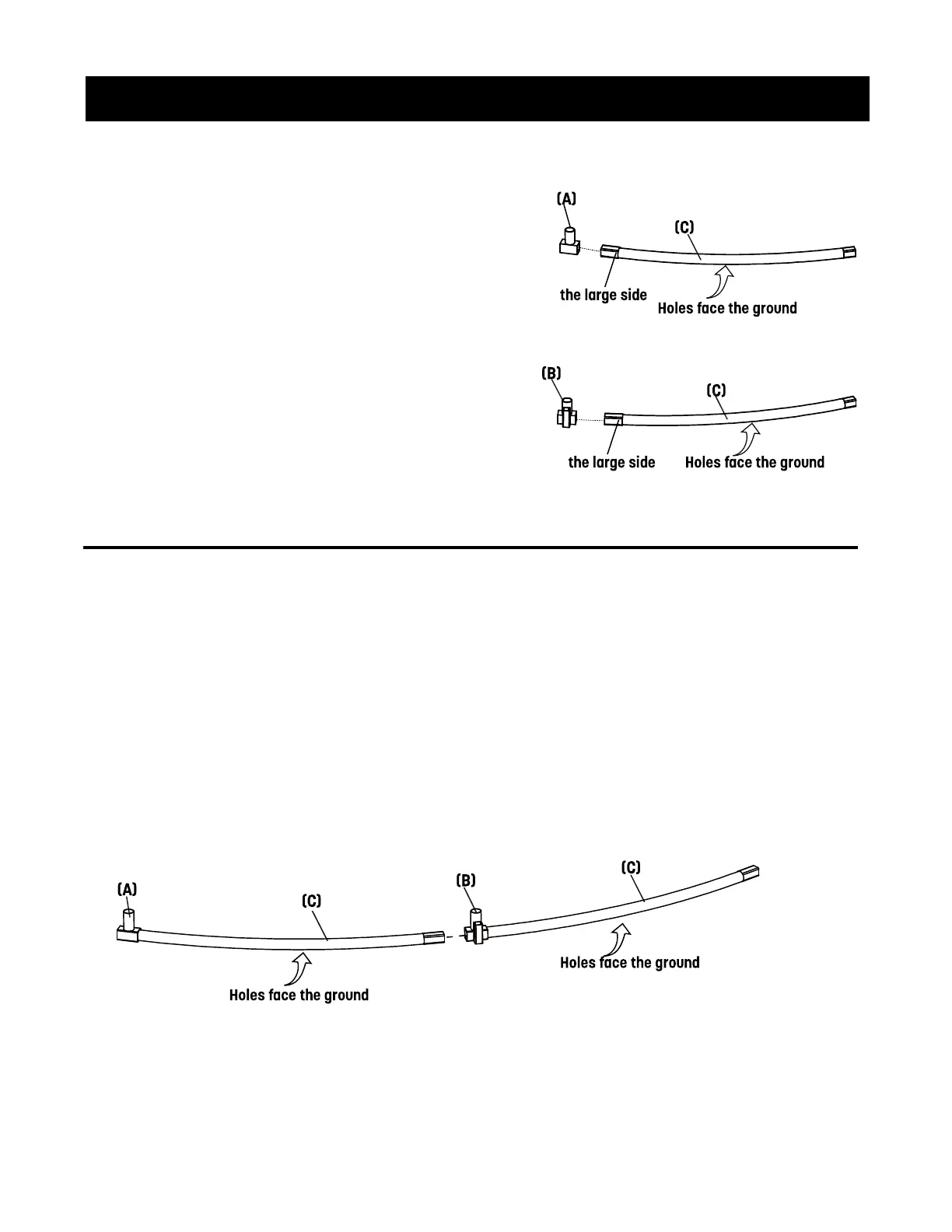

Insert the large side of a top tube (C) into a
T-joint (A). Then insert the large side of
another top tube (C) into a socket (B).
Make sure the holes in the tubes face the
ground!
Now repeat this step with the remaining top
tubes, T-joints, and sockets until you have
6 top tubes with T-joints and 6 top tubes
with sockets.
Insert one top tube (C) with T-joint (A) into one top tube with socket (B). Make
sure the holes in the tubes face the ground! Now repeat this step for the
remaining top tubes with T-joints and top tubes with sockets until you have
assembled 6 sections.
Make sure the T-joints and sockets are alternating!
Assembly Instructions
Step 1:
Step 2:
