Thank you for buying the LT200! Although it is simple to use, we
recommend that you read this manual before operating the laser.
1.1 Description
The LT200 is ideal for general construction, site preparation, and
other leveling applications. It automatically self-levels in horizontal,
can be used for slope match and is totally waterproof.
1.2 Specifications
Recommended use 1,000 ft. (300 m) diameter
Accuracy ± 1/8" @ 100 ft. (± 3 mm @ 30 m)
Self-leveling range ± 8%
Rotation speeds 0 - 90 - 600 rpm
Slope match 5° on both X & Y axes in manual
mode; also, semiautomatic mode with
X in manual, Y in automatic
Laser battery NiCad rechargeable
Charging time 15 hours
Battery life 40 hours
Operating temperature 14° to 122° F (-10°C to 50°C)
Dimensions 5” x 4 3/4” x 8 1/2”
12.5 x 11.5 x 21.9 cm
Weight 7 lbs. (3.5 kg)
Environmental Waterproof (IP67); nitrogen purged
Laser diode 635 nm, visible, <5mW
IEC/CDRH: Class 3R

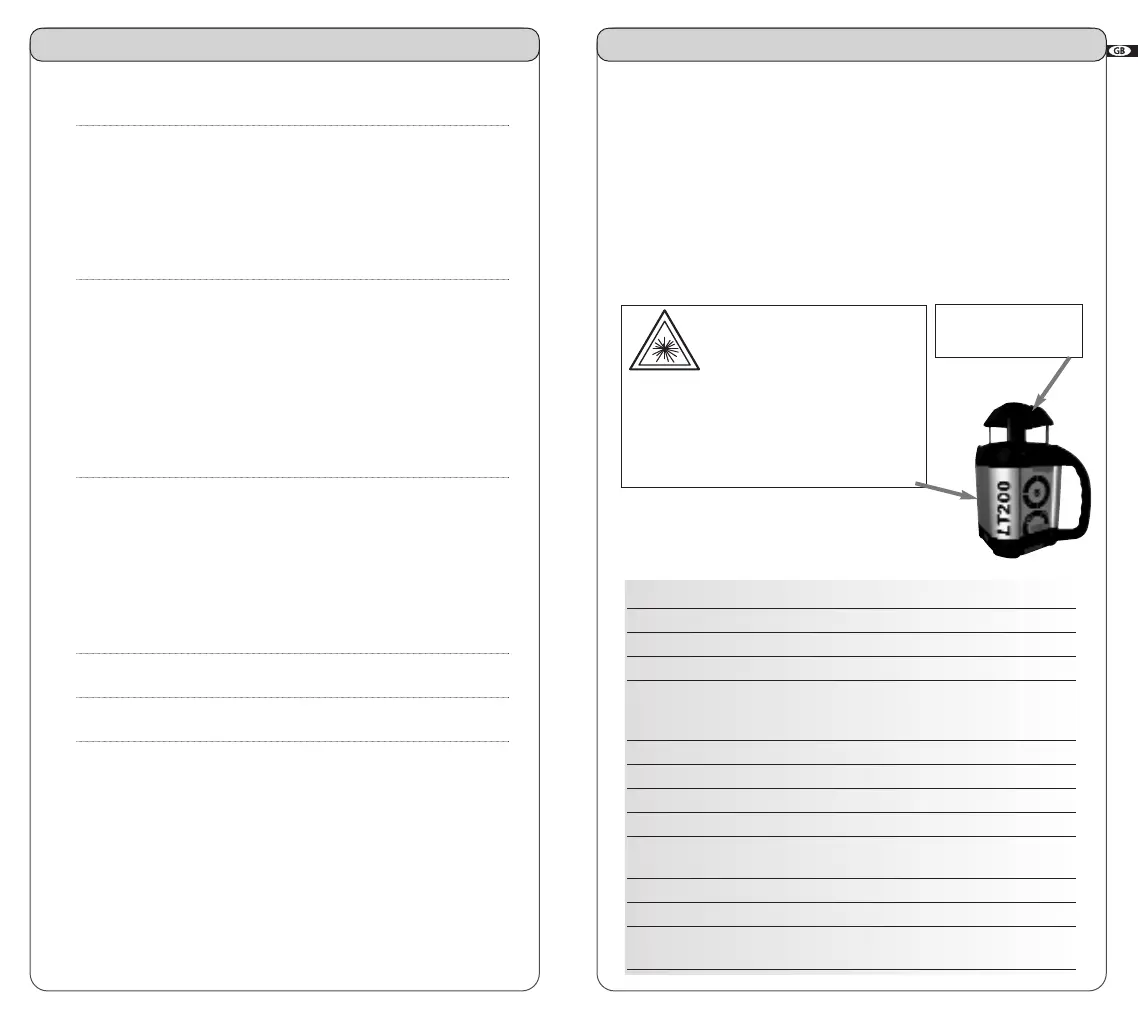

Safety Label
3
2
CAUTION / Certification Label
C
LASS
3R L
ASER
P
RODUCT
W
AVE LENGTH
630-680
NM
M
AX
. O
UTPUT
P
OWER
5
M
W
L
ASER
L
IGHT
: A
VOID DIRECT EYE EXPOSURE
C
ONFORMS TO
IEC 60825-1; 2001
C
OMPLIES WITH
21 CFR 1040.10
AND
1040.11
EXCEPT FOR DEVIATIONS
P
URSUANT TO
L
ASER
N
OTICE
N
O
. 50
D
ATED
J
ULY
26, 2001
1. General information 3
1.1. Description
1.2.
Specifications
1.3.
Laser overview
1.4.
Keypad overview
2. How to use the laser 4
2.1
Horizontal setup
2.2
Turning on the laser
2.3 H.I. Alert
2.4 Rotation speed
2.5
Match slope
2.6
Batteries
3. How to check and calibrate 7
3.1
Calibration
3.2
Fast / Slow blinking
3.3
Moving the beam to calibrate
3.4
Checking and calibrating X and Y axes
3.5
Cone error checking
4. Care and handling 11
5. Warranty 11
6. Accessories 12
6.1
Laser detector overview
6.2
Using the SR200 detector
6.3
SR200 specifications
Table of contents
AVOID EXPOSURE.
L
ASER LIGHT IS EMITTED
FROM THIS APERTURE
.
1. General information
