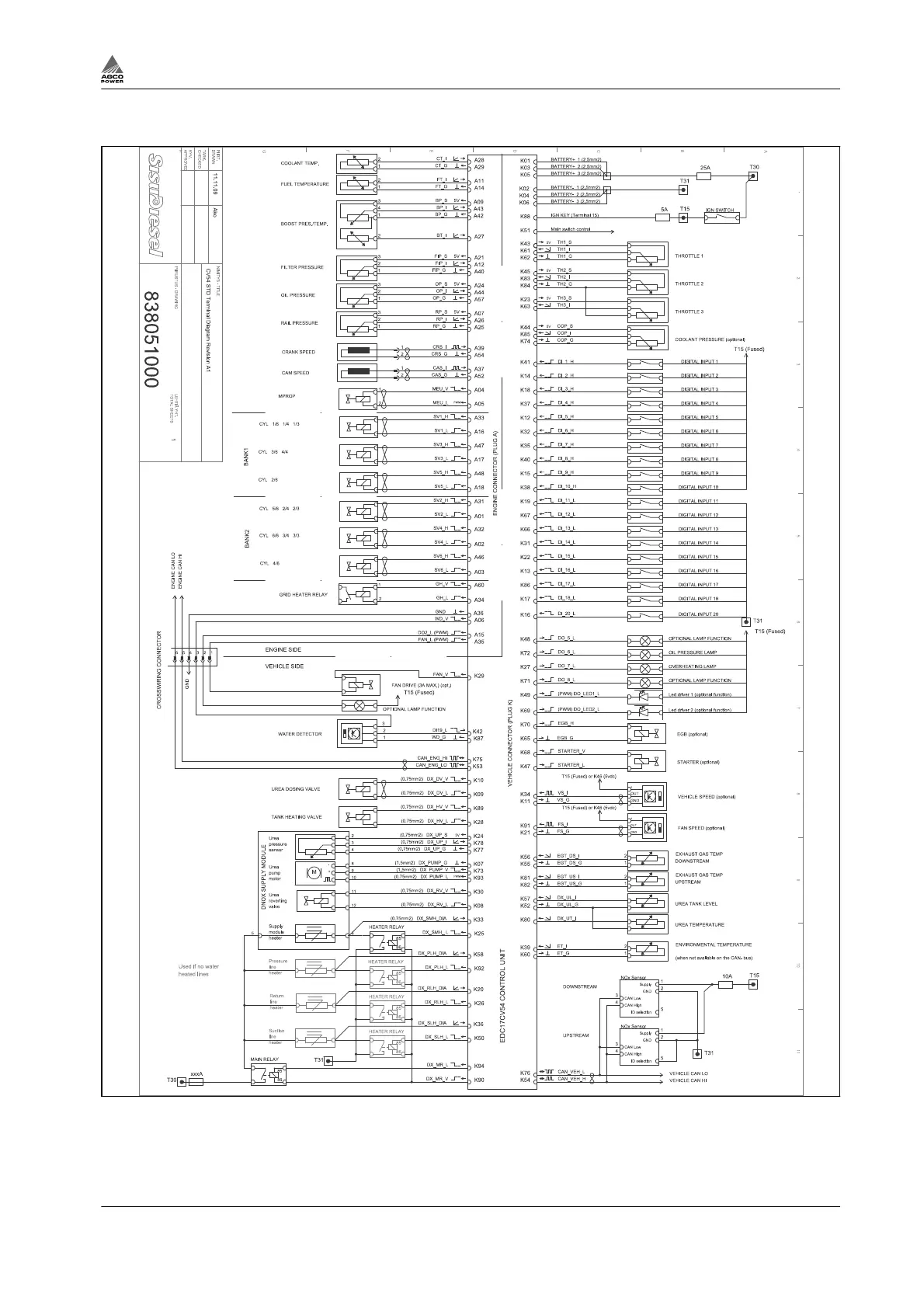

2.5 Terminal diagram (3-6 cylinder engines)

Fig. 14

2. Specifications

4th Generation Engines 2-33

8370 79492
