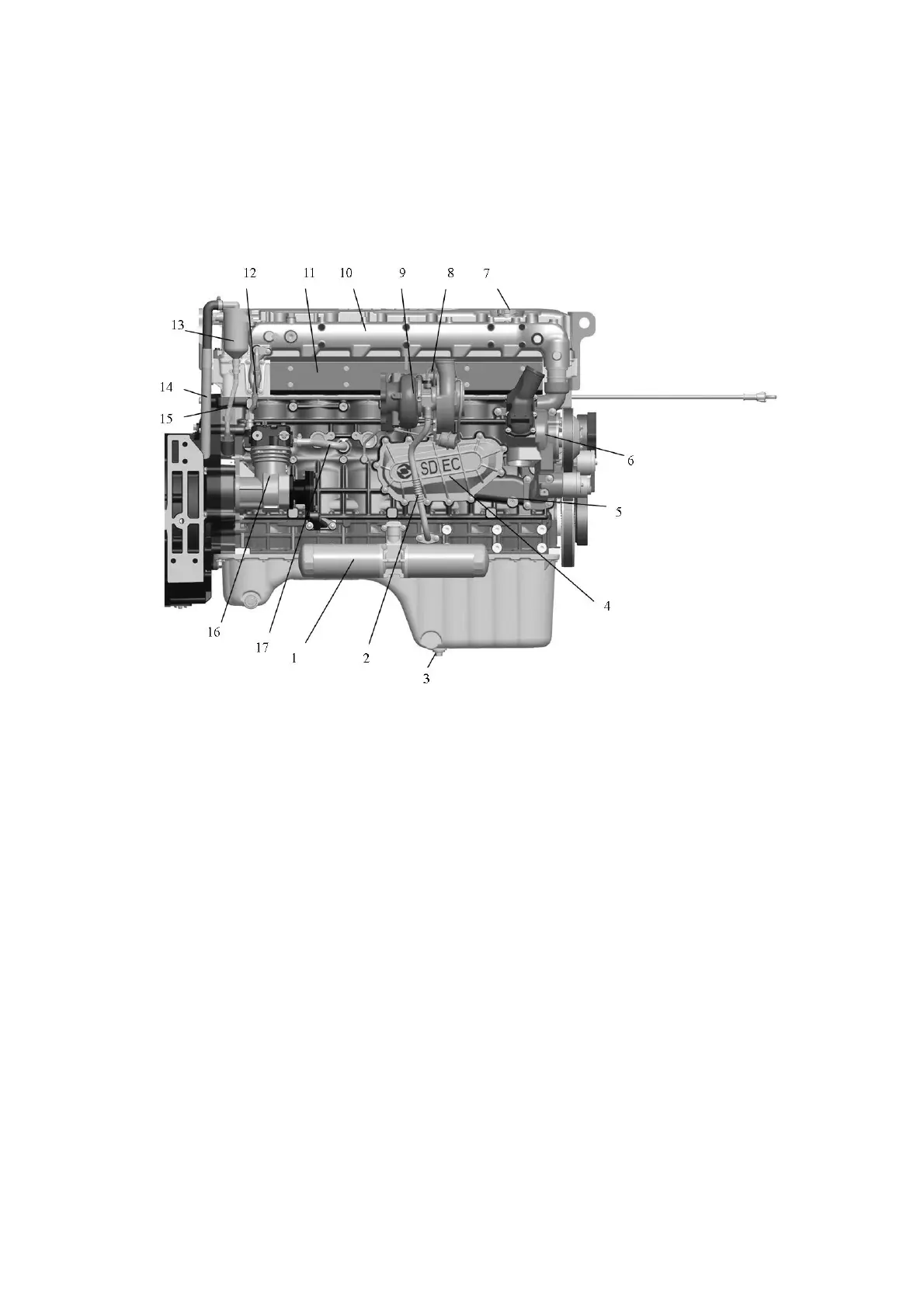

Exhaust Side View
1 Oil filter 2 Turbocharger oil drain pipe
3 Oil drain plug 4 Oil cooler
5 Water drain plug 6 Water pump
7 Oil filler cover 8 Turbocharger oil inlet pipe
9 Turbocharger 10 Engine coolant outlet pipe
11 Exhaust manifold and heat shield 12 Air compressor water outlet pipe
13 Oil separator 14 Crankcase filtration gas outlet pipe
15 Crankcase filtration oil drain pipe 16 Air compressor
