4.6.7 Install the Cross Auger or Cross Drag
Auger Unload
Dryers with a non-extended left, right, or center discharge come with the cross auger pre-assembled on the
dryer. In these cases, skip to step 4. For extended discharges, the cross auger must be installed in the field.
1. Cross augers extended 2' are shipped as a single unit. Cross augers extended further than 2' are shipped as
two units – an intake assembly and an extension assembly. Mount either the 2' extended cross auger or
intake assembly to the spouts on the rear of the dryer using ½" x 1" bolts as shown. The center top cover
may need to be removed for access.

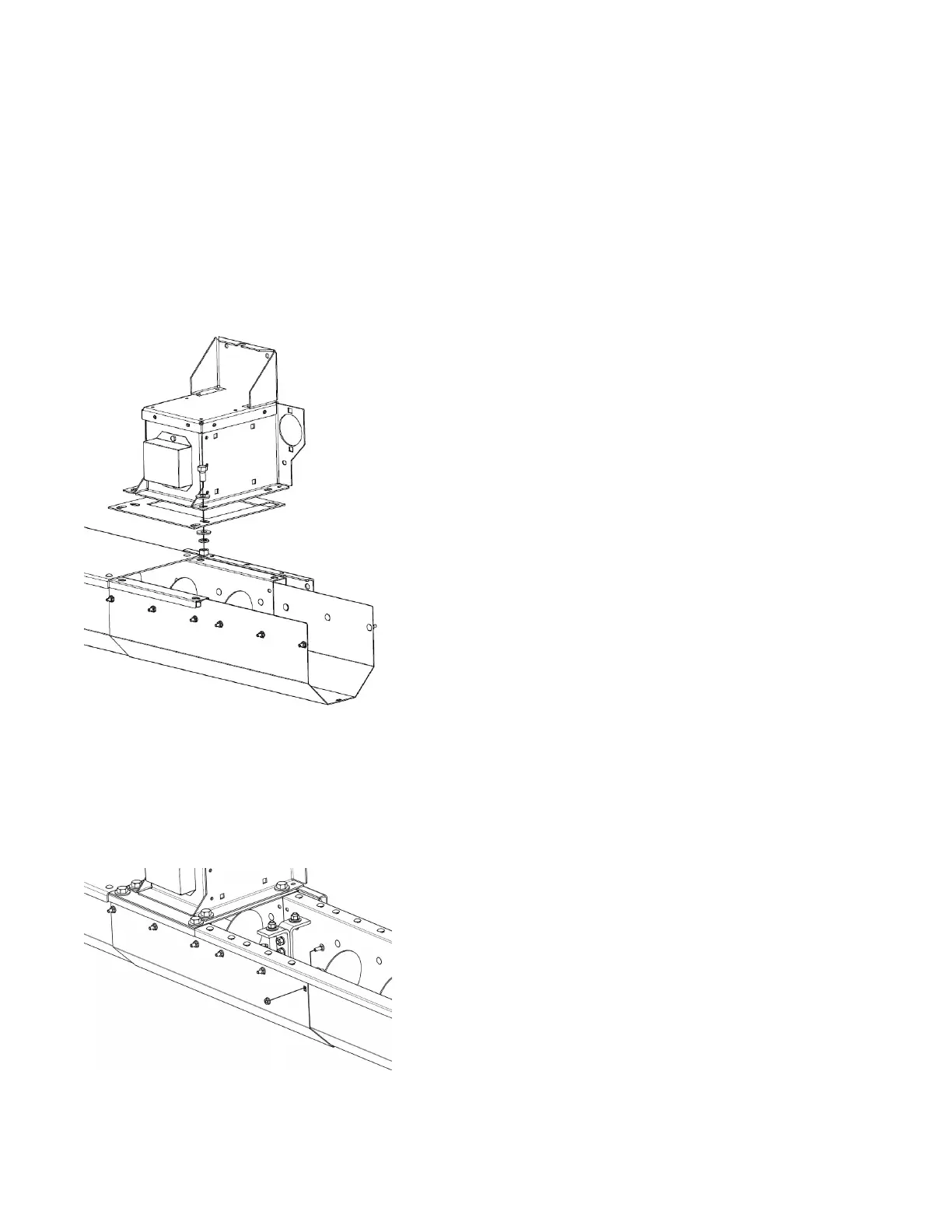

Figure 76. Cross Auger Extension
2. For two-piece cross augers, connect the extension assembly to the intake assembly. The long top cover may
need to be removed for access. Attach the extension trough to the trough splice using ¼" x ¾" carriage bolts
and whiznuts. Connect the extension auger to the connecting shaft on the intake assembly using ½" x 2-1/2"
bolts and locknuts. The auger should be timed such that the ends of the flighting are rotated approximately
180 degrees apart.
Figure 77. Extension Trough
CONTINUOUS-FLOW GRAIN DRYER – COMMANDER CONTROL 4. ASSEMBLY
