110 34980A Service Guide

4 Troubleshooting and Diagnostics

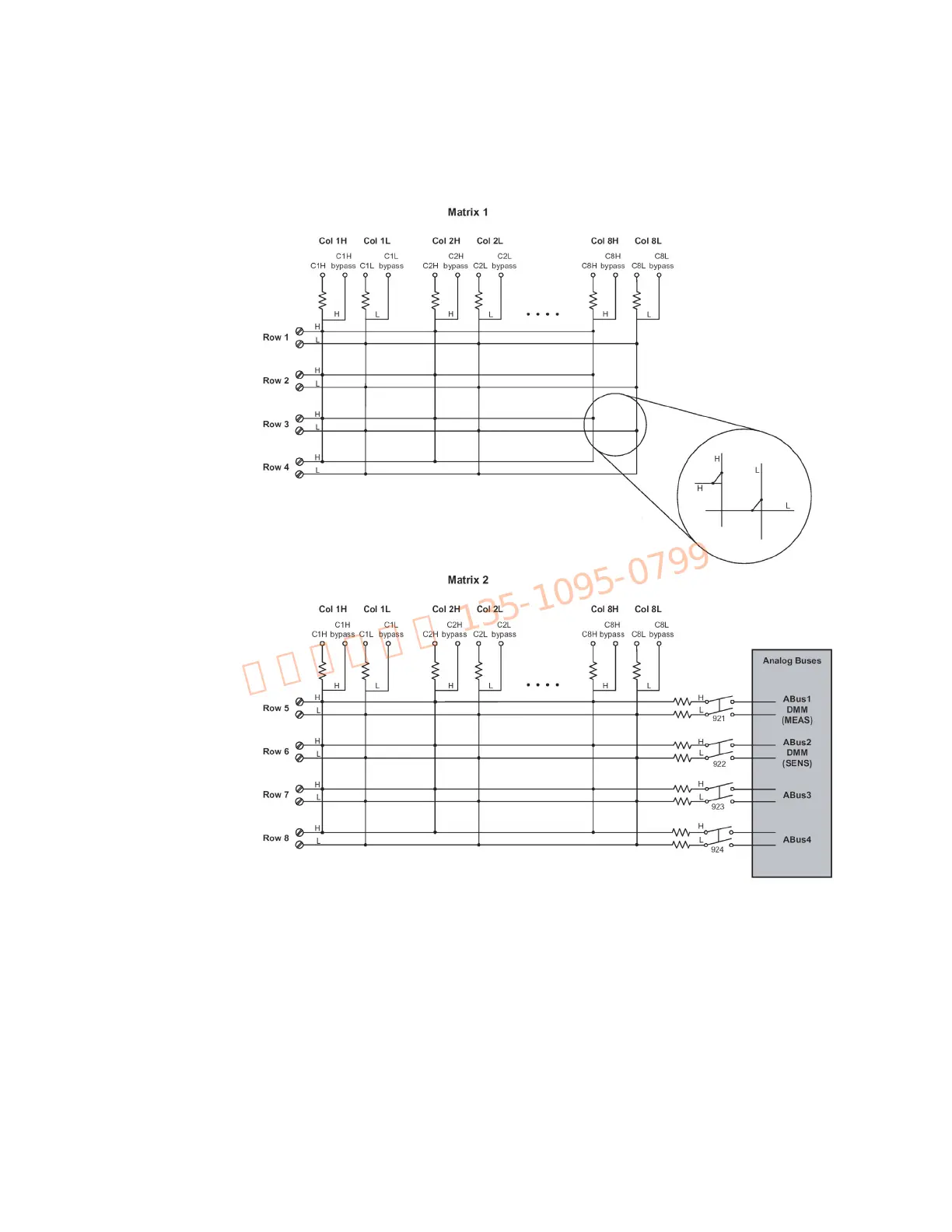

34933A Two-Wire Mode

NOTE:

Matrix Relays: Reed non-latching

Analog Bus Relays: Armature non-latching

NOTE: Although columns are numbered

the same on Matrix 1 and Matrix 2, they

are electrically seperate from one another.

NOTE: All series resistors shown are 100Ω.

NOTE: Three-digit channel numbers are derived from the intersection of the

rows and columns, columns having two digits. The intersectoin shown here

represents Channel 308 (Row 3, Column 8).
