Agilent Technologies 81110A - Page 57

56
Getting Started
S
SS
Se
ee
ett
tttt
tti
ii
in
nn
ng
g g
g U
UU
Up a
p a p a
p a B
BB
Bu
uu
ur
rr
rs
ss
st
t t
t S
SS
Si
ii
ig
gg
gn
nn
na
aa
al
ll
l

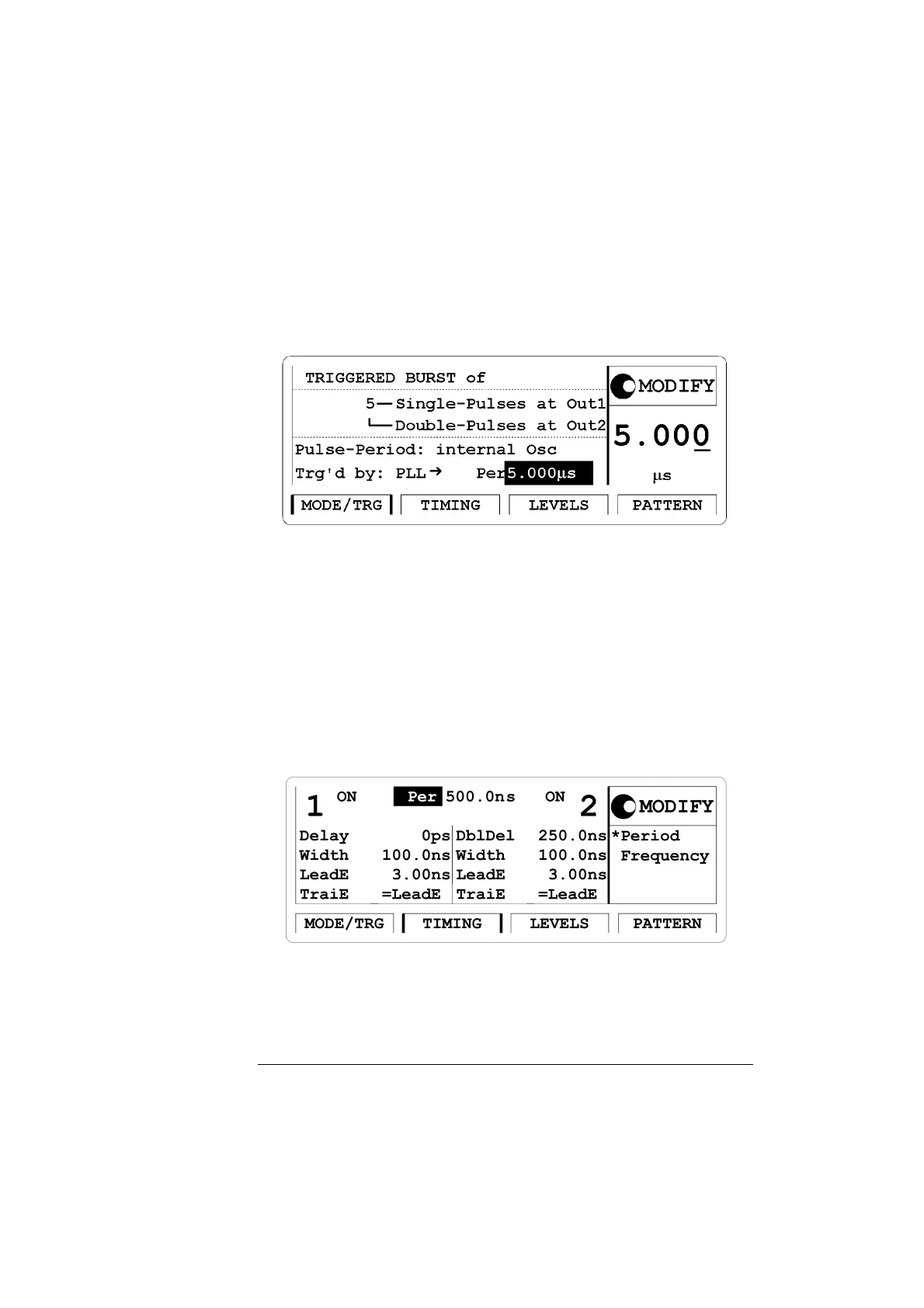

6 Move down and select T
RG

D BY
: PLL → P
ER
and set the burst
repetition to 5.000 µs.
To set the timing parameters as required:
1 Press the TIMING softkey.
2 Switch the output 1 and the output 2 ON.
3 Enter a pulse period of 500 ns. F
4 For output 1 enter a width of 100
NS
, a leading edge of 3 ns and set
the trailing edge to T
RAIL
E = L
EAD
E.
5 For output 2 enter a double pulse delay of 250
NS
, a width of 100
NS
, a
leading edge of 3
NS
and set trailing edge to T
RAIL
E=L
EAD
E.
