The Levels Screen
To access the Levels screen press the LEVELS softkey.
The Levels screen is only available if you have two channels fitted to
your Agilent 81110A or Agilent 81104A mainframe and you have selected
G
ROUP
P
ARAMS
BY
: TIMING/LEVELS on the Configuration screen.

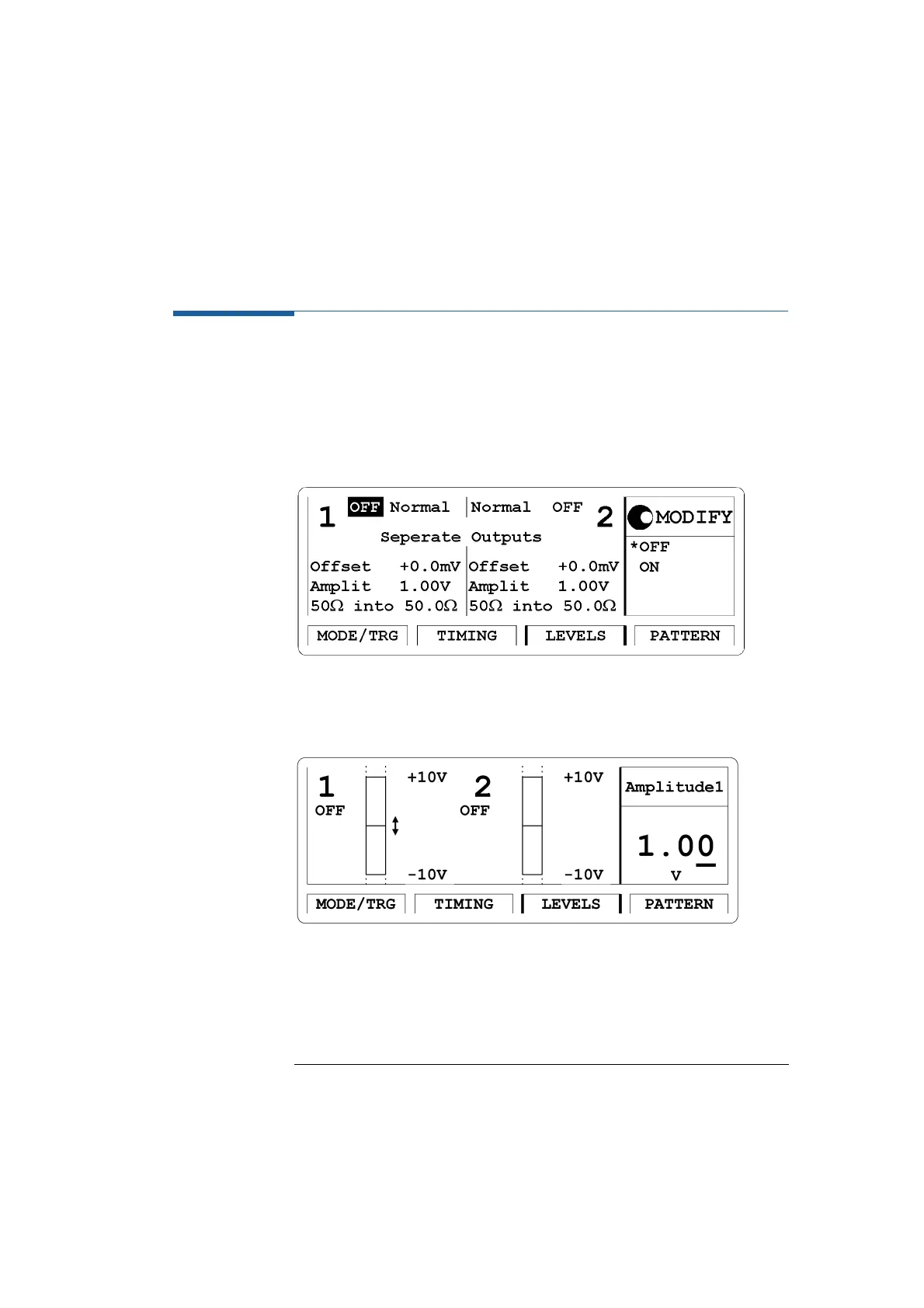

When you press SHIFT + MORE (GRAPH) or the LEVELS softkey, you
will see a graphical representation of the level parameters. The currently
selected parameter is displayed in the Modify/Enter area and is indicated
in the graphical display.
Use the Levels screen to view and control the pulse-level parameter for
both channels on one screen. If you have a single channel instrument
both the timing and level parameters are displayed on the Output screen
(see The Output Screens on page 106).
