9
1. One-port or enhanced-response calibration.
2. Enhanced-response or response-only calibration.
3. 2 dB less with Option 004.
4. Option 004 may degrade uncorrected source
match as much as 2 dB.

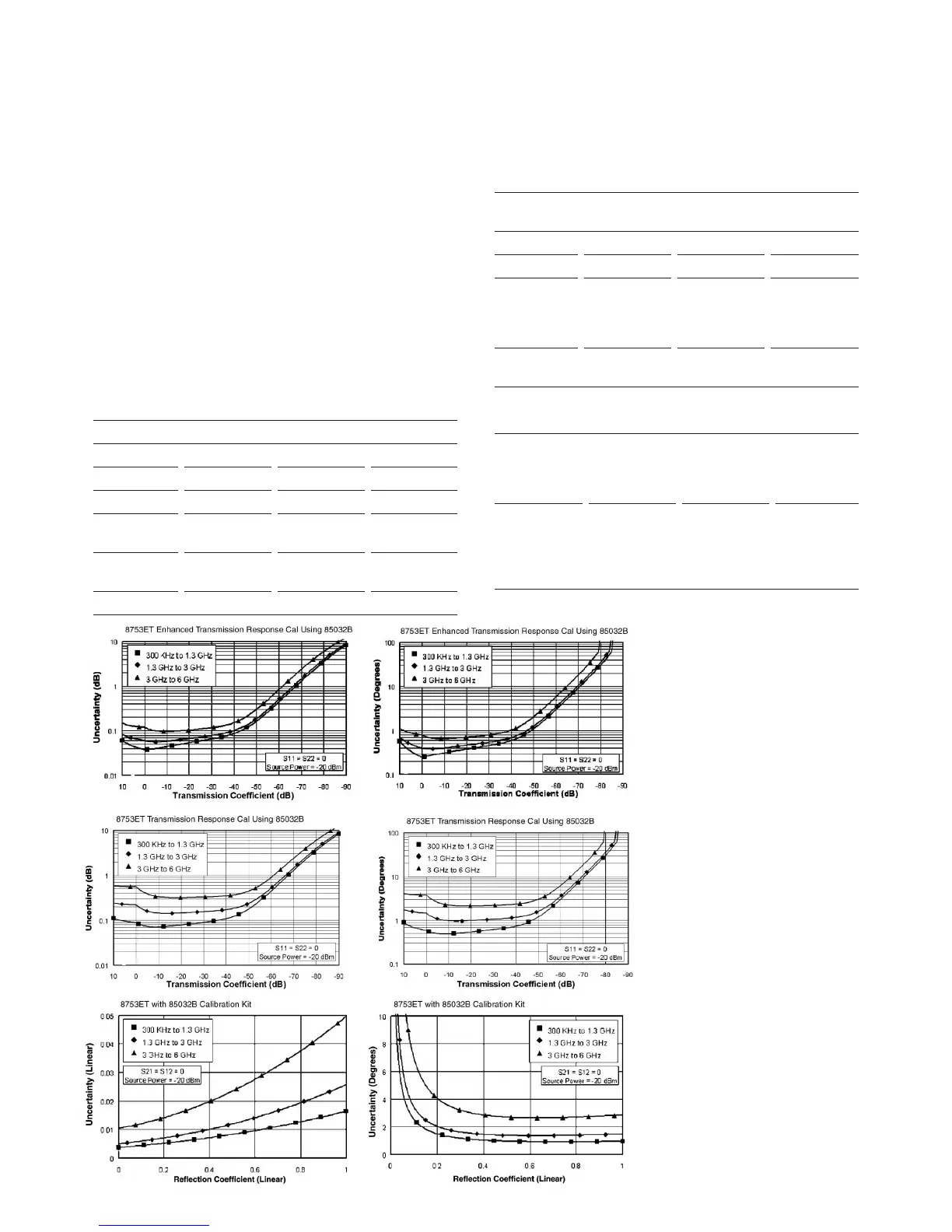

Transmission uncertainty
(enhanced-response calibration)
Transmission uncertainty
(response calibration)
Reflection uncertainty
(one-port calibration)
Agilent 8753ET (50-ohm systems)
Type-N test ports
Configuration
Network analyzer 8753ET Standard,
Option 006, or Option 004
Calibration kit 85032B
Test port cable Part number 8120-4781
System dynamic range
300 kHz to 16 MHz 100 dB
16 MHz to 3 GHz 110 dB
3 GHz to 6 GHz 105 dB
Measurement Port Characteristics
Frequency Range
Uncorrected 300 kHz–1.3 GHz 1.3 GHz–3.0 GHz 3.0 GHz–6.0 GHz
Directivity 30 dB 24 dB 19 dB
Source match
4
25 dB 20 dB 14 dB
Load match 24 dB 19 dB 16 dB
Reflection ±1.0 dB ±1.0 dB ±2.0 dB
tracking
Transmission ±1.5 dB ±1.5 dB ±2.5 dB
tracking
Crosstalk 100 dB 100 dB 90 dB
Measurement Port Characteristics (continued)
Corrected
Reflection
measurements
1
300 kHz–1.3 GHz 1.3 GHz–3.0 GHz 3.0 GHz–6.0 GHz
Directivity 50 dB 47 dB 40 dB
Source match 42 dB 36 dB 31 dB
Load match
One-port cal 24 dB 19 dB 16 dB
Enhanced- 24 dB 19 dB 16 dB
reflection cal
Reflection ±(0.009 dB ±(0.019 dB ±(0.07 dB
tracking +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)
Transmission
measurements
2
Source match
Enhanced- 42 dB 36 dB 31 dB
response cal
Response-only cal
3
25 dB 20 dB 14 dB
Transmission tracking
Enhanced- ±(0.006 dB ±(0.018 dB ±(0.054 dB
response cal +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)
Response-only cal ±(0.033 dB ±(0.1 dB ±(0.27 dB
+0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)
