6 Installation Guide
E440xBU Option H70 Installation
2. Connect the new cable (E4440-60422 #51) to the A8A1A1 Reference /Third Converter
board IF INPUT SMB 321.4 MHz connector. Route the cable through the RF mid
section for later connection to the 70 MHz IF Board 321.4 MHz IF OUTPUT (J5).

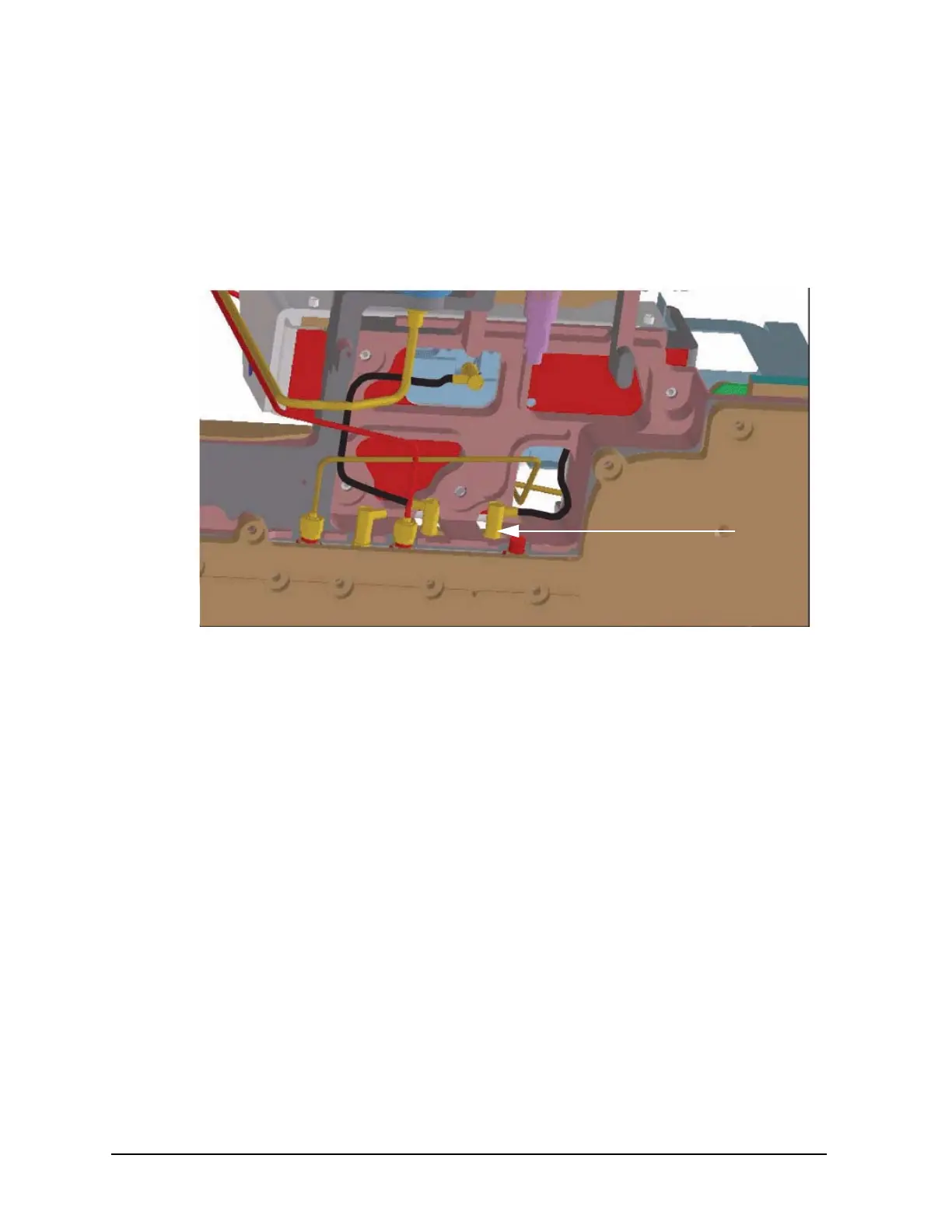

Figure 3 321.4 MHz IF cable to Third Converter
E4440-60422 (#51)
