3
ESG family of
RF signal generators
The ESG family consists of four
series:
ESG-A series: analog instruments
ESG-AP series: analog instruments
with high spectral purity.
ESG-D series: digital and analog
instruments.
ESG-DP series: digital and analog
instruments with high spectral
purity.
Refer to table 1 for a list of the
model numbers and their associated
capabilities including frequency
range, spectral purity, and modula-
tion capability.
In keeping pace with ever-changing
digital communication standards,
Agilent Technologies is the leading-
edge supplier of the latest signal-
generator technology. To meet your
evolving needs, Agilent Technologies
constantly enhances the ESG family
feature set. The latest released
features are available as firmware
for you to download online. In
most cases, firmware up-grades
can be done without any hardware
modification. If a hardware modifi-
cation is required, instructions
are given on the Web page. The
ESG’s address is
www.agilent.com/find/esg. Here
you will find the latest news on the
ESG including firmware upgrades,
frequently asked questions and new
features.
Please consult the Agilent Technologies
ESG family RF digital and analog
signal generators brochure, and the
technical specifications for more
information. For your reference, a
list of related literature is shown at
the end of this profile.
Key standard features
• Expandable architecture
• Broad frequency coverage
• Choice of electronic or mechanical
attenuator
• Superior level accuracy
• Wideband FM and ΦM
• Step sweep (frequency, power
and list)
• Built-in function generator
• Lightweight, rack-mountable
• 3-year warranty
• 2-year calibration cycle
• IntuiLink PC software
1
Standard features only in the
ESG–D/DP series
• Broadband analog I/Q inputs
• I/Q adjustment capabilities and
internal calibration
• Excellent modulation accuracy
and stability
• Coherent carrier output

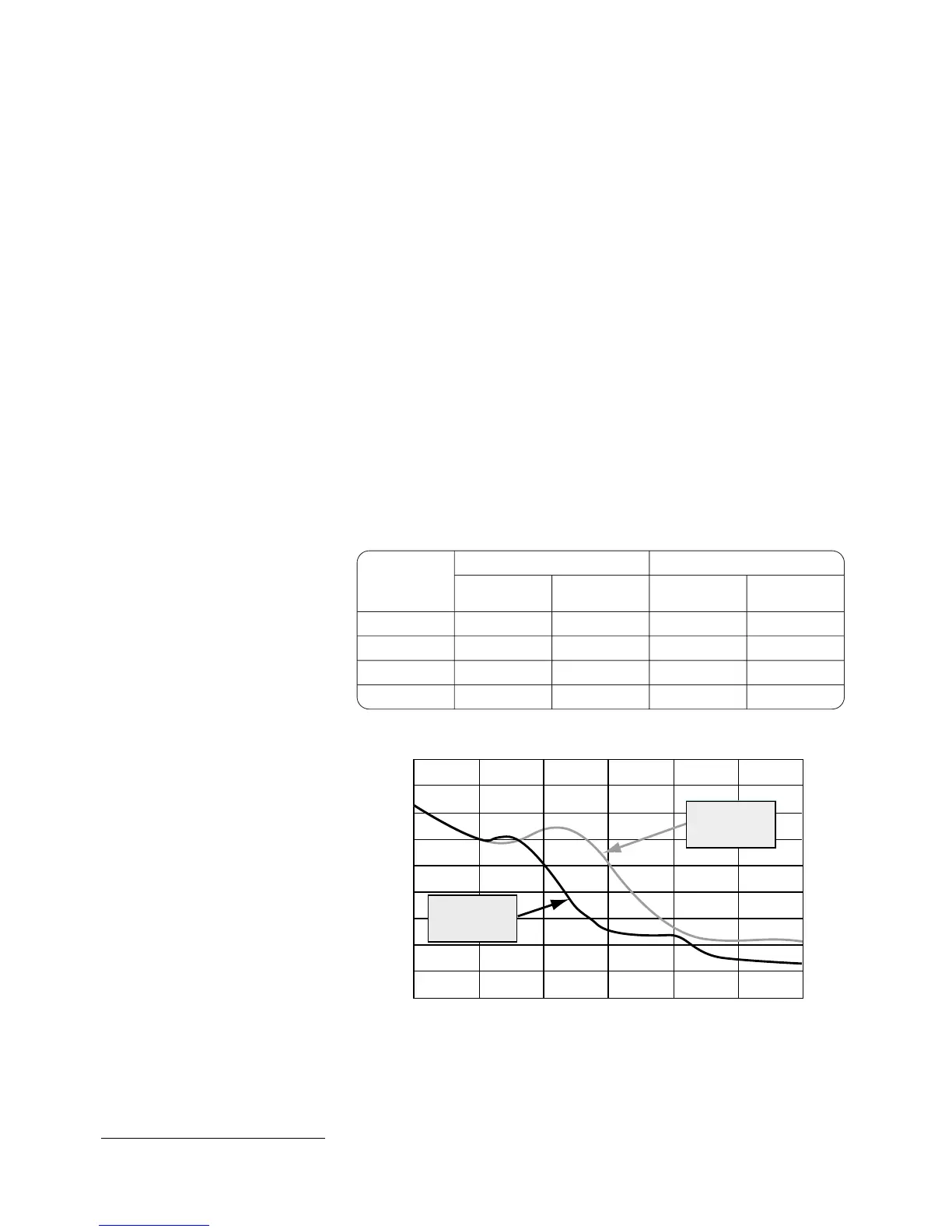

Analog only Digital and analog
ESG-A series ESG-AP series ESG-D series ESG-DP series
(high spectral purity) (high spectral purity)
250 kHz – 1 GHz E4400B E4423B E4430B E4434B
250 kHz – 2 GHz E4420B E4424B E4431B E4435B
250 kHz – 3 GHz E4421B E4425B E4432B E4436B
250 kHz – 4 GHz E4422B E4426B E4433B E4437B
dBc/Hz
10
100 1000 10000 100000 1000000
–70
–80
–90
–100
–110
–120
–130
–140
–150
–160
Offset (Hz)
10000000
ESG-DP
ESG-AP
ESG-D
ESG-A
Choosing a model number
Typical SSB phase noise at 1 GHz (for additional phase noise plots, please refer to ESG Family
of RF Signal Generators, Data Sheet, literature number 5965-3096E.
1. IntuiLink software included free. For more information see page 26.
