Agilent Technologies E4433B Installation Notes

Installation Note E4400-90214 9

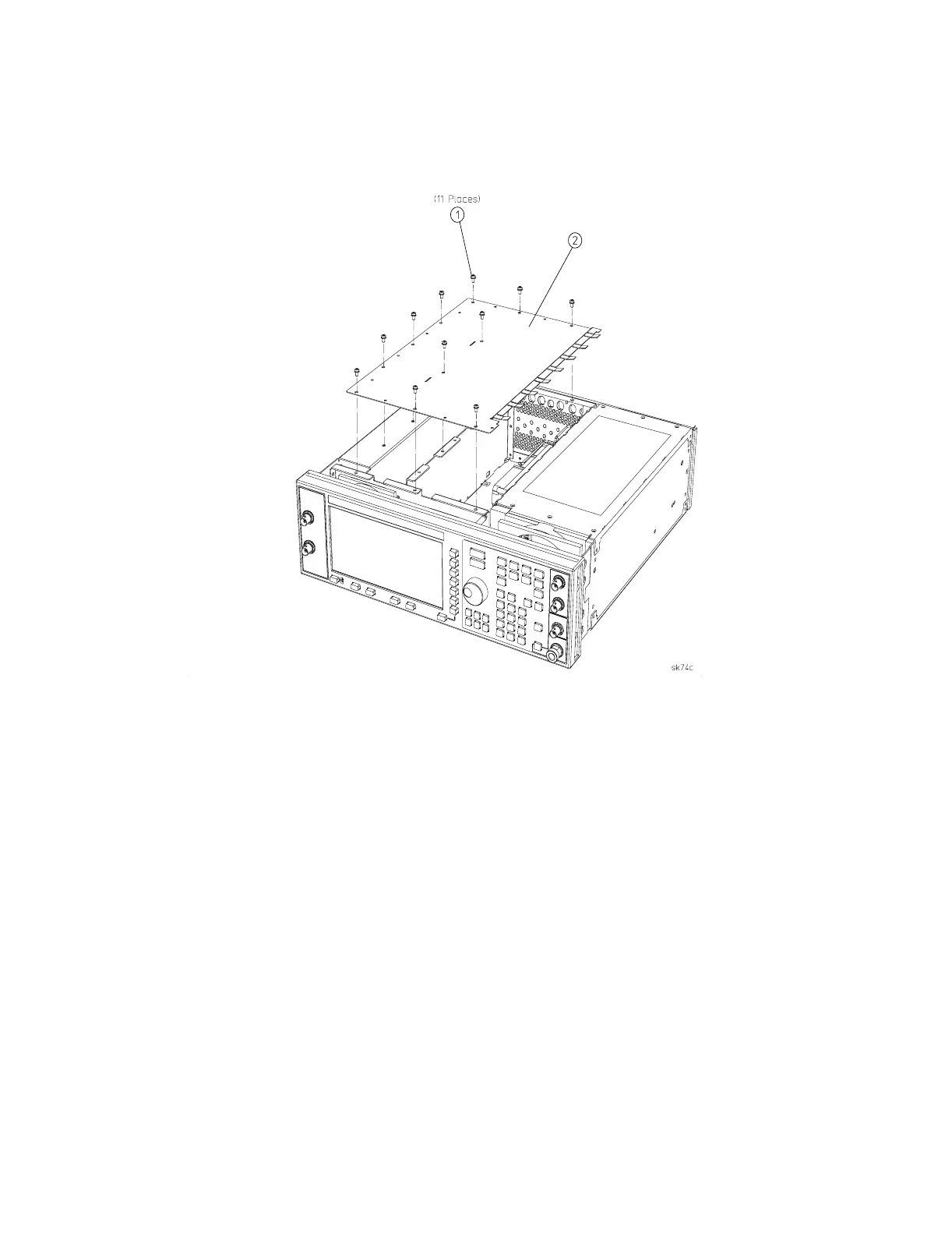

Figure 2 Top Chassis Cover Removal
Remove the Standard Signal Generator Rear Panel
1. Refer to Figure 3 on page 10. Remove the 15 screws (item 2) that secure the bottom chassis cover
(item 3) and lift the chassis cover off.
2. Refer to Figure 4 on page 11. Disconnect A16W1 from the power supply (A4). Access to A16W1 can
be gained through an opening in the bottom of the power supply shield (item 1, Figure 3).
