ESG Family Signal Generators Hardkey and Softkey Reference
LF Out
User’s Guide 4-51
LF Out

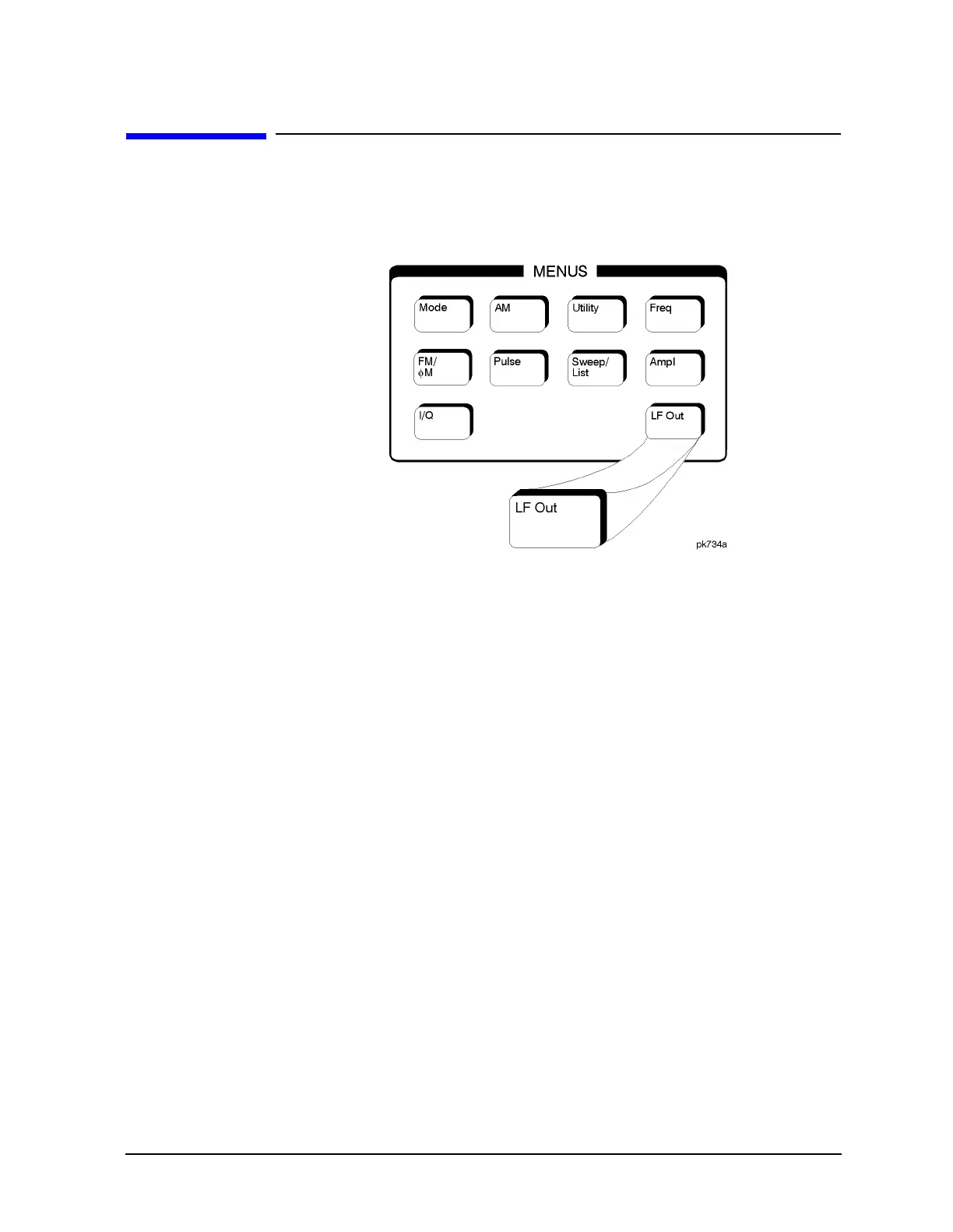

Pressing the front panel LF Out key reveals a menu of softkeys for
configuring the internal low frequency generator. These softkeys are
described in this section in alphabetical order.
Bus
This softkey is one of the choices in the LF Out Sweep Trigger menu.
With
Bus selected, you use the GPIB to trigger single sweeps of
swept-sine low frequency output.
Softkey Location:
LF Out > LF Out Source > Function Generator >
LF Out Waveform > Swept-Sine > LF Out Sweep Trigger > Bus
DC
This softkey lets you specify DC as the waveform for the LF output
signal.
This softkey is only active when you have selected the internal source to
operate as a function generator.
Softkey Location:
LF Out > LF Out Source > Function Generator >
LF Out Waveform > DC
