Installation Note E4440-90597 9
Installation Procedure
Remove the RF Input Connector
1. Refer to Figure 4. Using a 5/16 inch wrench, disconnect the semi-rigid cable (1) from
the A14 attenuator.
2. Using the T-10 driver, remove the 2 screws (2) that secure the input connector
bracket to the deck.
3. Remove the connector and bracket from the instrument.

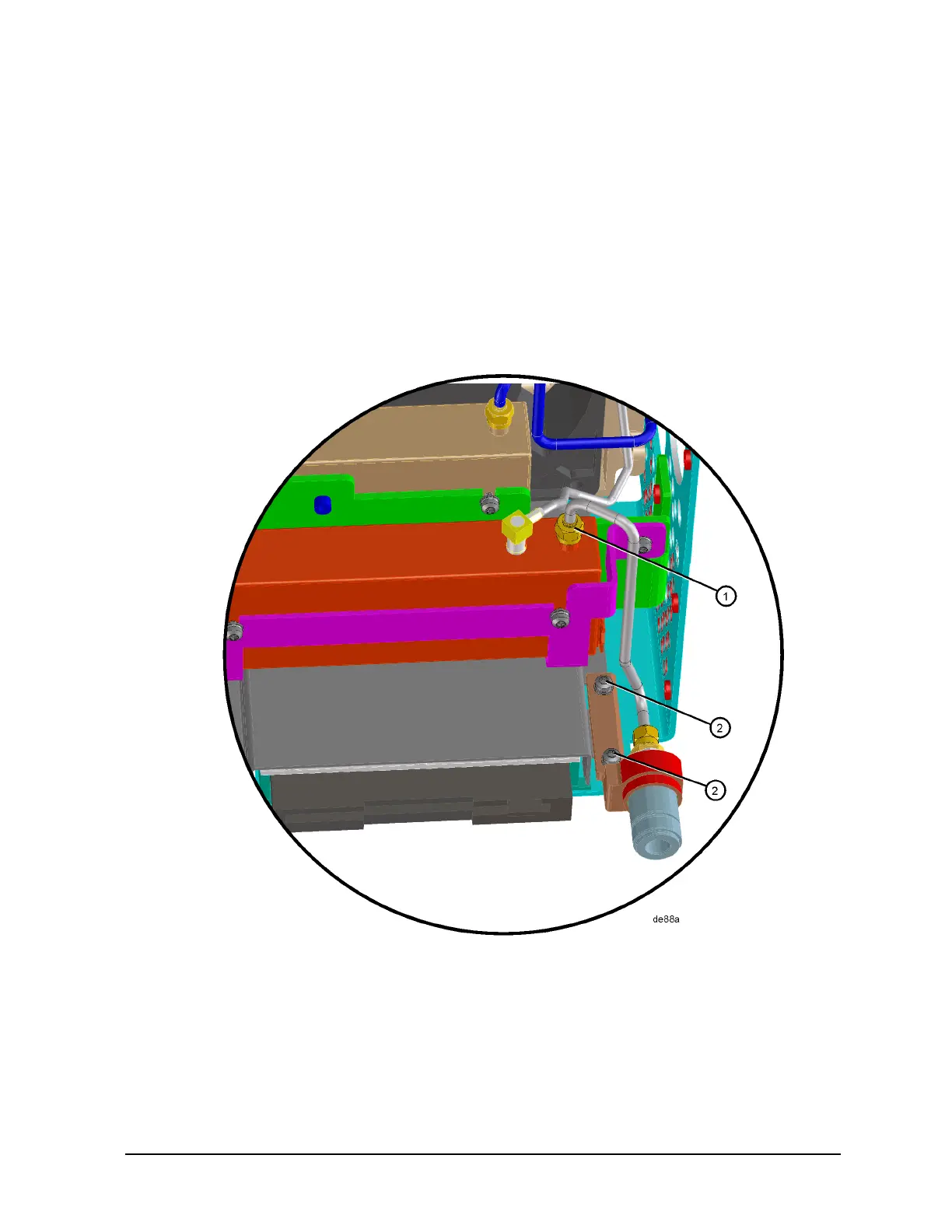

Figure 4 Remove Connector and Cable
