48 Chapter 4
Viewing Catalogs and Saving Files
File Menu Functions
Press File, Catalog to bring up a screen display as shown in Figure 4-1.

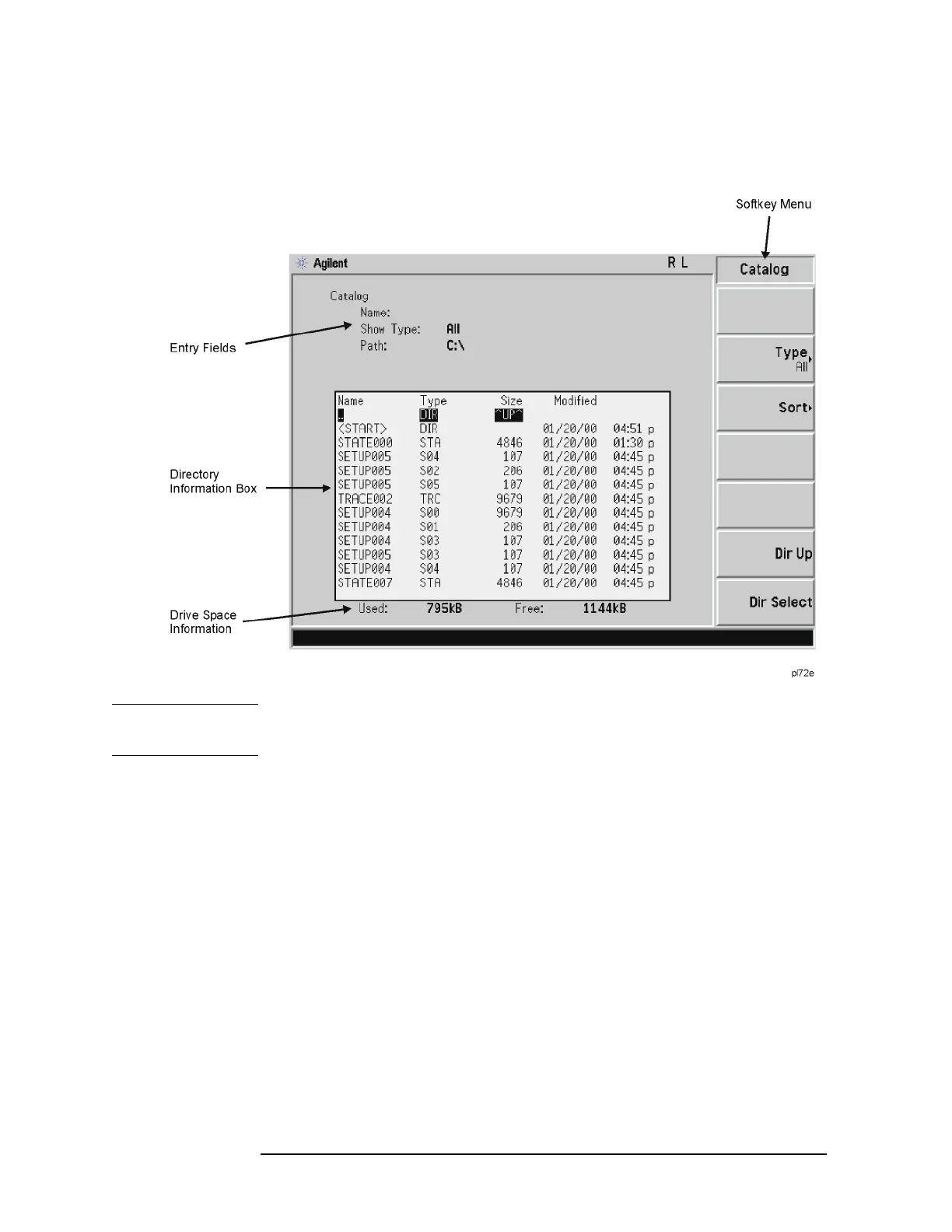

Figure 4-1 Catalog Menu
NOTE Use the front-panel Step Keys or Knob and the Dir Up or Dir Select keys to move
up and down within the directory information box.
1. The entry fields show the parameters for the files viewed. Entry fields that are
being modified or are modifiable are indicated by highlighting (inverse video).
Each file menu function has its own unique set of entry fields pertaining to that
function. Below are the fields listed under the catalog key:
a. Name: field states the filename.
b. Show Type: field displays the type of files viewed.
c. Path: field displays the drive and directory location of the files.
2. The directory information box displays the drives, directories, and/or files
currently described in the entry fields. Highlighting a row of information
selects that location and updates the entry fields. There are four column
headings in this area of the display. They are described as follows:
a. Name: column states the drive ([-A-] or [-C-]) if at the top level on the
drive, directory name, or filename.
