Agilent Technologies E444xAU Option H37 Installation Guide

8 Installation Guide
E444xAU Options H20, H25 and H70 E444xAU IF Output Options
Installation Procedure
6. Remove the rear panel plate by removing the following components. Refer to Figure 5.
• BNC (f) connectors nuts
• SMA connector nut
• thirteen rear plate screws
7. Carefully pull the rear panel plate away from the BNC and SMA connectors. Insure
that the cables are labeled so that the BNC and SMA connectors are inserted into the
correct holes when re-installing them on the new rear panel plate. Discard the old rear
panel plate.

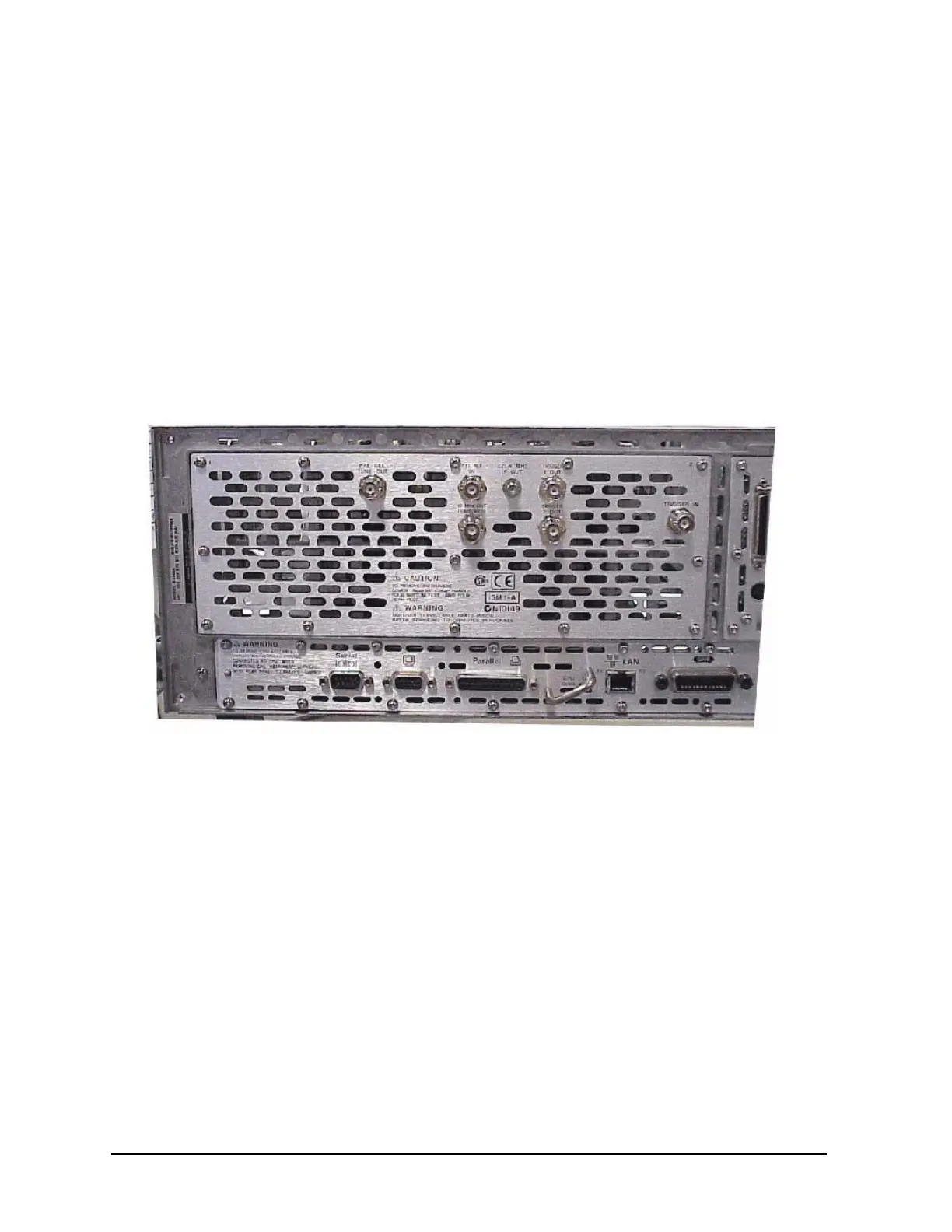

Figure 5 Rear Panel Plate Connectors and Hardware
