Service Guide E8364-90026 3-25
PNA Series Microwave Network Analyzers Tests and Adjustments
E8362B, E8363B, E8364B System Verification
System Verification Procedure
1. Connect a cable to the analyzer as shown in Figure 3-11. If you desire printed test
outputs, connect a printer to the analyzer. For the printer, ensure that the correct driver
is loaded and the printer is defined as the default printer. Refer to the embedded help in
the analyzer for printer setup. Let the analyzer warm up for at least 90 minutes.

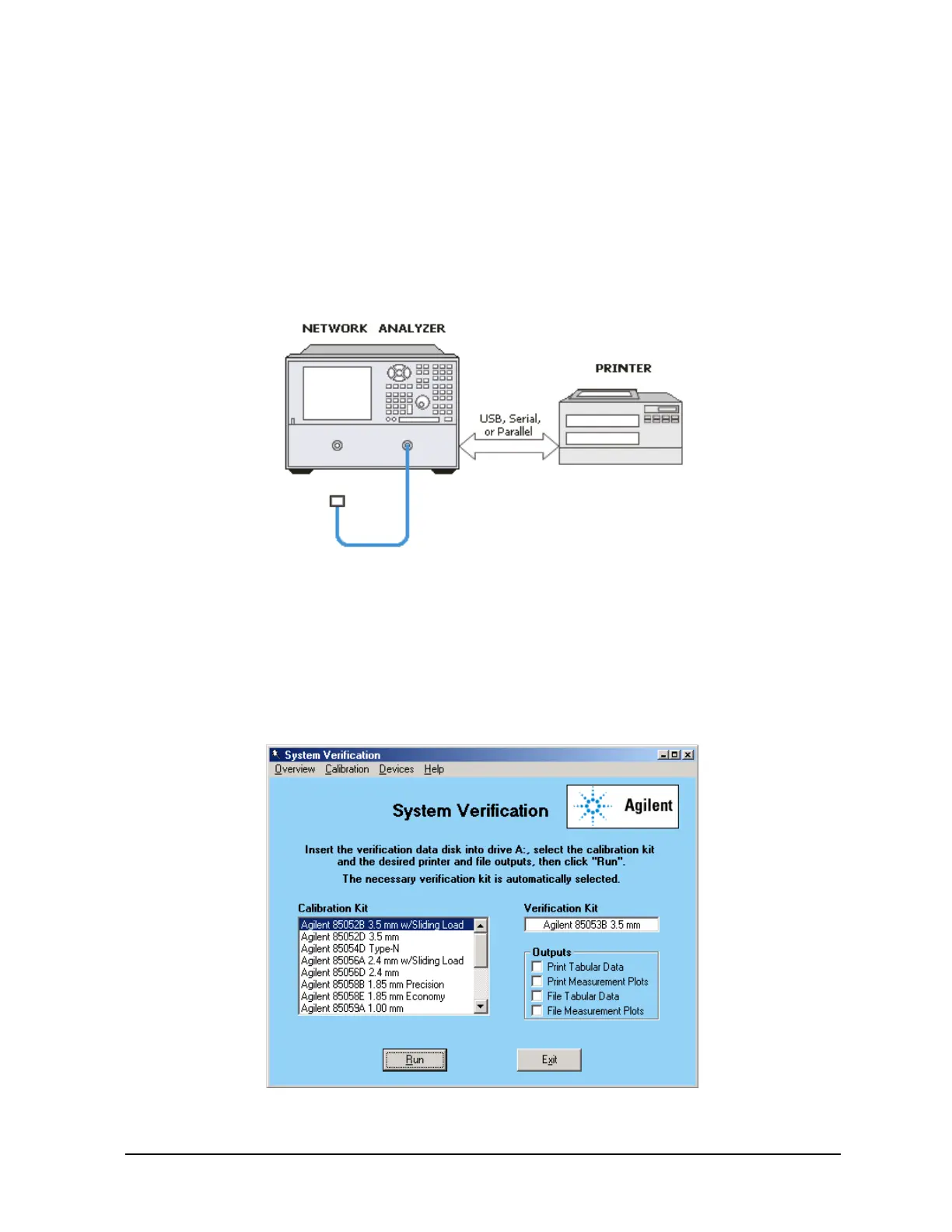

Figure 3-11 System Verification Test Setup
2. Insert the verification kit disk into the analyzer disk drive.
3. On the System menu, point to Service, and then click System Verification. The System
Verification dialog box is displayed; refer to Figure 3-12.
Figure 3-12 System Verification Dialog Box
