Step 9. Lower and Secure the Receiver Deck

Refer to Figure 15 for this procedure.

1. Pull the latch pin (item

②) towards the other side of the analyzer to release the receiver

deck.

2. Lift the receiver deck to partially lower it, then release the latch pin (item

②). Lower the

receiver deck to its fully lowered position and ensure that the latch pin latches in the

lowered position.

3. With a T-10 TORX driver, install the four screws (item

①) to secure the receiver deck.

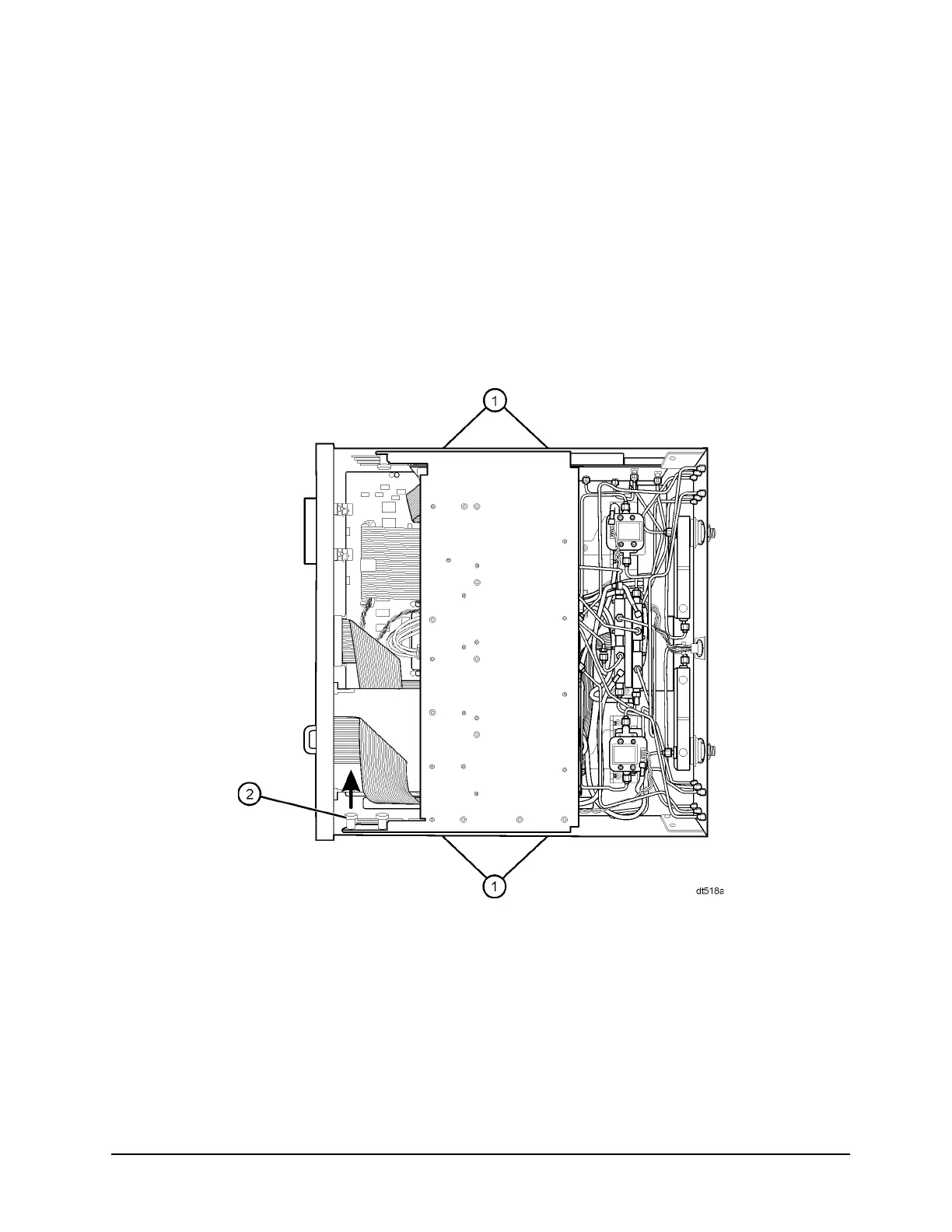

Figure 15 Receiver Deck Lowering

Agilent Technologies E8363B Installation Note
