Agilent Technologies ENA Series

4

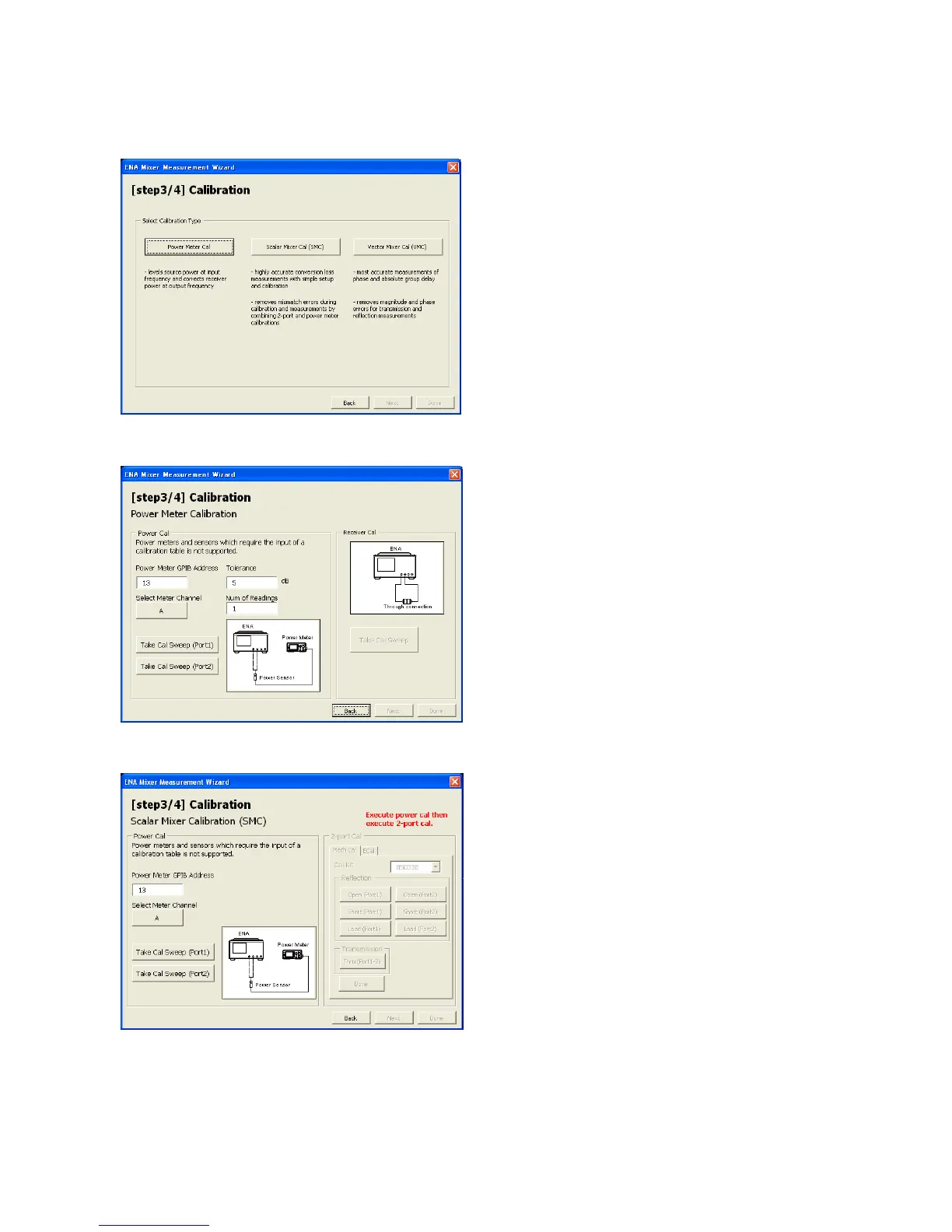

[Step3/4] Calibration type selection
[Step3/4] (1) Power Meter Calibration
[Step3/4] (2) Scalar Mixer Calibration
Select calibration type. Refer to table1 for
available measurement and calibration.
Power meter calibration technique is perfromed
with this form.
Press “Take Cal Sweep” button under “Power cal”
box to calibrate power level of the ENA.
Then, execute receiver calibration with “Take Cal
Sweep” button in the “Receiver Cal” box.
Scalar mixer calibration technique is performed
with this form.
Press “Take Cal Sweep” button under “Power cal”
box to calibrate power level of the ENA.
Then, execute full-2 port calibration
