Agilent Technologies G1329B User Manual

96
7 Maintenance
Simple Repairs
5

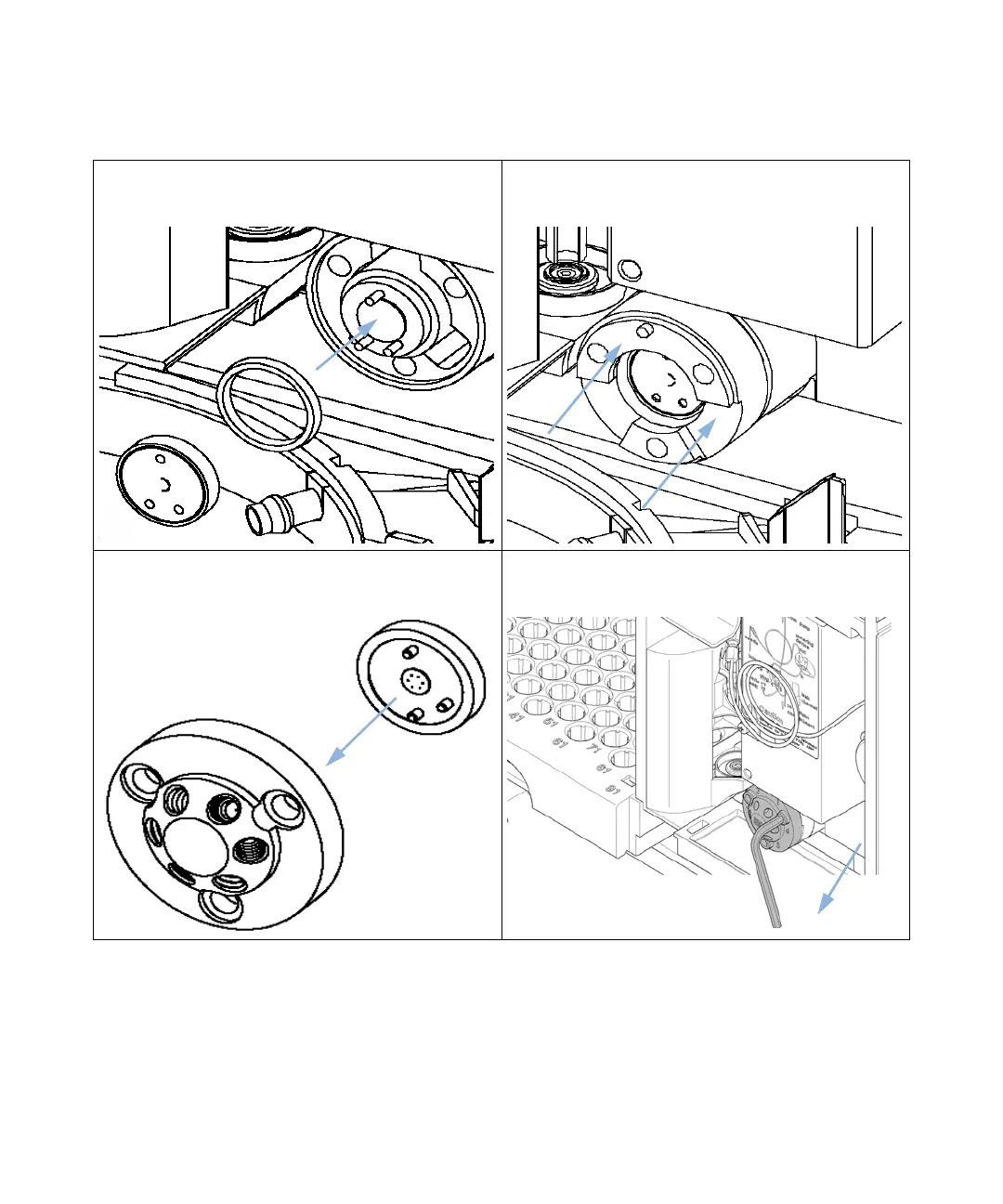

Install the new rotor seal and isolation seal. Ensure the
metal spring inside the isolation seal faces towards the
valve body.
6 Install the stator ring with the short of the two pins facing
towards you at the 12 O’Clock position. Ensure the ring
sits flat on the valve body.
7 Place the stator face in place on the stator head. 8 Install stator head and stator face. Tighten the bolts
alternately two turns at a time until the stator head is
secure.
